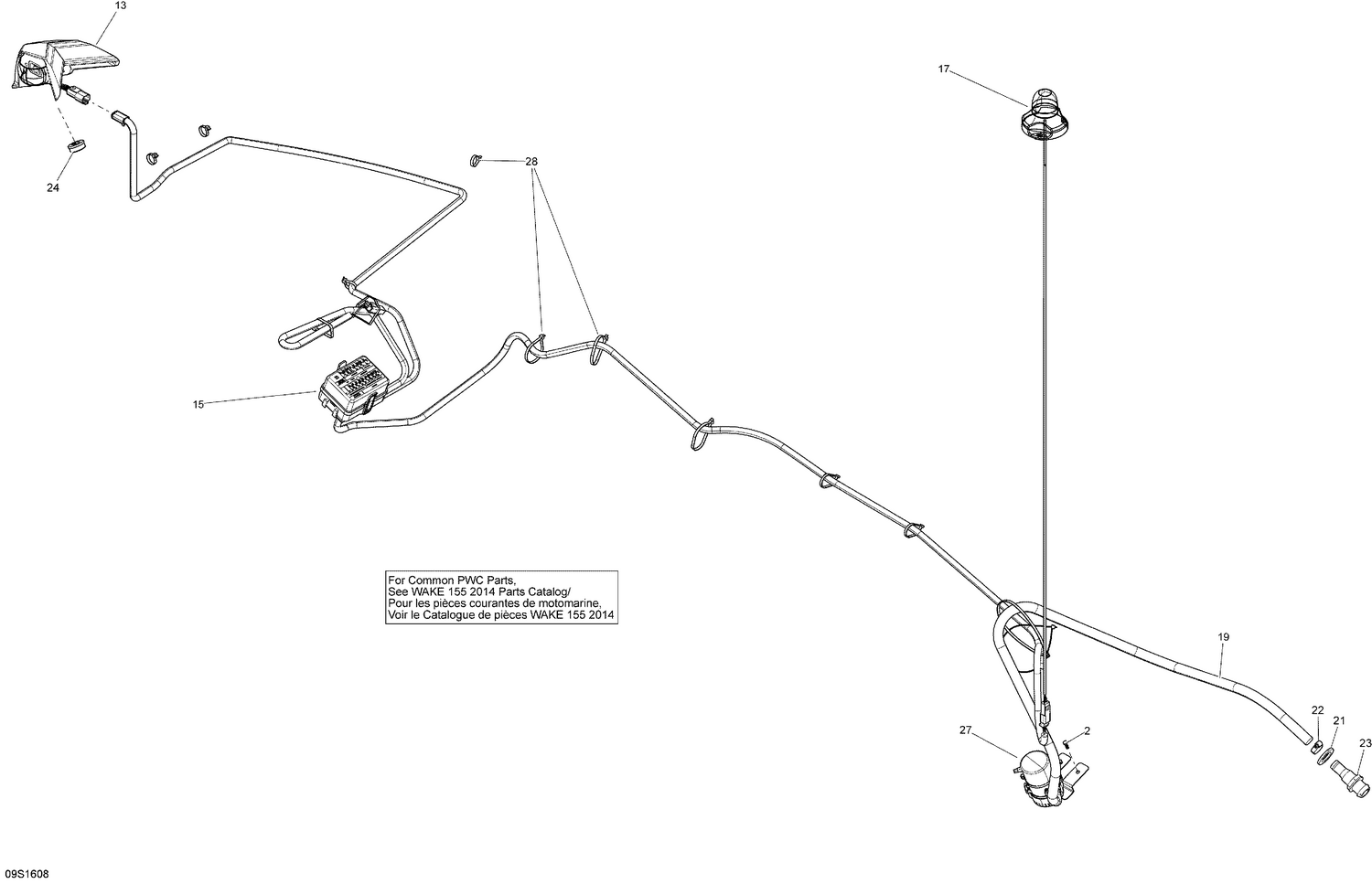

10- Electrical System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 211000106 | HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership |
| 13 | 278003110 | POSITION LIGHT - Call your local BRP dealership |
| 15 | 278003112 | SECONDARY HARNESS - Call your local BRP dealership |
| 17 | 278003182 | Lampe 360 Ass'y |
| 19 | 291002952 | Hose Bilgeflex |
| 21 | 292001486 | Gasket |
| 22 | 293650172 | Tridon Gear Clamp |
| 23 | 293710162 | Fitting This part replaces 293710015. |
| 24 | 293720079 | CABLE GROMMET - Call your local BRP dealership |
| 27 | 295100597 | Bilge Pump |
