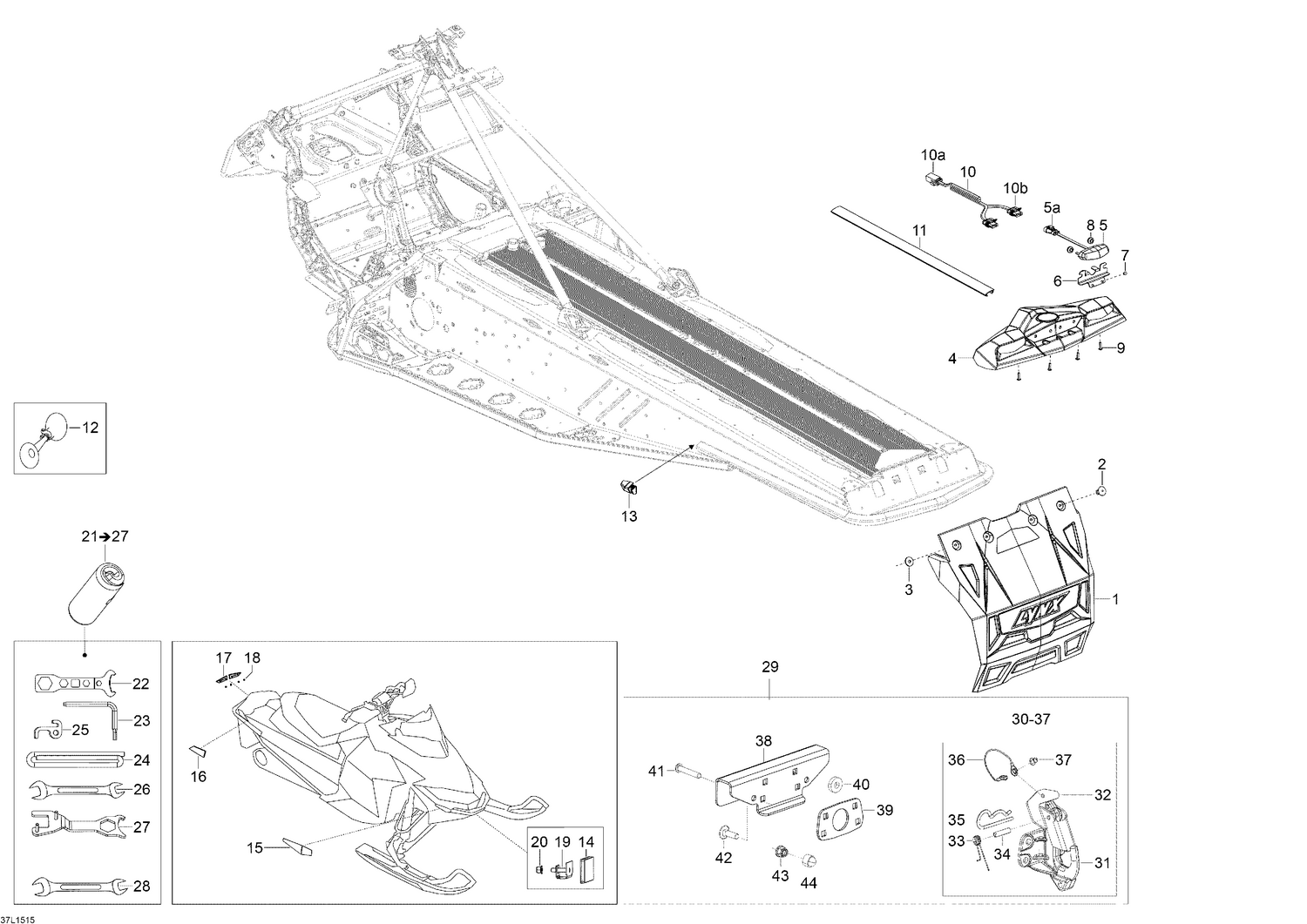

09- Utilities
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001187 | Snow Guard |
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 5a | 278001013 | Wire Seal |
| 5a | 409012900 | Male Terminal |
| 5a | 409013700 | Plug |
| 5a | 710000568 | Male terminal housing |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 520000829 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 10 | 515177517 | Rear Light Harness |
| 10a | 278001013 | Wire Seal |
| 10a | 409013700 | Plug |
| 10a | 515175232 | Male Terminal |
| 10a | 515175494 | Male Housing, 3 Circuits |
| 10a | 515176621 | Wire Seal |
| 10b | 278001014 | Female Terminal |
| 10b | 409209600 | Female Housing, 3 Circuits |
| 11 | 520000829 | Trim |
| 12 | 549011291 | Horn |
| 13 | 520000964 | Cap LH |
| 13 | 520000965 | Cap RH |
| 14 | 21118 | Reflector, Bright |
| 15 | 520001351 | Reflector Front LH |
| 15 | 520001352 | Reflector Front RH |
| 16 | 705007154 | Reflector, Yellow RH |
| 16 | 705007155 | Reflector, Yellow LH |
| 17 | 705007156 | Reflector, Red RH |
| 17 | 705007157 | Reflector, Red LH |
| 18 | 732610072 | Push Nut |
| 19 | 520001452 | Reflector Mount |
| 20 | 233251434 | Flanged Elastic Nut M5 |
| 22 | 520001159 | CLÉ*WRENCH |
| 23 | 520001142 | Key |
| 24 | 412500200 | Starter Rope |
| 25 | 529000060 | Starter Grip |
| 26 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 27 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 28 | 34017 | Wrench 17/19 |
| 30 | Not | Available As Spare Part - Hitch Ass´y |
| 31 | Not | Available As Spare Part - Hook |
| 32 | 520001041 | LOCKING PLATE - Call your local BRP dealership |
| 33 | 545693 | SPRING - Call your local BRP dealership |
| 34 | 41012 | Spring Pin |
| 35 | 41029 | Cotter Pin |
| 36 | 293750069 | Retainer Cable This part replaces 5446839. |
| 37 | 390909100 | Avex Rivet |
| 38 | Not | Available As Spare Part - Hitch Support |
| 39 | Not | Available As Spare Part - Hitch Fastening Plate |
| 40 | 520001288 | Sleeve |
| 41 | 205484546 | Socket Screw M8 x 45 |
| 42 | 207782544 | Carriage Bolt M8 x 25 |
| 43 | 233281414 | Hex. Flange Elastic Nut M8 |
