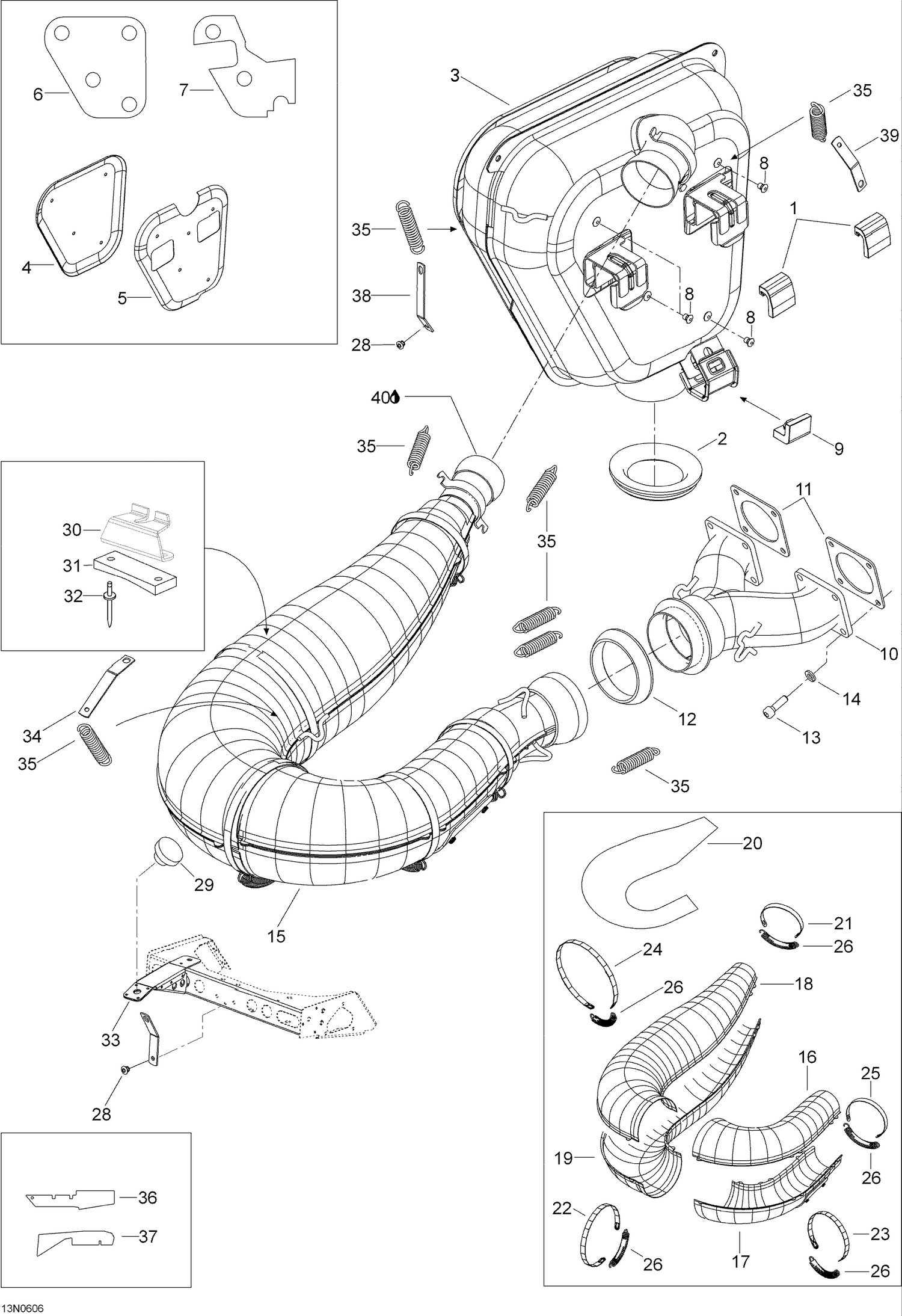

01- Exhaust System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053372 | UPPER STOPPER - Call your local BRP dealership |
| 2 | 514053394 | Exhaust grommet |
| 4 | 514053139 | RH HEAT SHIELD - Call your local BRP dealership |
| 5 | 514053883 | L.H. Heat shield |
| 6 | 514053141 | RH INSULATING WOOL - Call your local BRP dealership |
| 7 | 514053884 | LH INSULATING WOOL - Call your local BRP dealership |
| 8 | 390910000 | Rivet |
| 9 | 514054223 | LOWER STOPPER - Call your local BRP dealership |
| 10 | 420973557 | MANIFOLD - Call your local BRP dealership |
| 11 | 420850552 | Gasket |
| 12 | 514053487 | Exhaust Gasket |
| 13 | 40052 | Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 14 | 20052 | Lock washer A6 |
| 16 | 514053151 | Upper front half-enveloppe |
| 17 | 514053152 | Lower inferior half-enveloppe ass'y |
| 18 | 514053475 | Upper rear half-enveloppe |
| 19 | 514053476 | Lower rear half-enveloppe ass'y |
| 20 | 514053558 | Insulating wool |
| 21 | 514053437 | RETAINING STRAP - Call your local BRP dealership |
| 22 | 514053534 | RETAINING STRAP - Call your local BRP dealership |
| 23 | 514053499 | Retaining strap |
| 24 | 514053605 | RETAINING STRAP - Call your local BRP dealership |
| 25 | 514053494 | RETAINING STRAP - Call your local BRP dealership |
| 26 | 514053643 | Spring |
| 27 | 605451629 | Spring bracket |
| 28 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 29 | 514053654 | Rubber Bumper |
| 30 | 605454111 | Bracket |
| 31 | 514053352 | BUMPER - Call your local BRP dealership |
| 32 | 36037 | Rivet |
| 33 | 605354542 | Bracket, lower |
| 34 | 605454472 | Bracket, upper |
| 35 | 415107100 | Spring |
| 36 | 514053702 | REFLECTION SHEET - Call your local BRP dealership |
| 37 | 514053622 | Reflection sheet |
| 38 | 514053393 | Spring bracket |
| 39 | 514053436 | Spring bracket |
