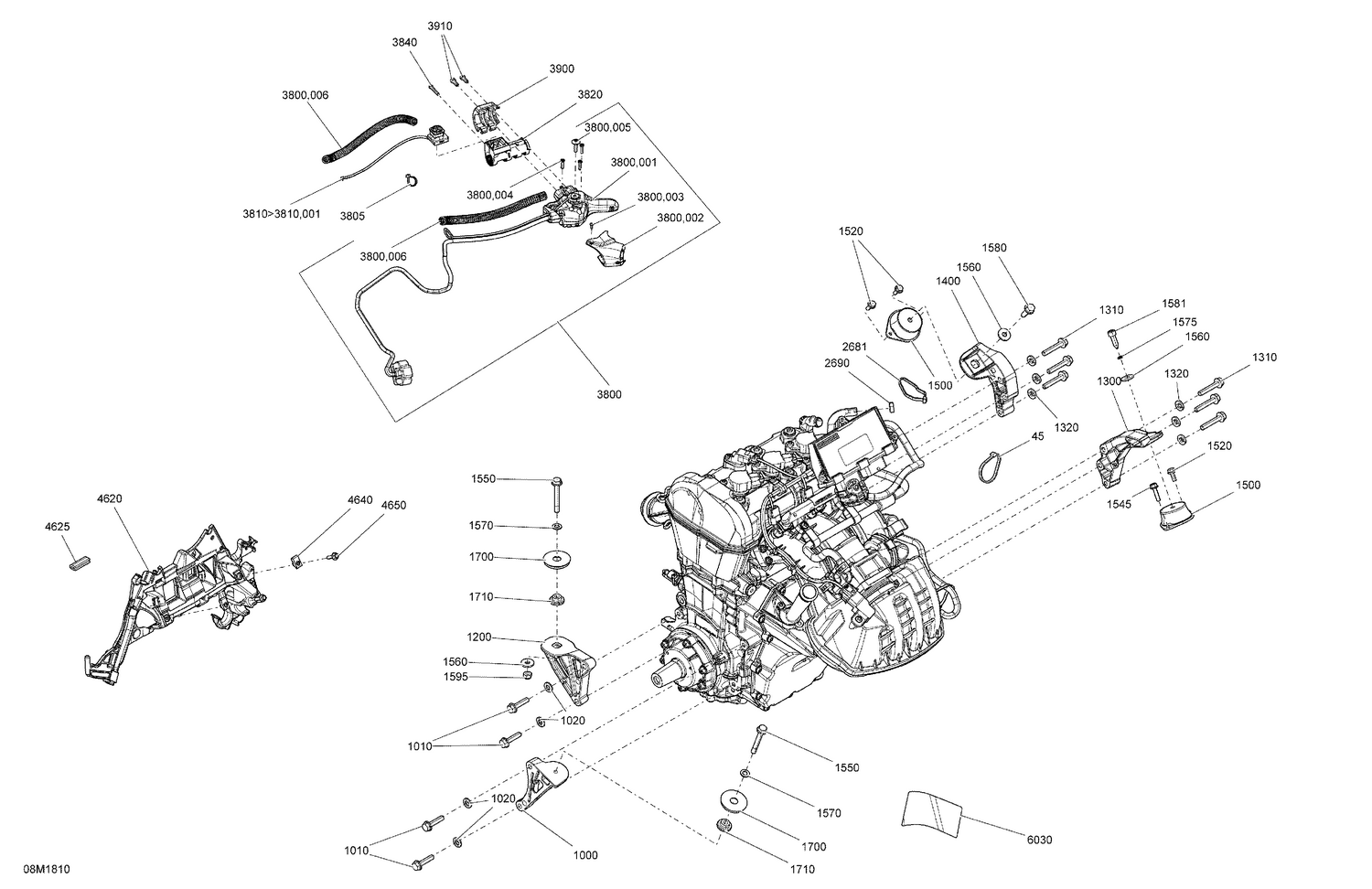

| Ref | Part Number | Description |
|---|
| 45 |
414115200 |
Tie-Rap 180 mm |
| 1000 |
512061139 |
Rear Support PTO |
| 1020 |
250200146 |
Conical Spring Washer M8 |
| 1200 |
512061140 |
Front Support PTO |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1300 |
512061142 |
Rear Support MAG |
| 1310 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 1320 |
250200157 |
Conical Spring Washer M8 |
| 1400 |
512061141 |
Front Support MAG |
| 1410 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 1420 |
250200157 |
Conical Spring Washer M8 |
| 1500 |
512060729 |
Rubber Mount |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1540 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1545 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 1550 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1575 |
293300123 |
O-Ring |
| 1580 |
250000257 |
Cone Screw, M8 X 30 |
| 1581 |
250000639 |
Cone Screw, M8 X 25 |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061536 |
Engine Stopper This part replaces 512060826. |
| 1710 |
512060285 |
Spacer |
| 2680 |
414115200 |
Tie-Rap 180 mm |
| 2681 |
293750008 |
Tie Wrap 368 mm |
| 2690 |
293650025 |
Oetiker Gear Clamp |
| 3805 |
293750002 |
Tie Wrap 142 mm |
| 3820 |
512061453 |
Switch Support This part replaces 512060844. |
| 3830 |
515177716 |
Protector Tube |
| 3840 |
250000263 |
Torx Screw #8-18 |
| 3900 |
512060987 |
Front Housing |
| 3910 |
250000632 |
Torx Screw M5 X 14 |
| 4620 |
512060994 |
Module Support |
| 4625 |
219704354 |
Trim 1000Mm Long |
| 4630 |
293750008 |
Tie Wrap 368 mm |
| 4640 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 4650 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
