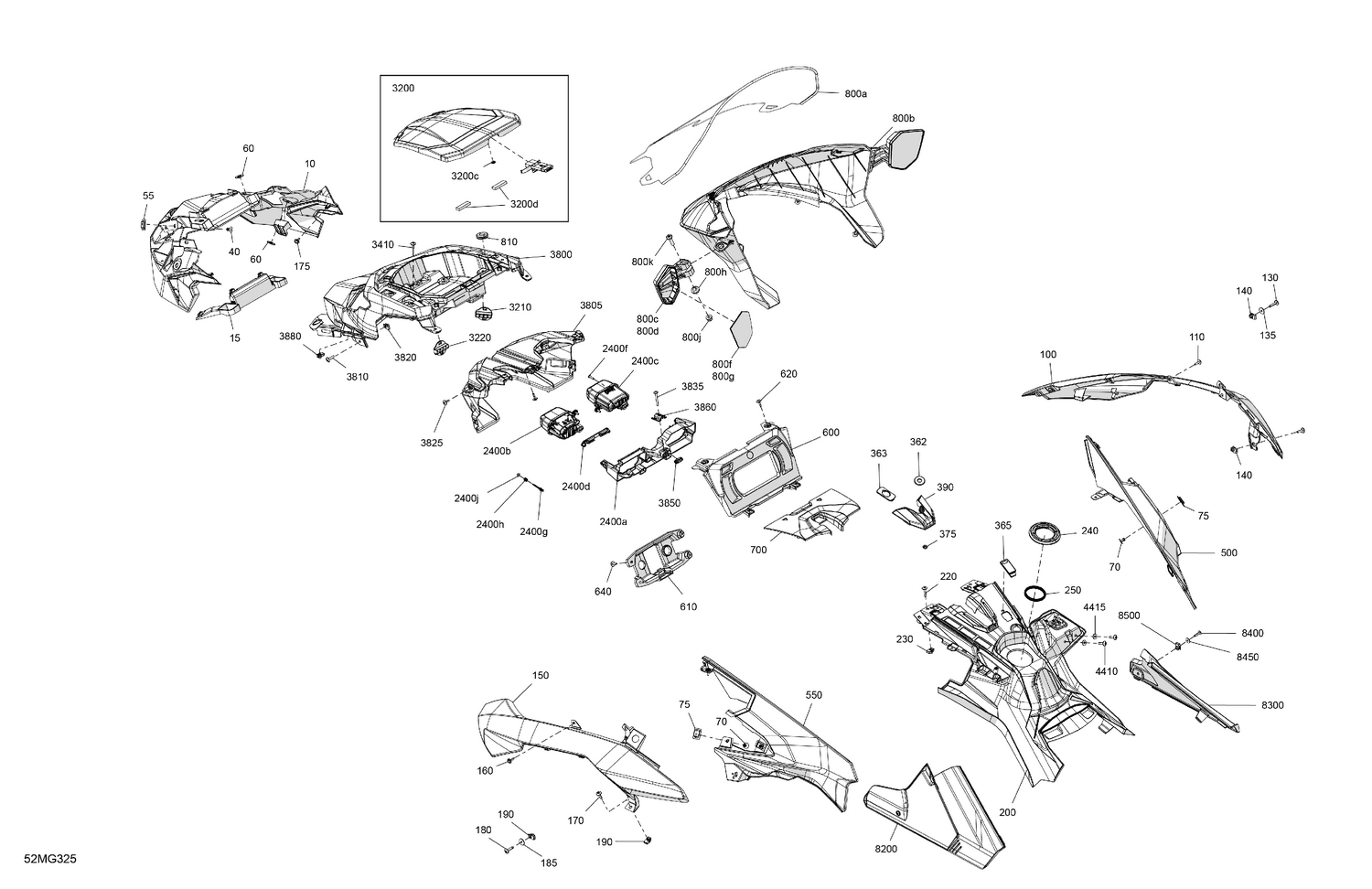

07- Body - Hood
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517308030 | Center Hood |
| 15 | 517308961 | Central Duct |
| 40 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 70 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 75 | 517305109 | Rivet Plate |
| 100 | 517307746 | Deep Black, RH Front Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517307747 | Deep Black, LH Front Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 175 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517309674 | Deep Black, Rear Console |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309824 | Round Slotted Nut |
| 250 | 517309450 | Gasket |
| 362 | 517307261 | Brake Switch Adapter |
| 363 | 517307262 | Ignition Switch Adapter |
| 365 | 517308261 | Cap |
| 375 | 250100163 | Pressure Nut |
| 390 | 517309557 | Connecting Plate |
| 500 | 517309944 | RH Hood |
| 550 | 517310075 | LH Hood |
| 600 | 517307734 | Gauge Support |
| 610 | 515179104 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 640 | 250000725 | Screw M4 X 16 |
| 700 | 517308427 | Access Cover |
| 800a | 517309677 | Windshield |
| 800b | 517309678 | Windshield Support |
| 800c | 517309981 | LH Rear-View Mirror Housing |
| 800d | 517309982 | RH Rear-View Mirror Housing |
| 800f | 517309983 | LH Rear-View Mirror |
| 800g | 517309984 | RH Rear-View Mirror |
| 800h | 293720130 | Overmolded Grommet |
| 800j | 233281466 | Elastic Flange Nut M8 |
| 800k | 250001060 | Screw-Pan HD.Torx M8X30 |
| 810 | 517303756 | Grommet |
| 2400a | 517309051 | Headlight Support |
| 2400b | 710008089 | Low Beam Light |
| 2400c | 710006910 | HIgh Beam Light |
| 2400d | 517309049 | Support Pivot |
| 2400f | 250000759 | Torx Truss Pt K40 X 16 |
| 2400g | 517309133 | Threaded Rod |
| 2400h | 517309058 | Compression Spring |
| 2400j | 517309134 | Specialized Nut |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3210 | 517308260 | Box Cap |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3800 | 517308377 | Upper Fairing |
| 3805 | 517308714 | Headlight Trim |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3825 | 250000889 | Screw M4 X 16 |
| 3835 | 250001286 | Torx Screw M5 X 40 |
| 3850 | 517308229 | Molded Housing Nut |
| 3860 | 517309293 | Clip |
| 3880 | 250000958 | Panel Nut M5 X 0.8 |
| 4410 | 250000528 | Torx Screw M5 X 20 |
| 4415 | 234052670 | Stainless Steel Flat Washer M5 |
| 8200 | 517309954 | LH Chassis Trim |
| 8300 | 517309955 | RH Chassis Trim |
| 8400 | 250000715 | Torx Truss Screw M5 X 20 |
| 8450 | 234052670 | Stainless Steel Flat Washer M5 |
