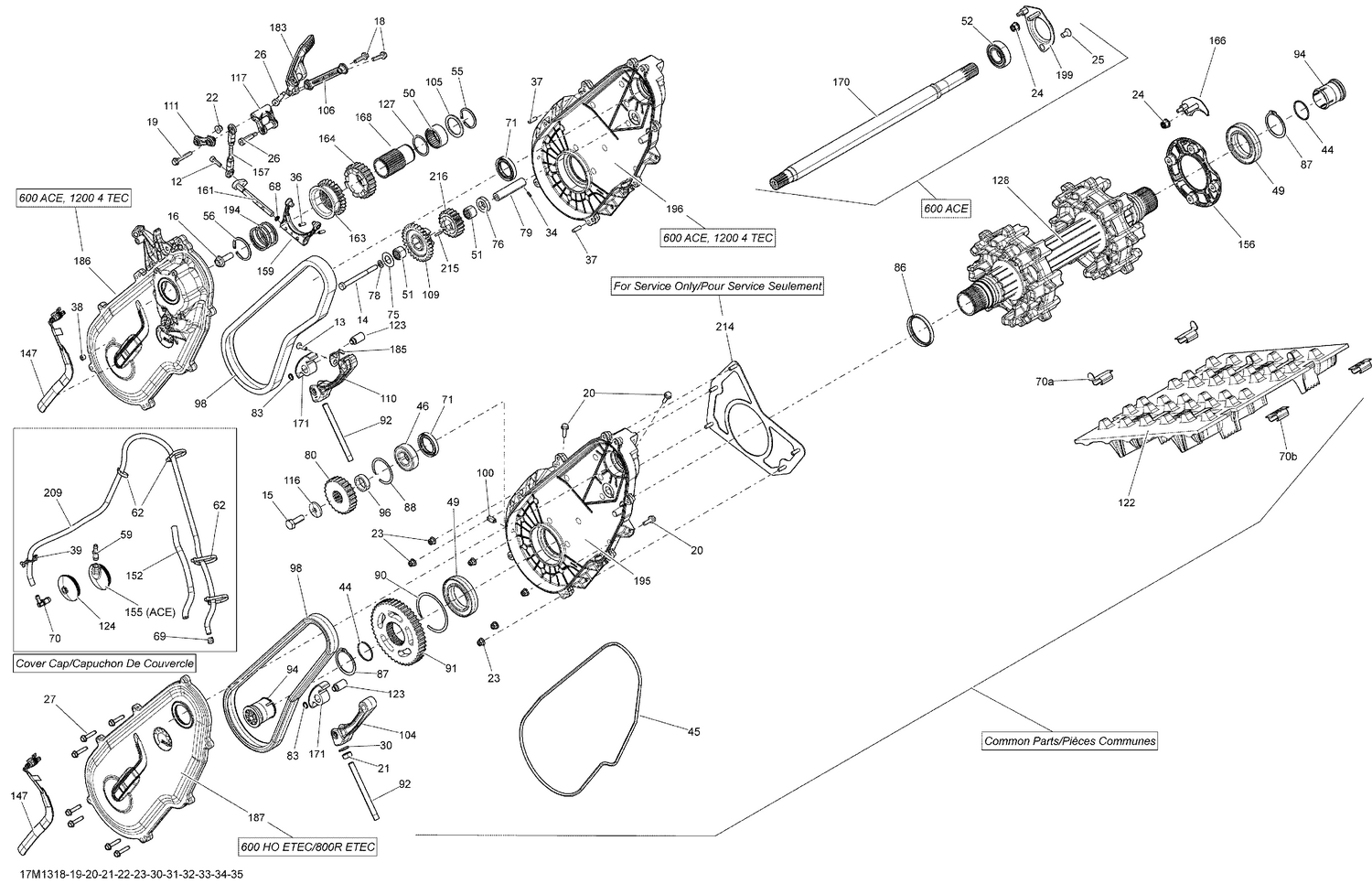

| Ref | Part Number | Description |
|---|
| 12 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 13 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 14 |
207089044 |
Hex. Screw M8 X 90 |
| 15 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 16 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip |
| 20 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 21 |
232006414 |
Hex. Nut M10 X 1.5 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
233261434 |
Flange Elastic Nut M6 |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 30 |
250200100 |
Bonded Washer |
| 34 |
250400010 |
Rolled Pin M3 X 10 |
| 36 |
250400045 |
Spring Pin M5 X 16 |
| 37 |
250400048 |
Dowel Pin |
| 38 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 39 |
291000714 |
ATTACHE *BRACKET - Call your local BRP dealership |
| 44 |
293300122 |
O-Ring |
| 45 |
293300130 |
Tight Seal |
| 46 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 49 |
293350059 |
Ball Bearing |
| 50 |
293350063 |
Needle Bearing |
| 51 |
293350064 |
Needle Bearing |
| 52 |
XXX |
Not Available As Spare Parts |
| 55 |
293370054 |
Circlip |
| 56 |
293370055 |
Circlip |
| 59 |
XXX |
Not Available As Spare Parts |
| 62 |
414115200 |
Tie-Rap 180 mm |
| 68 |
414484400 |
O-Ring |
| 69 |
414554800 |
Spring Clamp |
| 70 |
XXX |
Not Available As Spare Parts |
| 70a |
415129528 |
Track Guide |
| 70b |
504152651 |
Cleat |
| 75 |
504077300 |
Spacer |
| 76 |
504078700 |
Ring |
| 78 |
504082900 |
Washer |
| 79 |
504083100 |
Reverse Shaft |
| 80 |
XXX |
Not Available As Spare Parts |
| 83 |
504152282 |
Circlip |
| 86 |
293200159 |
Oil Seal This part replaces 504152571. |
| 87 |
504152572 |
Circlip |
| 88 |
504152576 |
Circlip |
| 90 |
504152582 |
Circlip |
| 91 |
861805538 |
Kit Sprocket This part replaces 504152593. |
| 92 |
504152602 |
Adjustment Screw |
| 94 |
504152619 |
Magnetic Cap |
| 96 |
XXX |
Not Available As Spare Parts |
| 98 |
504152629 |
Drive Chain, 104 Links |
| 105 |
504152689 |
Washer |
| 106 |
504152710 |
Double Ball Joint |
| 109 |
504152724 |
Sprocket, 29 Teeth |
| 110 |
504153431 |
Chaine Tensionner This part replaces 504152748. |
| 111 |
504152766 |
Double Ball Joint |
| 116 |
XXX |
Not Available As Spare Parts |
| 117 |
504153427 |
Lever This part replaces 504152788. |
| 122 |
504152734 |
Track Ass'y, 16X137X1.2RS |
| 122 |
504152803 |
Track Ass'y 16" X 137" X 1.7" |
| 122 |
504154373 |
Track 15 X 137 X 1,25 This part replaces 504153101. |
| 123 |
504152841 |
Tensioner Axle |
| 124 |
XXX |
Not Available As Spare Parts |
| 127 |
504152862 |
Washer |
| 128 |
504154054 |
Drive Axle Ass'y This part replaces 504153083. |
| 147 |
504152896 |
Rotation Sensor |
| 152 |
504153074 |
Tube Protector This part replaces 504152900. |
| 156 |
504153886 |
Retaining Ring This part replaces 504152949. |
| 157 |
504152951 |
Ball Joint |
| 159 |
504153432 |
Fork Ass'y This part replaces 504152954. |
| 161 |
504152956 |
Welded Axle Fork |
| 163 |
504152960 |
Slinding Gear, 27 Teeth |
| 164 |
504152961 |
Sprocket, 24 Teeth |
| 166 |
504153418 |
Bearing Housing Ass'y This part replaces 504152974. |
| 168 |
504152979 |
Coupling |
| 170 |
XXX |
Not Available As Spare Parts |
| 171 |
504152739 |
Slider Chain This part replaces 504153031. |
| 183 |
504153082 |
Grip |
| 185 |
504153122 |
Chain Slider |
| 187 |
XXX |
Not Available As Spare Parts |
| 195 |
XXX |
Not Available As Spare Parts |
| 196 |
504153407 |
Chaincase This part replaces 504153183. |
| 199 |
XXX |
Not Available As Spare Parts |
| 209 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 214 |
518325816 |
Plate |
| 215 |
570048600 |
Alignement Rod |
| 216 |
581096900 |
Sprock Ass'y, 19 Teeth |
