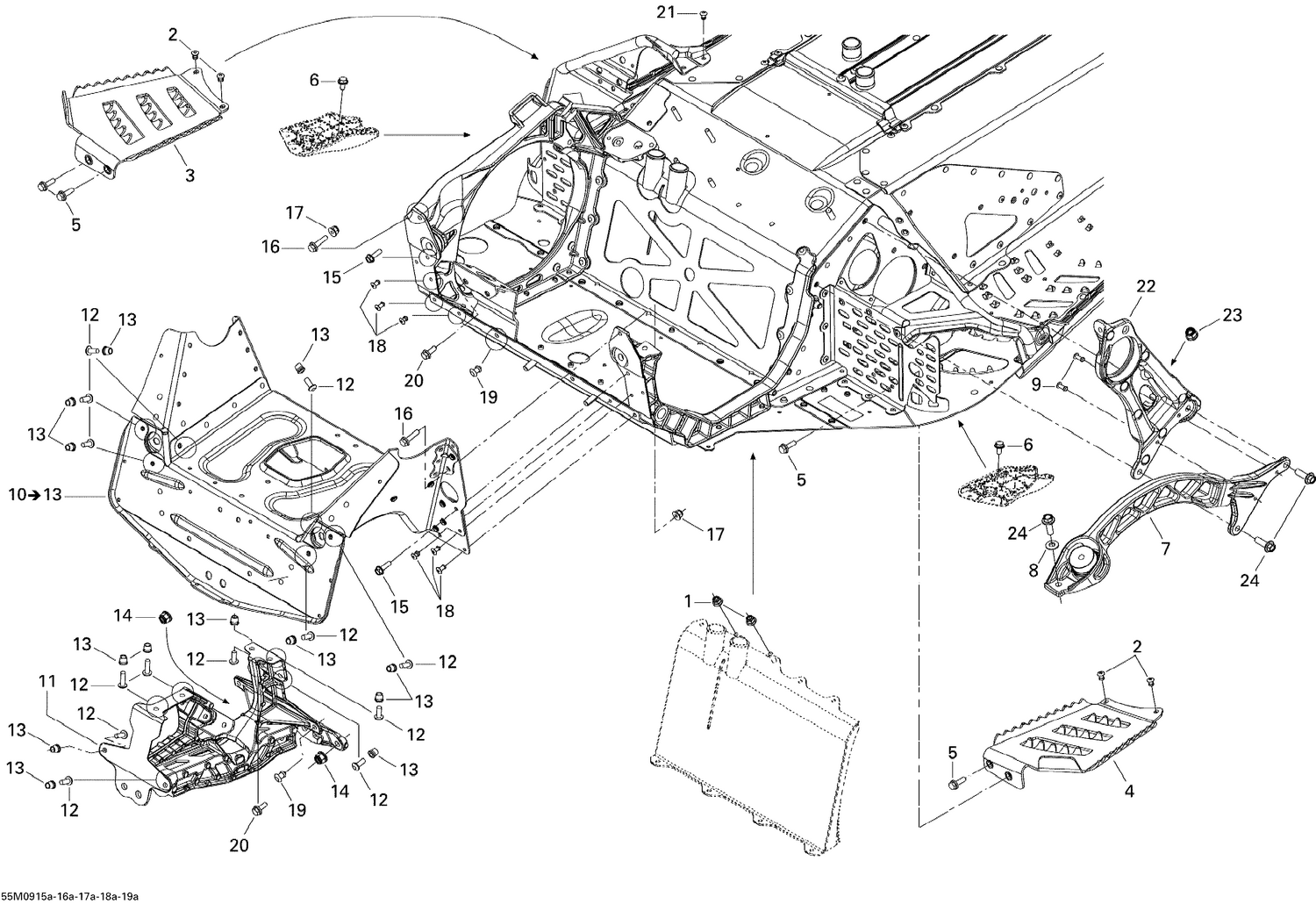

| Ref | Part Number | Description |
|---|
| 1 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2 |
293150102 |
Rivet 3/16" |
| 3 |
518327812 |
RH. FOOTREST - Call your local BRP dealership This part replaces 518325840. |
| 4 |
518327813 |
LH. Footrest This part replaces 518325841. |
| 5 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 6 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 7 |
518327392 |
Brace Ass'y This part replaces 518325005. |
| 8 |
234281474 |
Conical Spring Washer M8 |
| 9 |
390407200 |
Pop Rivet 3/16” |
| 11 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 16 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
293150144 |
Stavex Rivet |
| 19 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 20 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 21 |
390909100 |
Avex Rivet |
| 22 |
518327460 |
Driven Pulley Support This part replaces 518325933. |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
