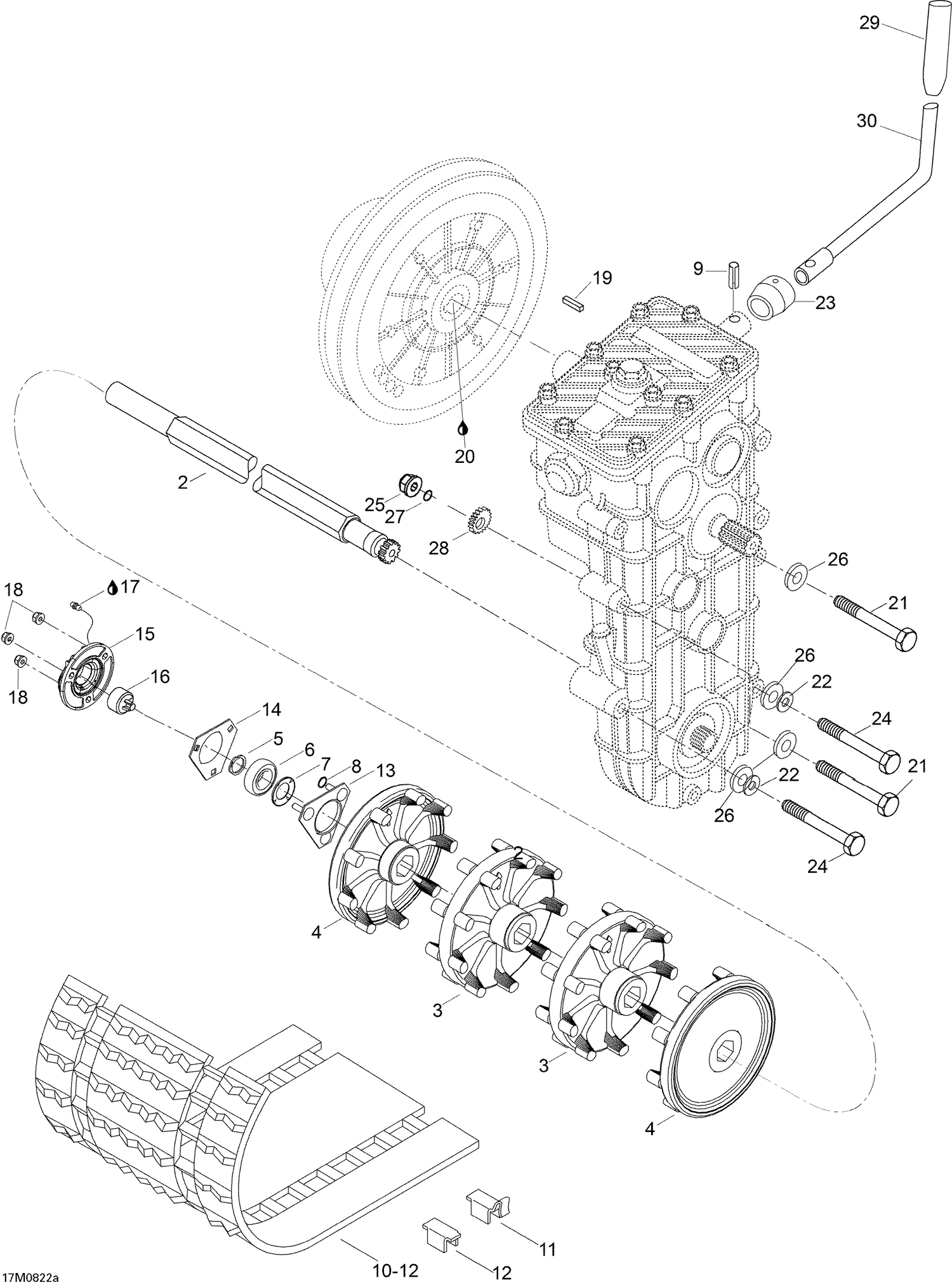

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
605249972 |
DRIVE AXLE - Call your local BRP dealership |
| 3 |
414931800 |
SPROCKET - Call your local BRP dealership |
| 4 |
415067400 |
HALF SPROCKET - Call your local BRP dealership |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
414484400 |
O-Ring |
| 9 |
M41008 |
Pin Spring |
| 11 |
M5318323 |
CLEAT-GUIDE - Call your local BRP dealership |
| 12 |
M5318322 |
CLEAT - Call your local BRP dealership |
| 13 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 14 |
501025000 |
FLANGE - Call your local BRP dealership |
| 15 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 16 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 17 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 19 |
619690074 |
KEY - Call your local BRP dealership This part replaces M418763. |
| 20 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 21 |
M40012 |
Screw M8 X 80 |
| 22 |
234081410 |
Flat Washer 8 mm |
| 23 |
M5446699 |
SLEEVE - Call your local BRP dealership |
| 24 |
M40089 |
Screw |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
234082410 |
Flat Washer 8 mm This part replaces M20010. |
| 27 |
506151140 |
O-RING - Call your local BRP dealership |
| 28 |
605454017 |
TOOLS - Call your local BRP dealership |
| 29 |
28247 |
Shift button This part replaces M28247. |
