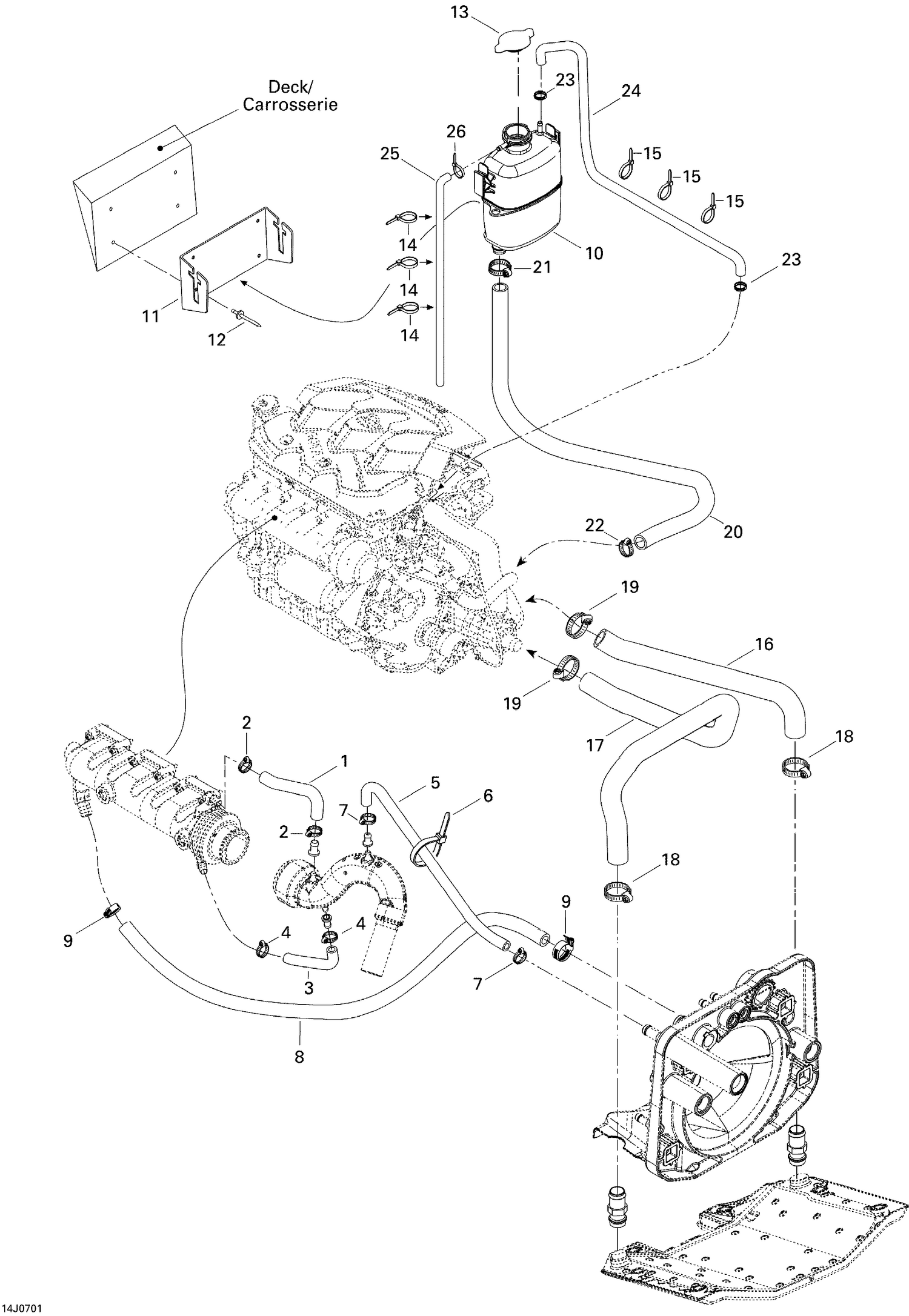

01- Cooling System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000155 | Formed Hose |
| 2 | 293650172 | Tridon Gear Clamp |
| 3 | 276000156 | FORMED HOSE - Call your local BRP dealership |
| 4 | 293650172 | Tridon Gear Clamp |
| 5 | 219704394 | Was 276000001 Hose 12.5 mm |
| 6 | 293750008 | Tie Wrap 368 mm |
| 7 | 293650172 | Tridon Gear Clamp |
| 8 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 9 | 293650051 | Tridon Gear Clamp |
| 10 | 276000086 | Coolant Tank |
| 11 | 204300165 | Coolant Tank Bracket |
| 12 | 293150039 | Pop Rivet 3/16" |
| 13 | 276000100 | Pressure Cap |
| 14 | 293750002 | Tie Wrap 142 mm |
| 15 | 293750002 | Tie Wrap 142 mm |
| 16 | 276000248 | RH Radiator Hose This part replaces 276000153. |
| 17 | 276000490 | LH Radiator Hose This part replaces 276000154. |
| 18 | 293650045 | Tridon Gear Clamp |
| 19 | 293650045 | Tridon Gear Clamp |
| 20 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 21 | 293650051 | Tridon Gear Clamp |
| 22 | 293650019 | Tridon Gear Clamp |
| 23 | 293650025 | Oetiker Gear Clamp |
| 24 | 204300184 | HOSE 1/4 - Call your local BRP dealership |
| 25 | 219704410 | Polyurethane Hose 10000Mm Long |
