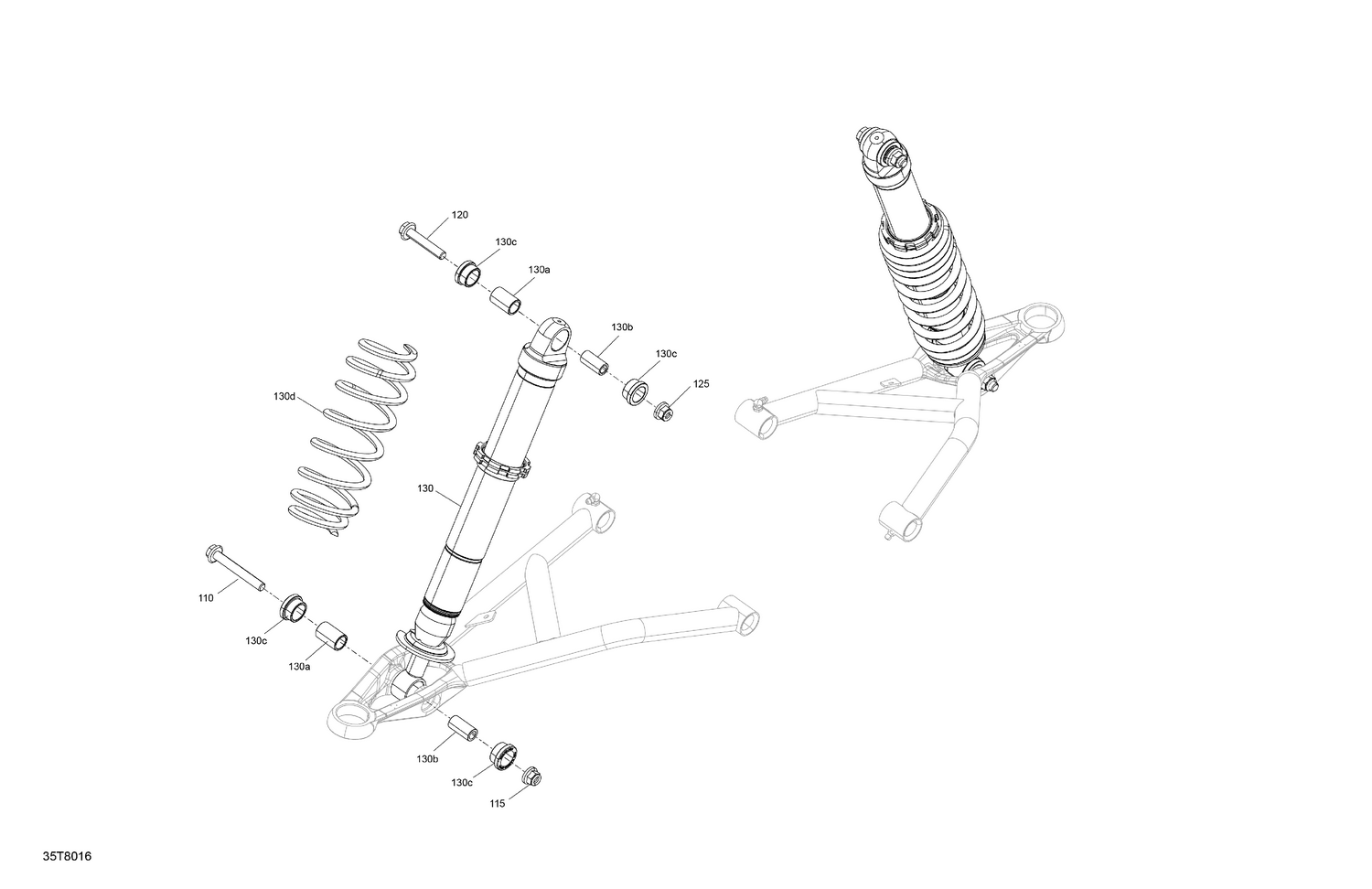

05- Suspension - Front Shocks

05- Suspension - Front Shocks

Parts (7)

RefPart NumberDescription
110 250001038 Hex. Flange Screw M10 X 75
115 233201436 Hex. Flange Elastic Nut M10
120 207605546 Hex. Flange Screw M10 X 55
125 233201436 Hex. Flange Elastic Nut M10
130a 706201584 Bushing
130b 706201586 Bushing Sleeve
130c 706201585 Bushing Sleeve
