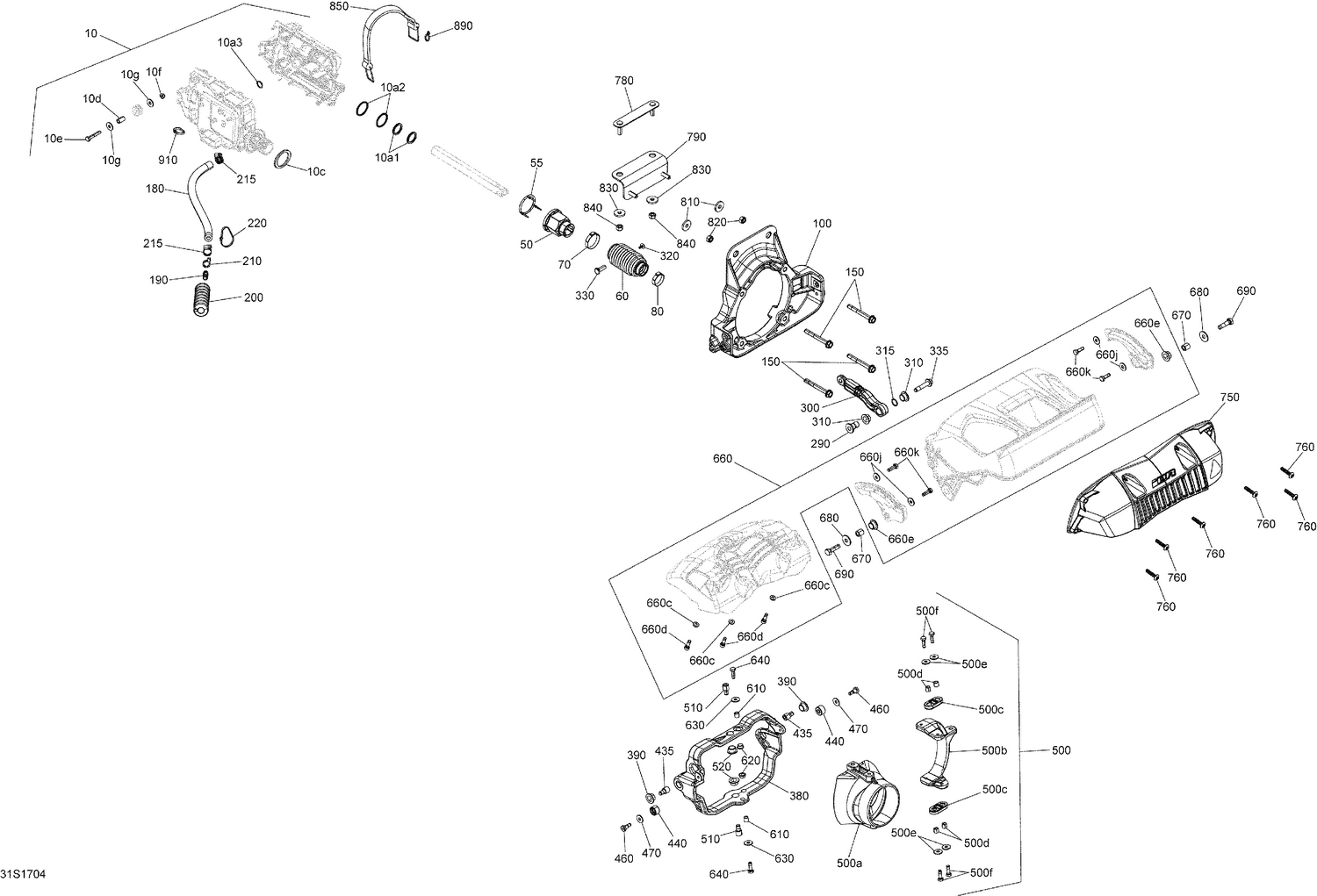

| Ref | Part Number | Description |
|---|
| 10a1 |
279000108 |
O-Ring |
| 10a2 |
293300107 |
O-Ring |
| 10a3 |
293300187 |
O-Ring |
| 10c |
268000208 |
Gasket |
| 10d |
271001020 |
Spacer |
| 10e |
207063560 |
Hex. Screw M6 X 35 |
| 10f |
232561200 |
Brass Elastic Stop Nut M6 |
| 10g |
234062600 |
Flat Washer M6, Stainless |
| 50 |
268000308 |
IBR Nut This part replaces 268000267. |
| 55 |
277001977 |
Rubber Gasket |
| 60 |
268000186 |
Boot |
| 70 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 80 |
293650099 |
Crimp Clamp |
| 100 |
268000266 |
Bracket |
| 150 |
250000835 |
Screw-Hex.Flange DIN.6921 S.Grip |
| 180 |
219704420 |
Was 509000407 Hose 8 mm |
| 190 |
293710157 |
Fitting-Straig |
| 200 |
268000211 |
Inner Boot |
| 210 |
293750002 |
Tie Wrap 142 mm |
| 215 |
293650171 |
Tridon Gear Clamp |
| 220 |
293750002 |
Tie Wrap 142 mm |
| 290 |
268000269 |
Bushing |
| 300 |
268000256 |
Linkage Arm |
| 310 |
293900007 |
Venturi Bushing |
| 315 |
293300187 |
O-Ring |
| 320 |
250000565 |
Hexalob Screw M4 X 10 |
| 330 |
268000309 |
Shoulder Pin This part replaces 268000207. |
| 335 |
250000834 |
Hex. Screw Flange DIN.6921 S.Grip |
| 380 |
268000247 |
Trimming Ring |
| 390 |
293900007 |
Venturi Bushing |
| 435 |
250000837 |
Screw Socket S.Grip |
| 440a |
250000775 |
Screw-Socket Shoulder M8X8 |
| 460 |
250000775 |
Screw-Socket Shoulder M8X8 |
| 470 |
234062600 |
Flat Washer M6, Stainless |
| 500a |
267000727 |
Jet Pump Nozzle |
| 500b |
268000148 |
Nozzle Lever, Black |
| 500c |
268000058 |
Direction Lever Arm |
| 500d |
268000060 |
Spacer |
| 500e |
234062600 |
Flat Washer M6, Stainless |
| 500f |
250000891 |
Scotch Grip Hexagonal Screw M6 X 20 |
| 510 |
250000837 |
Screw Socket S.Grip |
| 520 |
293900007 |
Venturi Bushing |
| 610 |
268000060 |
Spacer |
| 620 |
268000059 |
Bushing |
| 630 |
234062600 |
Flat Washer M6, Stainless |
| 640 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 660c |
234061600 |
Stainless Flat Washer M6 |
| 660d |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 660e |
293900007 |
Venturi Bushing |
| 660j |
234062600 |
Flat Washer M6, Stainless |
| 660k |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 670 |
271001039 |
Spacer |
| 680 |
234082600 |
Flat Washer 8 mm, Stainless |
| 690 |
250000526 |
Hex. Screw M8 X 30, Scotch Grip |
| 750 |
268000162 |
Guard |
| 760 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 780 |
268000271 |
Ass'y Bracket |
| 790 |
268000304 |
Reverse Bracket |
| 810 |
279000336 |
Flat Washer This part replaces 279000164. |
| 820 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 830 |
279000336 |
Flat Washer This part replaces 279000164. |
| 840 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 850 |
293850123 |
Fuel Tank Strap |
| 890 |
293750001 |
Tie Wrap 94 mm |
