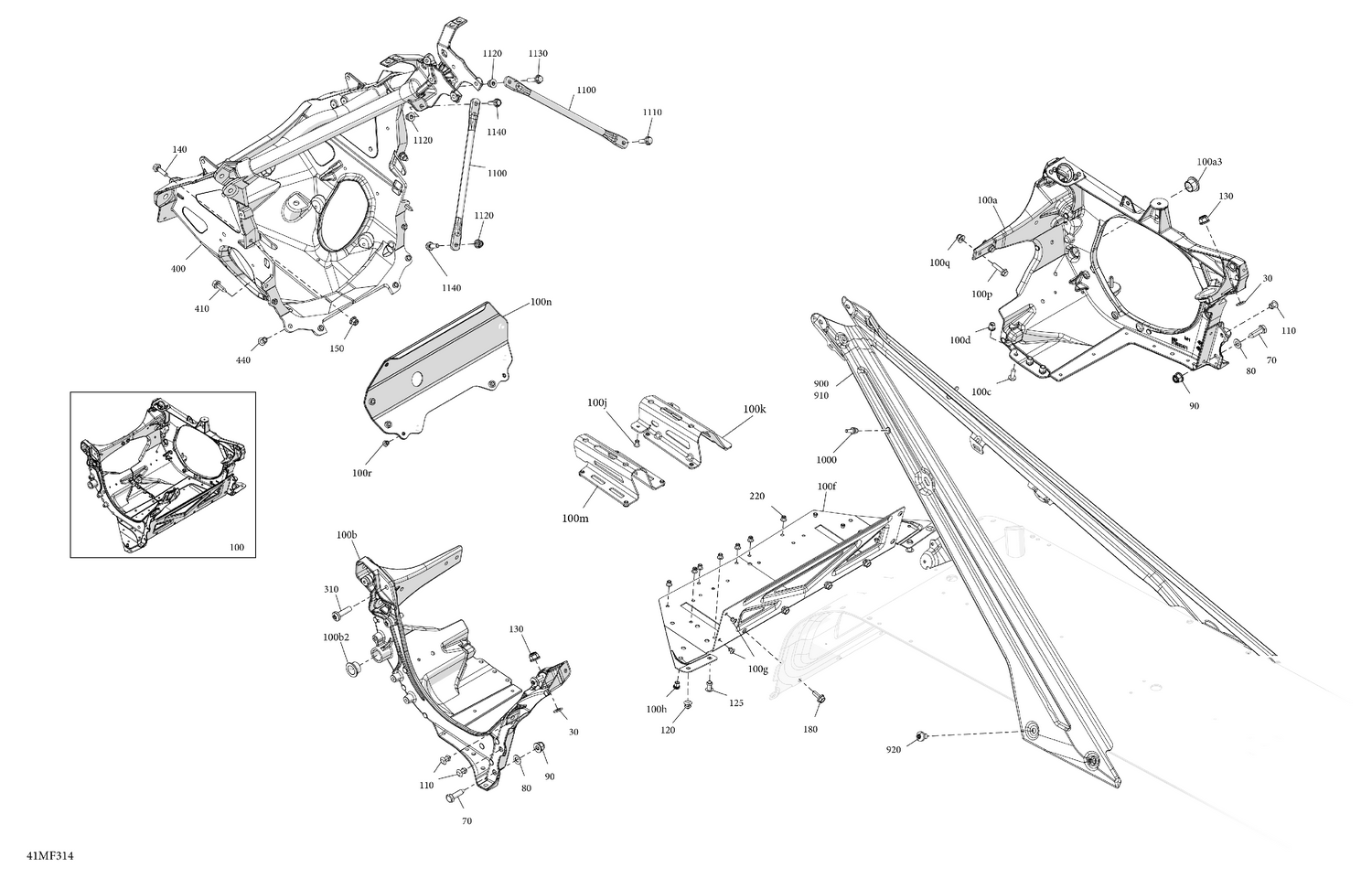

06- Frame - System - Front Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 250200146 | Conical Spring Washer M8 |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100a3 | 505073317 | Leg Cushion |
| 100b2 | 505073317 | Leg Cushion |
| 100c | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100d | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100f | 518332716 | Bottom Plate |
| 100g | 390909100 | Avex Rivet |
| 100h | 293450268 | Insert M5 X 0.8 |
| 100j | 293150163 | Rivet Hucklok |
| 100k | 518329814 | RH Cross Link |
| 100m | 518333927 | LH Central Cross Member Support |
| 100n | 518330100 | Front Member |
| 100p | 207662046 | Hex. Flange Screw M6 X 20 |
| 100q | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100r | 390909100 | Avex Rivet |
| 110 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 120 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 125 | 293150268 | Rivet Ornit 6,5 X 18.5 |
| 130 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 220 | 390909100 | Avex Rivet |
| 310 | 250001060 | Screw-Pan HD.Torx M8X30 |
| 400 | 518334549 | Chassis Suspension Module Ass'y |
| 410 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 |
| 440 | 207661646 | Hex. Flange Screw M6 X 16 |
| 900 | 518336929 | Deep Black, LH Rear Diagonal Cross Member |
| 910 | 518336930 | Deep Black, RH Rear Diagonal Cross Member |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1000 | 293450267 | Insert M5 - 0.8 |
| 1100 | 518329974 | Upper Colomn Support |
| 1110 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1130 | 207662556 | Hex. Flange Screw M6 X 25 |
