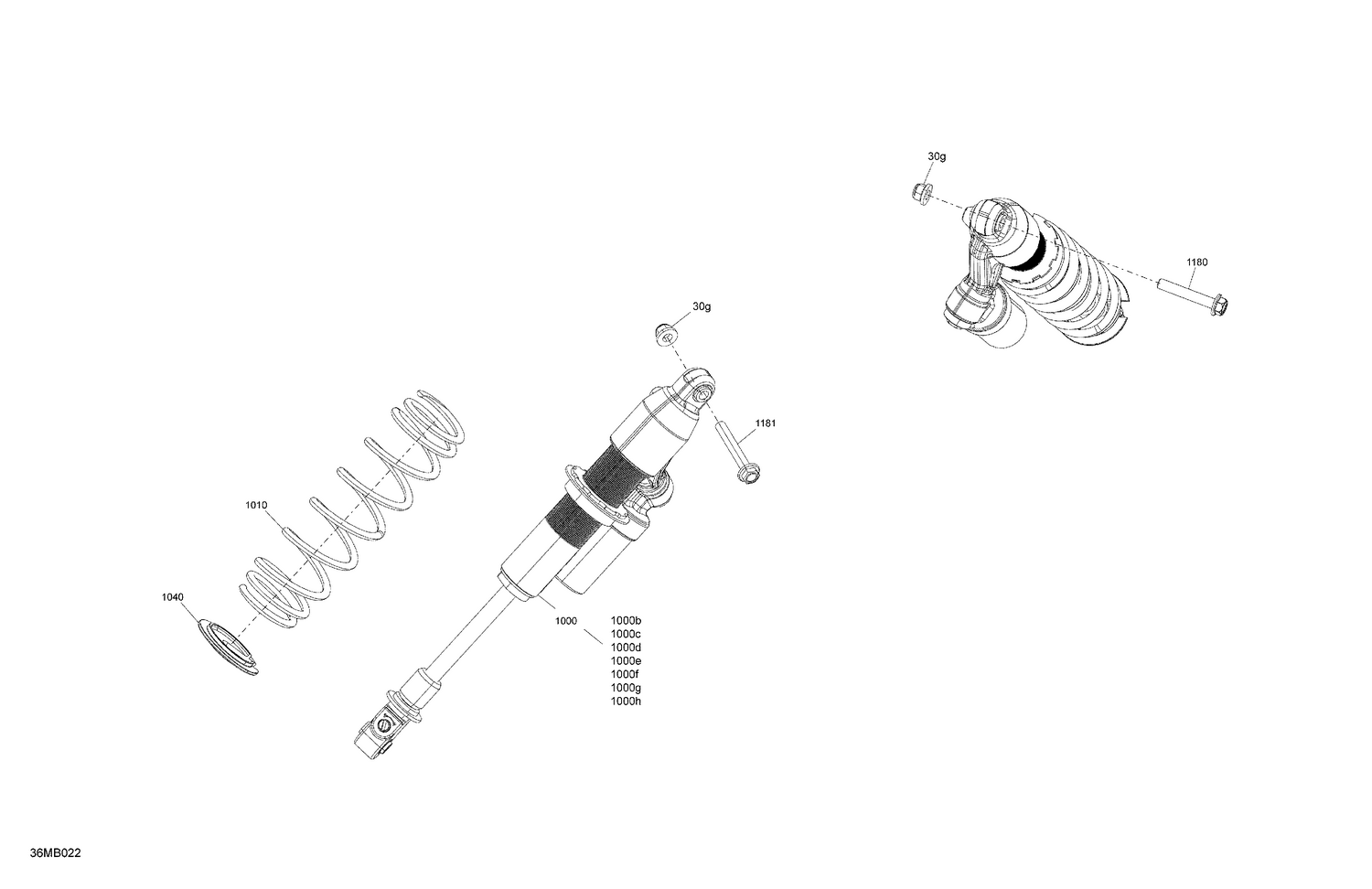

05- Suspension - Front Shocks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070398 | Air Valve |
| 1000e | 505070399 | Screw |
| 1000f | 505070400 | O-Ring |
| 1000g | 715900076 | Circlip - Call your local BRP dealership |
| 1000h | 415093804 | O-Ring |
| 1010 | 505075131 | Deep Black, Spring |
| 1040 | 503196109 | Spring Stopper |
| 1180 | 207606046 | Hex. Flange Screw M10 X 6 |
| 1181 | 207607046 | Hex. Flange Screw M10 X 70 |
