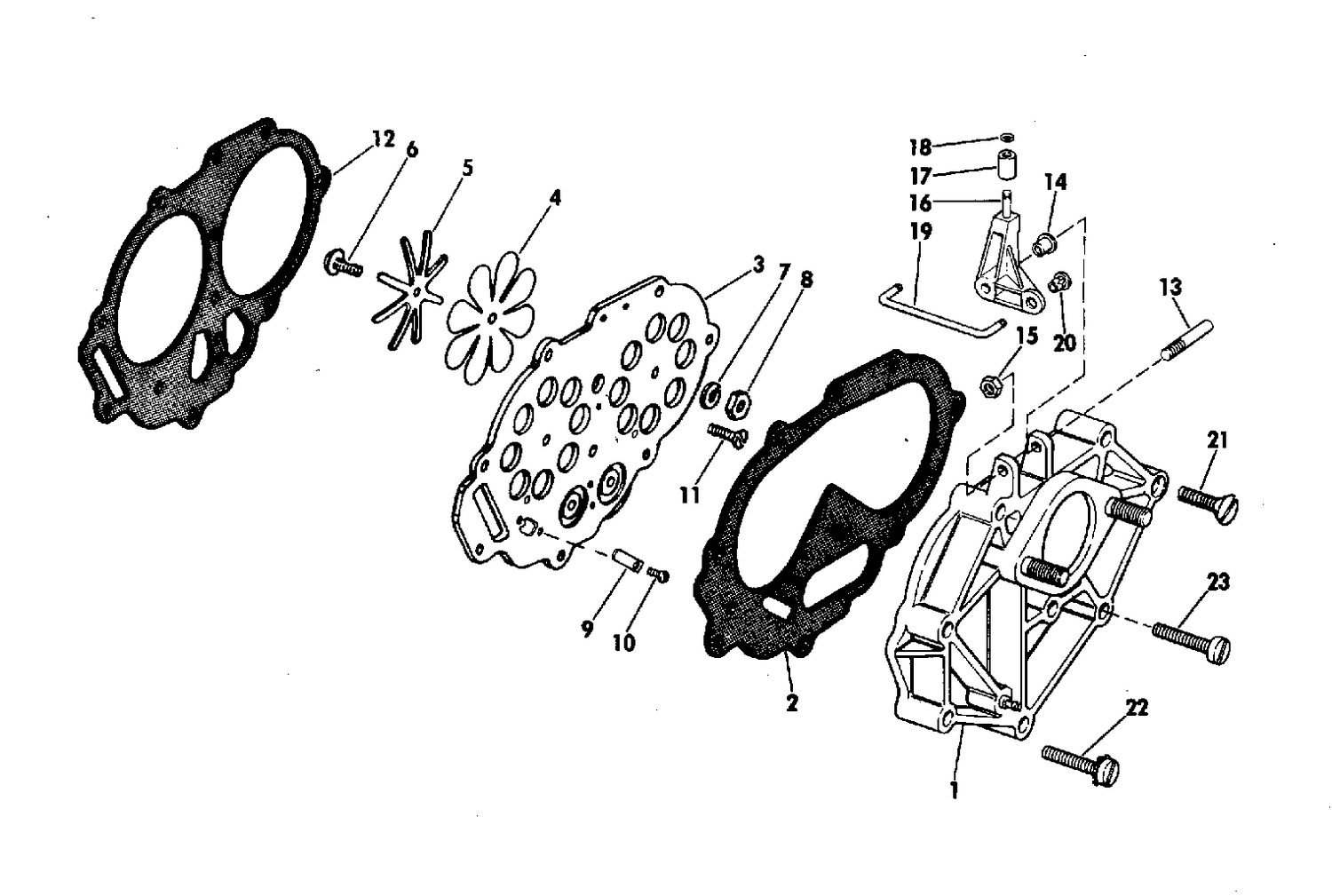

INTAKE MANIFOLD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384696 | MANIFOLD, Intake |
| 2 | 0315991 | GASKET, Lead plate to manifold |
| 4 | 0313724 | LEAF |
| 10 | 0303761 | SCREW |
| 12 | 0316540 | GASKET, Leaf plate to c' case |
| 13 | 0316606 | PIN |
| 14 | 0316607 | BUSHING |
| 15 | 0132520 | NUT |
| 16 | 0384697 | CAM FOLLOWER |
| 17 | 0305232 | ROLLER, Cam foller |
| 18 | 0307529 | JOINT TORIQUE, galet vers contre-came |
| 19 | 0309241 | LINK, Cam follower |
| 20 | 0204708 | RETAINER |
| 21 | 0304294 | SCREW Manifold to crankcase |
| 22 | 0312189 | SCREW, Manfold to crankcase |
| 0279214 | 0279214 | LEADF PLATE ASSY |
