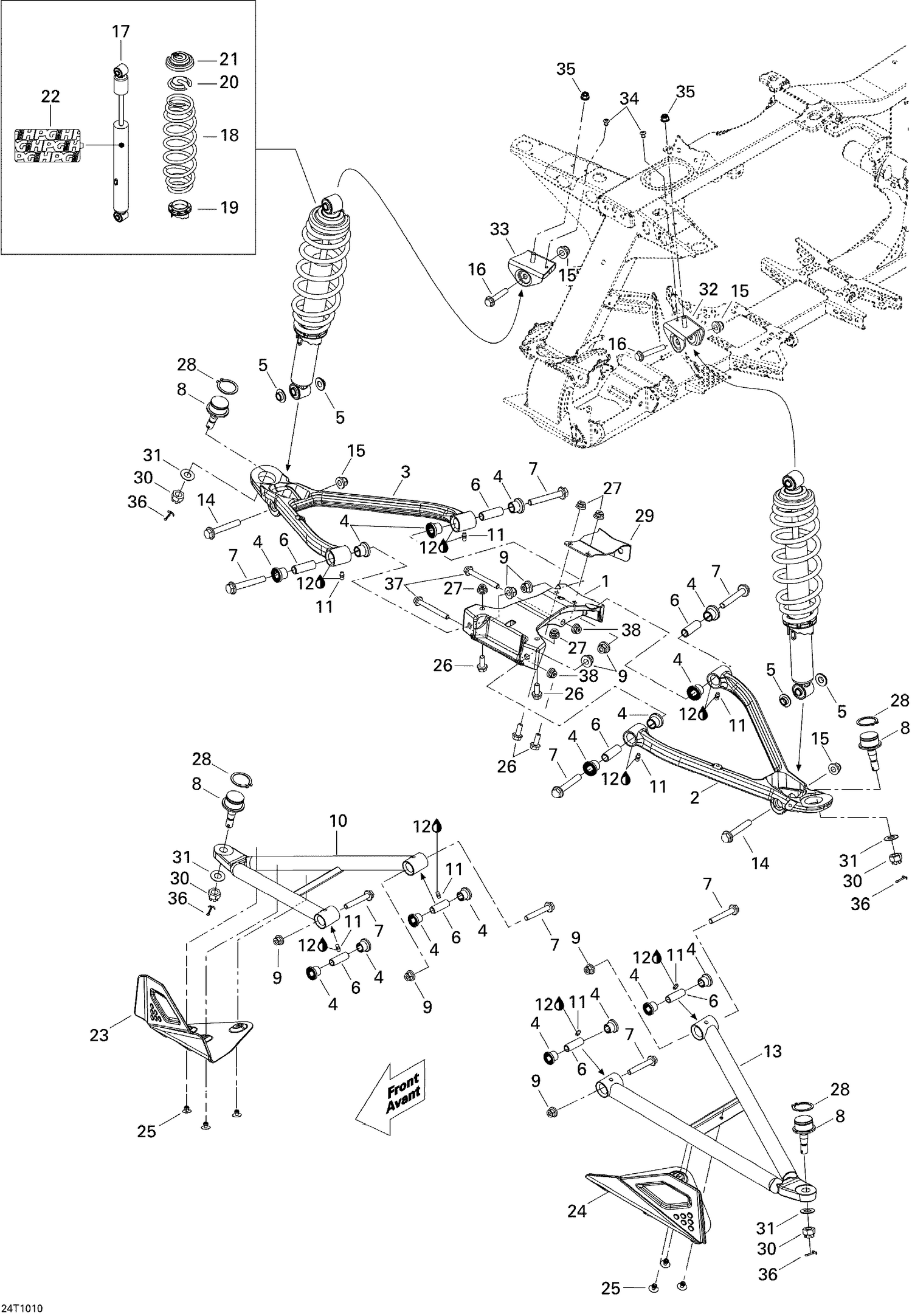

07- Front Suspension 500 EFI
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706201360 | Upper Arm Bracket This part replaces 706200476. |
| 2 | 706200763 | LH Upper Arm |
| 3 | 706200764 | RH Upper Arm |
| 4 | 706200181 | Bushing |
| 5 | 706200677 | SPACER BUSHING - Call your local BRP dealership |
| 6 | 706201587 | Sleeve This part replaces 706200678. |
| 7 | 207607046 | Hex. Flange Screw M10 X 70 |
| 8 | 706200653 | Ball Joint |
| 9 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 10 | 706201047 | ARM_SUSPENSION RH ECOAT - Call your local BRP dealership |
| 11 | 408200700 | Grease Fitting |
| 12 | 293550010 | Synthetic Grease, 400 G |
| 13 | 706201045 | ARM_SUSPENSION LH ECOAT - Call your local BRP dealership |
| 14 | 207606536 | Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 15 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 | 207605544 | Hex. Flange Screw M10 X 55 |
| 19 | 706002356 | Adjuster Ring This part replaces 706000294. |
| 20 | 706200881 | Spring Stopper |
| 21 | 706200785 | Cap |
| 22 | XXX | Not Available As Spare Parts |
| 23 | 706201670 | RH Protector This part replaces 706200616. |
| 24 | 706201669 | LH Protector This part replaces 706200615. |
| 25 | 293150104 | Pop Rivet 3/16" |
| 26 | 207682044 | Hex. Flange Screw M8 X 20 |
| 27 | 233281414 | Hex. Flange Elastic Nut M8 |
| 28 | 293370009 | Circlip 32 mm |
| 29 | 706201014 | BRACKET - Call your local BRP dealership |
| 30 | 250100099 | Nut M12 |
| 31 | 706200281 | Hardened Washer |
| 32 | 706201039 | LH UPPER ARM BRACKET - Call your local BRP dealership |
| 33 | 706201040 | RH UPPER ARM BRACKET - Call your local BRP dealership |
| 34 | 390402300 | Pop Rivet 3/16" |
| 35 | 233281416 | Hex. Elastic Flange Nut M8 |
| 36 | 211400017 | Cotter Pin |
| 37 | 207687044 | Hex. Flange Screw M8 X 70 |
