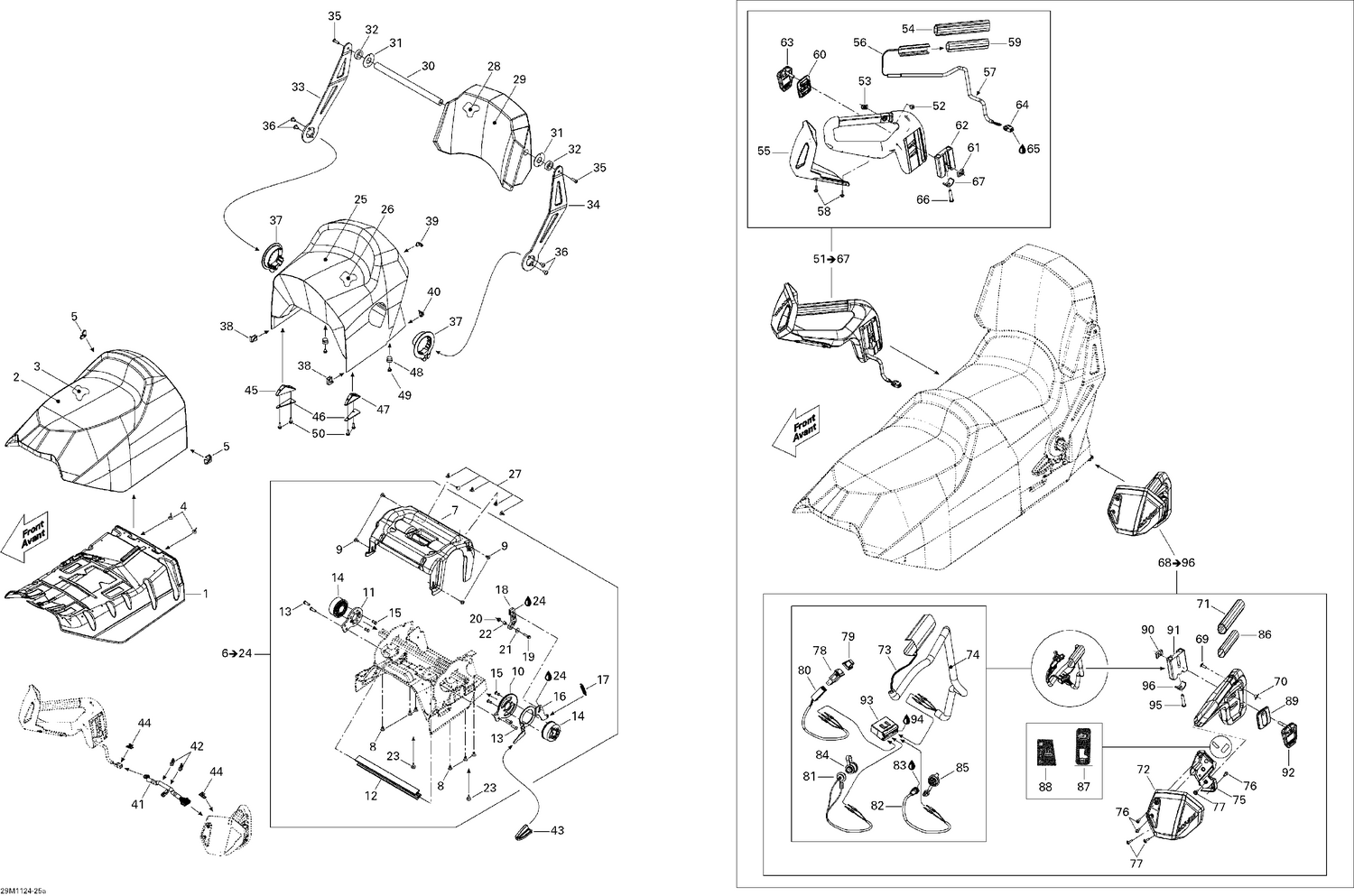

09- Seat

09- Seat

Parts (92)

RefPart NumberDescription
1 510004775 Front Seat Base
2 510004941 FRONT SEAT COVER - Call your local BRP dealership
3 510004777 Front Seat Foam
4 708000759 Rubber Stopper This part replaces 708000125.
5 510004963 SEAT CORNER, BLACK - Call your local BRP dealership
7 510004423 Foam Support
8 293150104 Pop Rivet 3/16"
9 293150100 Pop Rivet 3/16"
10 510004391 Sprocket
11 510004393 LINK PLATE - Call your local BRP dealership
12 510005496 LINK TUBE - Call your local BRP dealership This part replaces 510004394.
13 205982586 SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership
14 510005425 SPACER - Call your local BRP dealership
15 293150129 STEEL RIVET - Call your local BRP dealership
16 510004385 HANDLE, BLACK - Call your local BRP dealership
17 514053643 Spring
18 510006338 Adjustment Pivot This part replaces 510004392.
19 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
20 233261414 Hex. Flange Elastic Nut M6 x 1.0
21 224061201 Flat Washer
22 510004425 BUSHING - Call your local BRP dealership
23 708000759 Rubber Stopper
24 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
25 510004996 REAR SEAT COVER - Call your local BRP dealership
26 510004791 Rear Seat Foam
27 414644300 Black, Dart
28 510004782 Backrest Foam
29 510005101 BACKREST COVER - Call your local BRP dealership
30 510004377 Upper Backrest Axle
31 510004379 Washer
32 510004378 Rubber Shim
33 510004794 RH ARM, BLACK - Call your local BRP dealership
34 510004796 LH ARM, BLACK - Call your local BRP dealership
35 250000283 Torx Screw M8 X 25, Scotch Grip
36 250000746 Torx Truss Screw M8 X 16 This part replaces 250000198.
37 510004966 SPACER - Call your local BRP dealership
38 510004963 SEAT CORNER, BLACK - Call your local BRP dealership
39 510004964 RH REAR CORNER SEAT - Call your local BRP dealership
40 510004965 LH REAR CORNER SEAT - Call your local BRP dealership
41 515176766 Seat Harness
42 515175220 Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership
43 510004419 GRIP - Call your local BRP dealership
44 515175283 Housing Support
45 518325710 RH Seat Anchor
46 510005216 SPACER - Call your local BRP dealership
47 518325709 LH Seat Anchor
48 510005095 SEAT STUD - Call your local BRP dealership
49 207561044 Flange Screw M6 X 10, Scotch Grip
50 207562034 Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
52 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
53 293100003 Nut Welded, M6
54 510004449 Handle Grip
55 510005009 RH Air Deflector
56 515176999 Heated Element
57 219704426 Was 515175506 Tubing
58 250000725 Screw M4 X 16 This part replaces 250000113.
59 510005814 Reinforcement Handle This part replaces 510005011.
60 510006602 Passenger Handle Trim This part replaces 510004405.
61 510004804 Stopper Block
62 510004798 HANDLE LINK - Call your local BRP dealership
63 510004806 Lever Lock Ass'y
64 515175494 Male Housing, 3 Circuits
65 219704453 Was 293550004 Dielectric Grease, 150 g
66 250000220 SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership
67 510004565 HANDLE CLAMP - Call your local BRP dealership
69 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
70 293100003 Nut Welded, M6
71 510004449 Handle Grip
72 510005010 LH Air Deflector
73 515176999 Heated Element
74 219704426 Was 515175506 Tubing
75 510005036 Switch Housing
76 250000720 Torx Screw K50 X 16 This part replaces 250000146.
77 250000725 Screw M4 X 16 This part replaces 250000113.
78 510004413 Rocker Switch
79 510004414 Switch Protector
80 515176697 Handle Harness
81 515176698 Visor Connector Harness
82 515177018 WIRING HARNESS_HEATED SOLE - Call your local BRP dealership
83 293800060 Loctite 243, 10 ml
84 572103300 Cap
85 510004950 Cap
86 510005814 Reinforcement Handle This part replaces 510005011.
87 516003612 VISOR AND LINER DECAL - Call your local BRP dealership
88 516003816 Heated Handle Decal
89 510006602 Passenger Handle Trim This part replaces 510004405.
90 510004804 Stopper Block
91 510004798 HANDLE LINK - Call your local BRP dealership
92 510004806 Lever Lock Ass'y
93 515176033 Male Connector
94 219704453 Was 293550004 Dielectric Grease, 150 g
95 250000220 SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership
