| Ref | Part Number | Description |
|---|
| 1 |
0390570 |

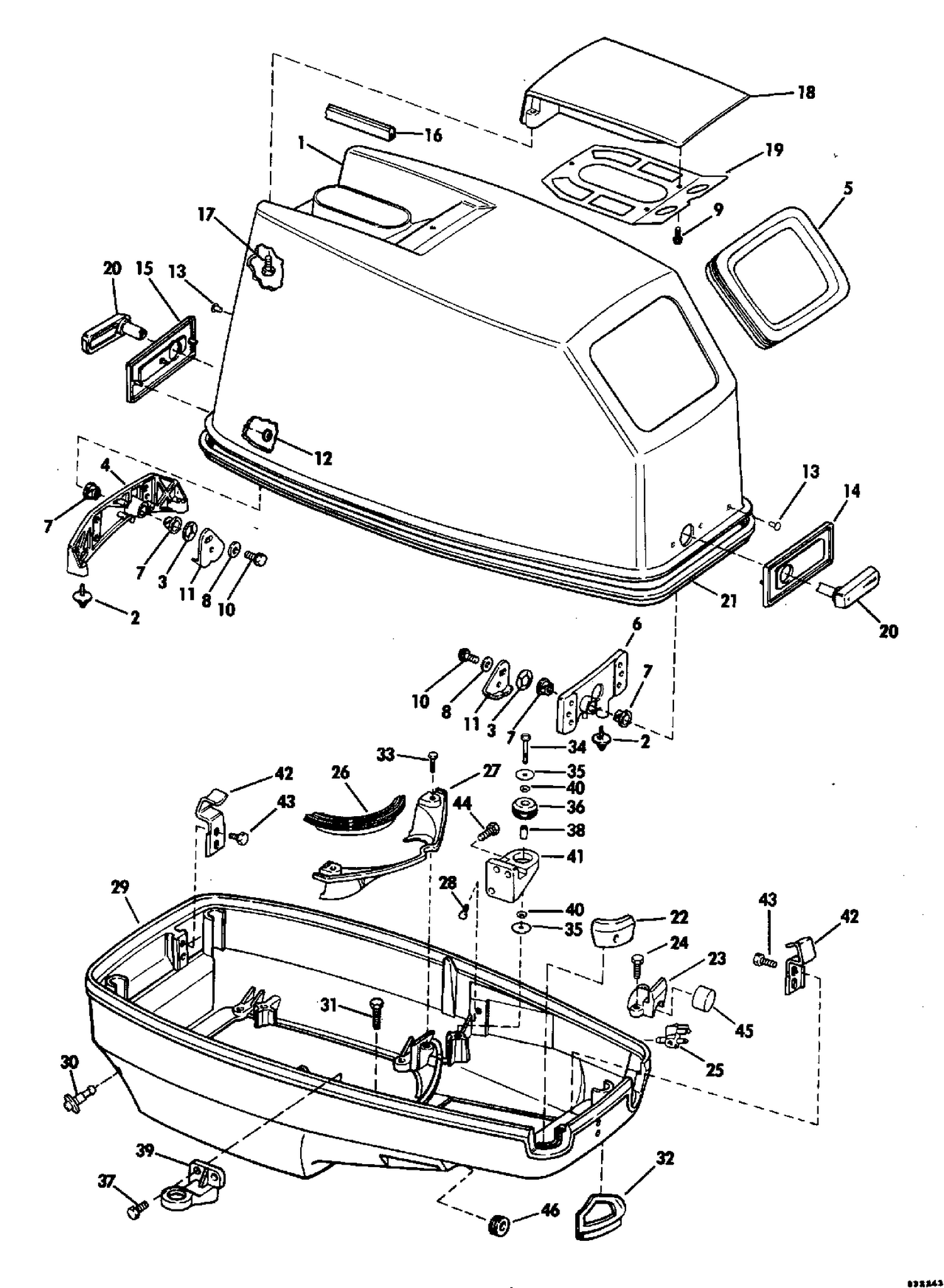

ENGINE COVER ASSY.,Johnson |
| 6 |
0391642 |
LOCATING BLANKET, Front |
| 10 |
0318468 |
SCRAEW, Latch to handle |
| 14 |
0325674 |
APPLIQUE, Front |
| 15 |
0325675 |
APPLIQUE, Front |
| 16 |
0315984 |
SEAL , Baffle to motor cover |
| 19 |
0315989 |
AIR INLET BAFFLE |
| 20 |
0330647 |
HANDLE ASSY. This part replaces 0325357. |
| 22 |
0329886 |
BRACKET,Mounting |
| 23 |
0318286 |
CLAMP |
| 25 |
0393334 |
CONNECTEUR, carburant - mâle |
| 26 |
0316064 |
SEAL, Frame |
| 27 |
0318557 |
FRAME, Front |
| 28 |
0328731 |
VIS, câble de verrouillage This part replaces 0309616. |
| 29 |
0397383 |
ENGINE COVER, Lower This part replaces 0329883. |
| 30 |
0321885 |
NIPPLE |
| 32 |
0318574 |
SEAL, Steering arm |
| 33 |
0312299 |
VIS, serre-câble |
| 34 |
0303398 |
VIS, support This part replaces 0323100. |
| 36 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 37 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 38 |
0302406 |
SLEEVE |
| 39 |
0327196 |
SUPPORT, Front stbd |
| 40 |
0305940 |
WASHER |
| 41 |
0316002 |
SUPPORT, Front port |
| 42 |
0323474 |
HOOK, Cover to housing |
| 43 |
0304027 |
VIS, arbre de commande de sens de marche |
| 44 |
0551793 |
SCREW |
| 45 |
0307769 |
PLUG |
| 46 |
0331634 |
BAGUE, câble d'accélérateur This part replaces 0325958. |
| 0393253 |
0393253 |
DECAL SET,Johnson |
