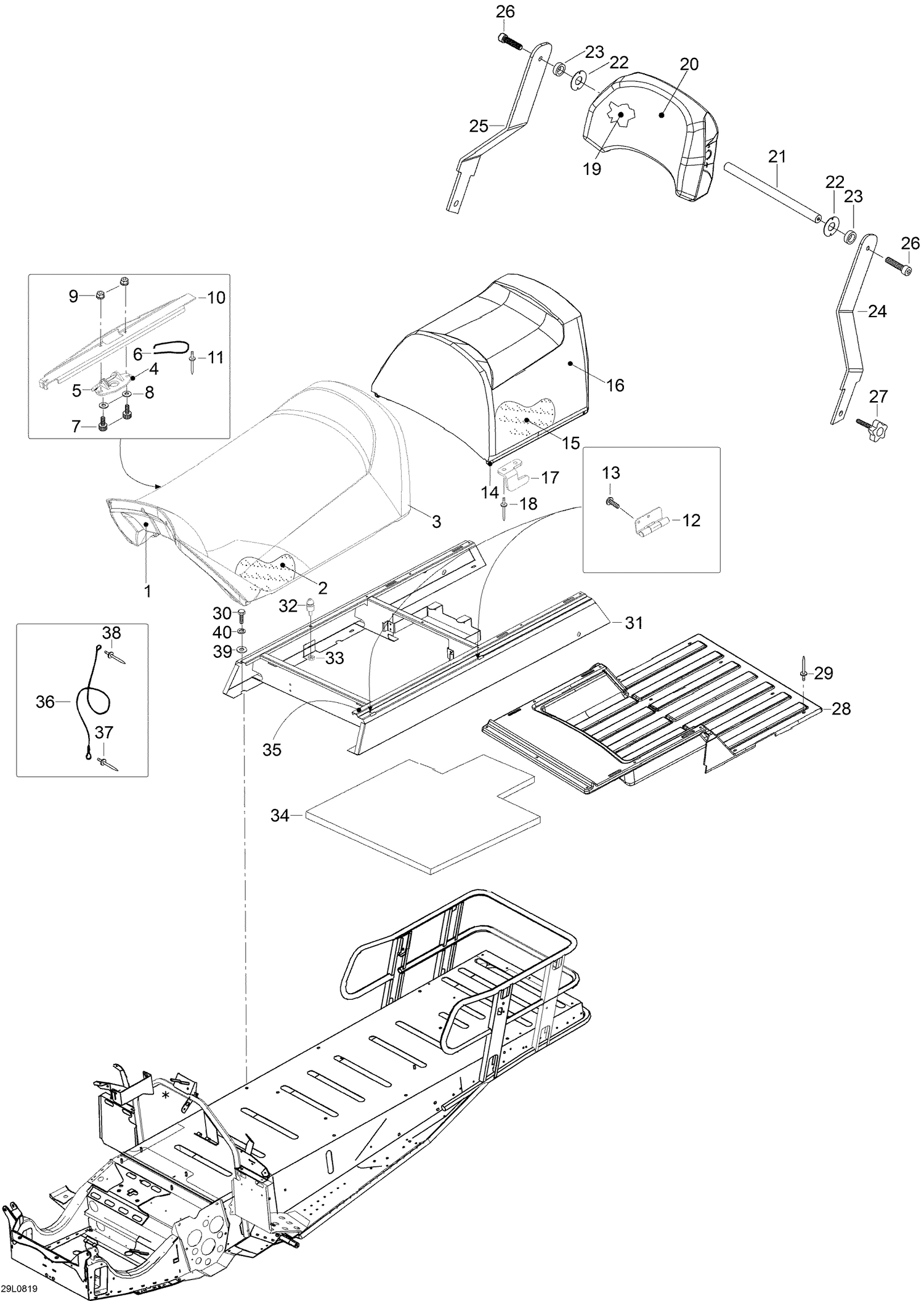

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Seat Foam This part replaces 605254497. |
| 3 |
605255216 |
SEAT FRONT COVER, SUV - Call your local BRP dealership This part replaces 605254494. |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700017 |
Spring |
| 7 |
40276 |
Socket head screw M6 x 25 |
| 8 |
20003 |
Washer A6,4 |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
36088 |
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 12 |
605351798 |
Hinge |
| 13 |
40890 |
Wronic-screw 4,2 x 16 |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605255691 |
REAR SEAT FOAM - Call your local BRP dealership This part replaces 605254498. |
| 16 |
605254496 |
SEAT COVER - Call your local BRP dealership |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet |
| 19 |
510004365 |
BACKREST FOAM - Call your local BRP dealership This part replaces 605255225. |
| 20 |
605355498 |
BACKREST COVER - Call your local BRP dealership This part replaces 605255226. |
| 21 |
605355357 |
BACKREST AXLE - Call your local BRP dealership |
| 22 |
605355358 |
WASHER - Call your local BRP dealership |
| 23 |
605455359 |
Rubber shim |
| 24 |
605355499 |
LH ARM - Call your local BRP dealership |
| 25 |
605355500 |
RH ARM - Call your local BRP dealership |
| 26 |
605640010 |
SCREW M10X20 - Call your local BRP dealership |
| 27 |
605640015 |
HANDLE M8 X 35 - Call your local BRP dealership |
| 28 |
605355484 |
TUNNEL COVER - Call your local BRP dealership |
| 29 |
36036 |
Rivet |
| 30 |
40029 |
Hex. screw M6 x 16 |
| 31 |
605254706 |
SEAT BASE - Call your local BRP dealership |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 34 |
605352460 |
FOAM - Call your local BRP dealership |
| 35 |
28413 |
Gasket |
| 36 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 37 |
36037 |
Rivet |
| 38 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 39 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
