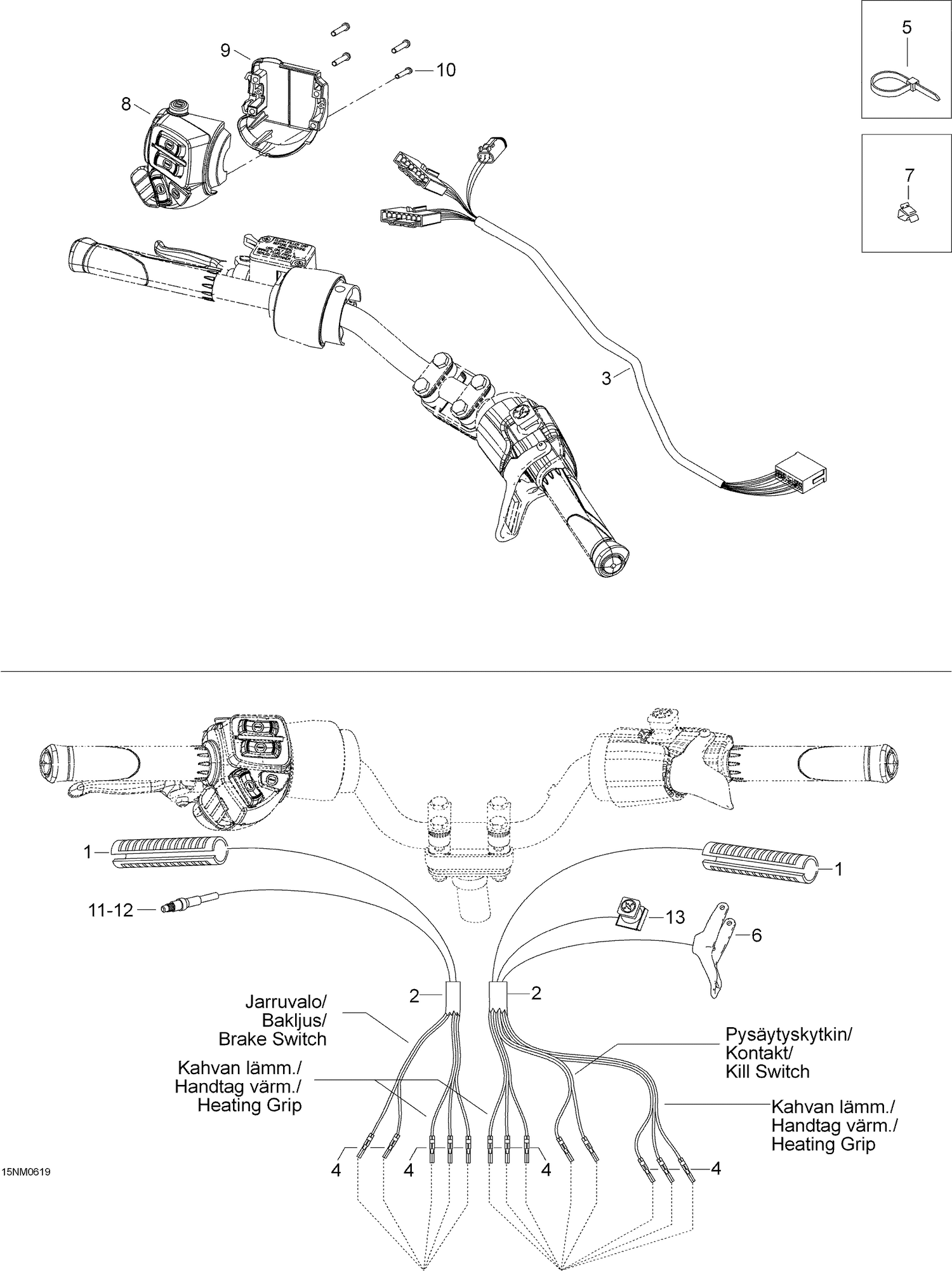

10- Steering Wiring Harness
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175664 | Heating Grip |
| 2 | M39023 | Housing |
| 3 | 605353265 | Steering Harness |
| 5 | 414115200 | Tie-Rap 180 mm This part replaces M27026. |
| 6 | 512059624 | Handle Ass’Y |
| 7 | 414227300 | Clip |
| 8 | 515176015 | LH SWITCH HOUSING - Call your local BRP dealership |
| 9 | 515175926 | Switch Housing Plate |
| 10 | M40903 | Screw 3.5X25 |
| 12 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces M42603. |
