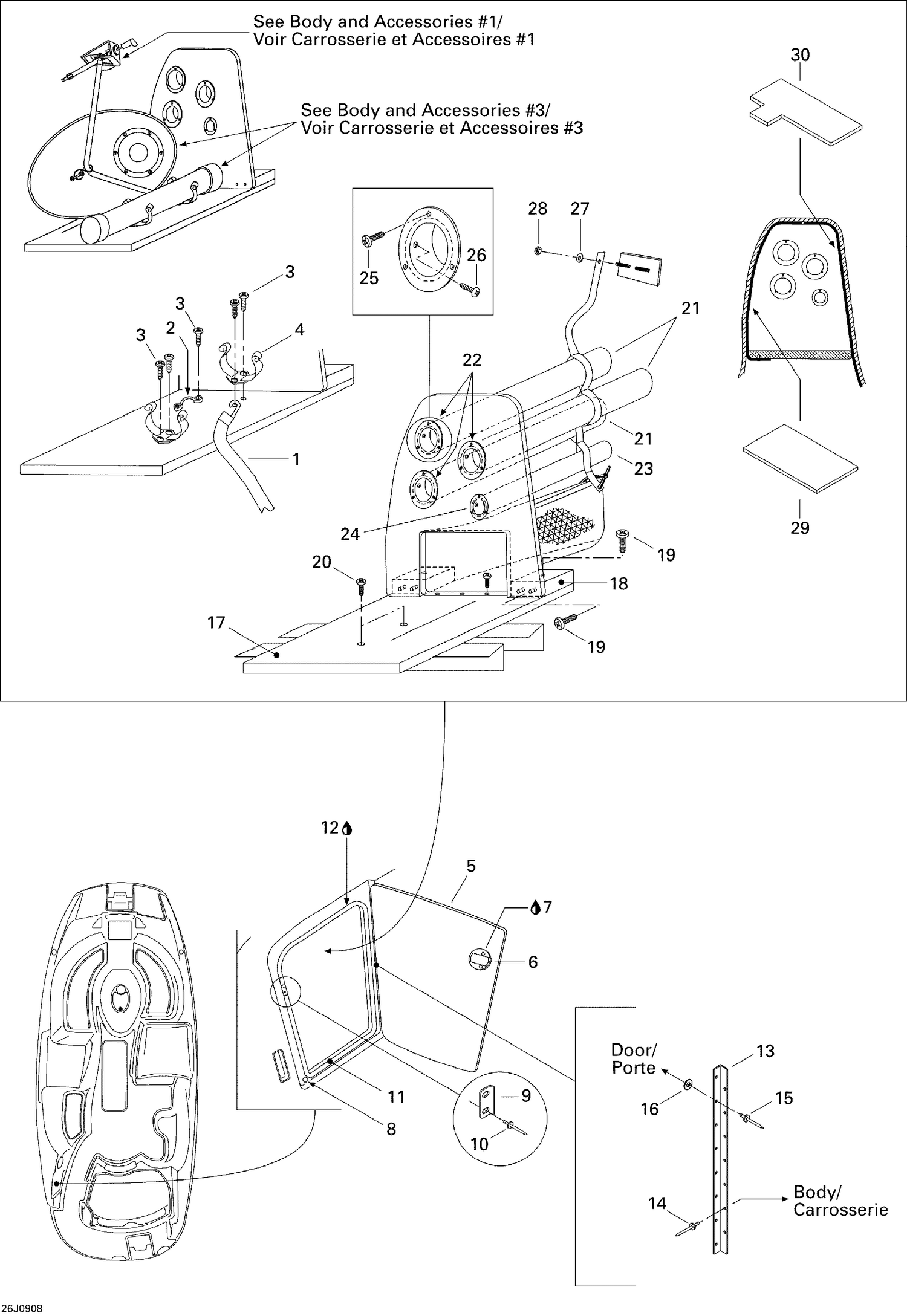

| Ref | Part Number | Description |
|---|
| 1 |
204070905 |
ICE CHEST STRAP - Call your local BRP dealership |
| 2 |
204070234 |
Strap Tie |
| 3 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 4 |
204070342 |
POLE CLIP - Call your local BRP dealership |
| 5 |
204072578 |
Storage Door |
| 6 |
204073347 |
LATCH ASS'Y - Call your local BRP dealership |
| 7 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 8 |
204070940 |
BUMPER - Call your local BRP dealership |
| 9 |
204071926 |
KEEPER - Call your local BRP dealership |
| 10 |
293150008 |
Pop Rivet 3/16" |
| 11 |
204070752 |
Rubber Trim |
| 13 |
204071809 |
Hinge |
| 14 |
293150014 |
Pop Rivet 3/16" |
| 15 |
293150008 |
Pop Rivet 3/16" |
| 16 |
234051600 |
Flat Washer M5, Stainless |
| 17 |
204072698 |
Floor |
| 18 |
204070751 |
Mounting Block |
| 19 |
209643860 |
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 20 |
209643860 |
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 21 |
204071033 |
Storage Tube 3” X 58” |
| 22 |
204071199 |
Tube Collar |
| 23 |
204071201 |
STORAGE TUBE 2? X 58? - Call your local BRP dealership |
| 24 |
204071202 |
Tube Collar |
| 25 |
204100058 |
Phillips Tapping Screw |
| 26 |
209630960 |
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership |
| 27 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 28 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 29 |
204072425 |
DECK CARPET, OUTER - Call your local BRP dealership |
