| Ref | Part Number | Description |
|---|
| 1 |
0383326 |
CABLE ASSY., Motor |
| 8 |
0383609 |
VOLTAGE REGULATOR & CABLE ASSY |
| 9 |
0383610 |
LEAD ASSY., Regulator to ammeter |
| 13 |
0383611 |
CABLE ASSY., Regulator to generator |
| 18 |
0312695 |
PANEL ASSEMBLY, Dash |
| 19 |
0312691 |
SCREW, Cash pannel |
| 20 |
0381630 |
AMMETER ASSEMBLY |
| 24 |
0383613 |
LEAD ASSY., Ammeter to ignition switch |
| 26 |
0381629 |
INDICATING LIGHT, Temp |
| 29 |
0386947 |
IGNITION SWITCH This part replaces 0383465. |
| 33 |
KEY, |
Ignition |
| 34 |
0975257 |
SWITCH ASSEMBLLY |
| 36 |
0900696 |
WASHER |
| 40 |
0307911 |
SCREW |
| 41 |
0383351 |
LEAD ASSEBMBLY,Ignition to choke switch |
| 44 |
0279056 |
CABLE ASSY., Instrument |
| 52 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277708. |
| 54 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 0279061 |
0279061 |

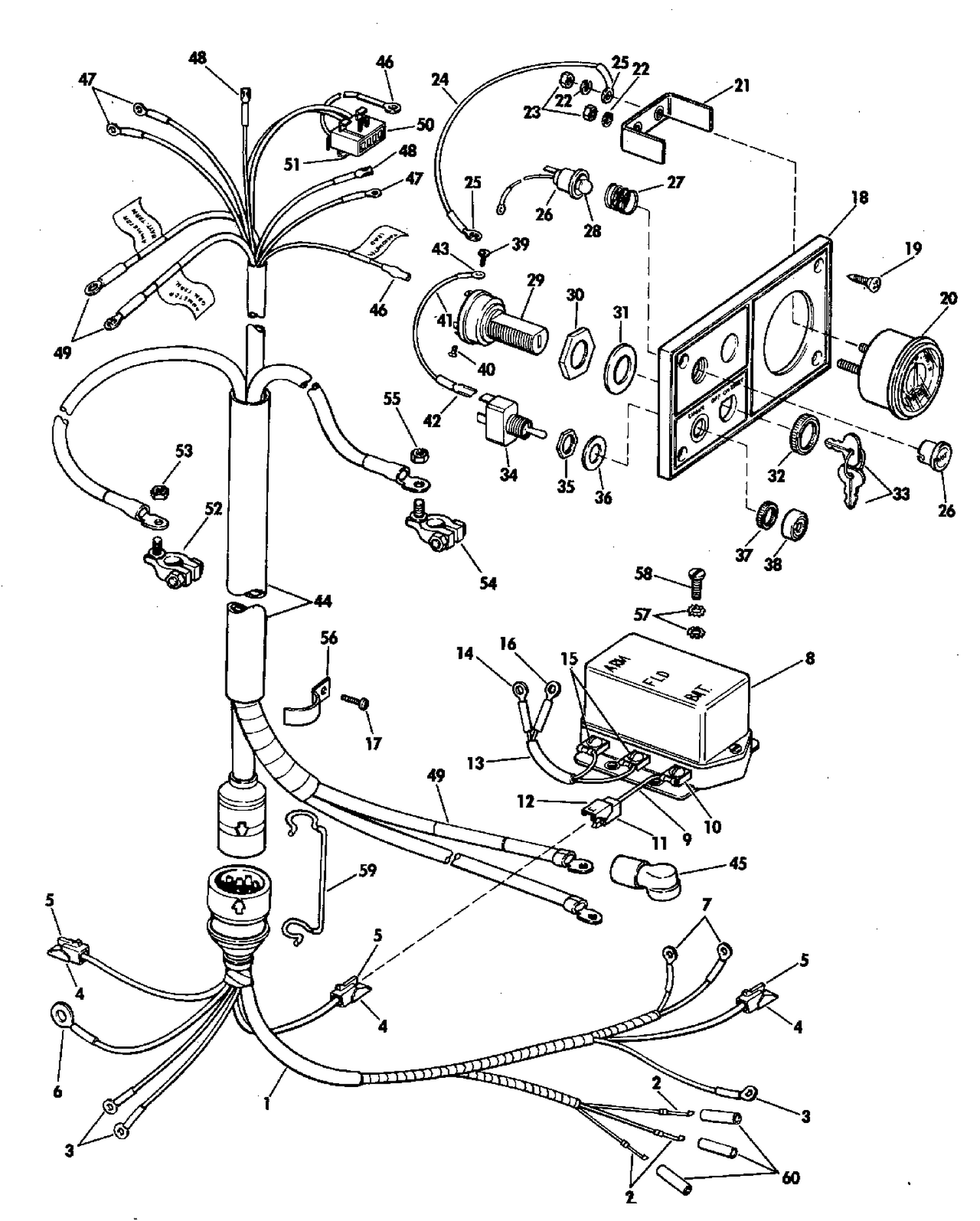

INSTRUMENTS & CABLE ASSY |
