Home / BRP / EVINRUDE / 1995 / 60 / 08- Front Arm, Rear Suspension

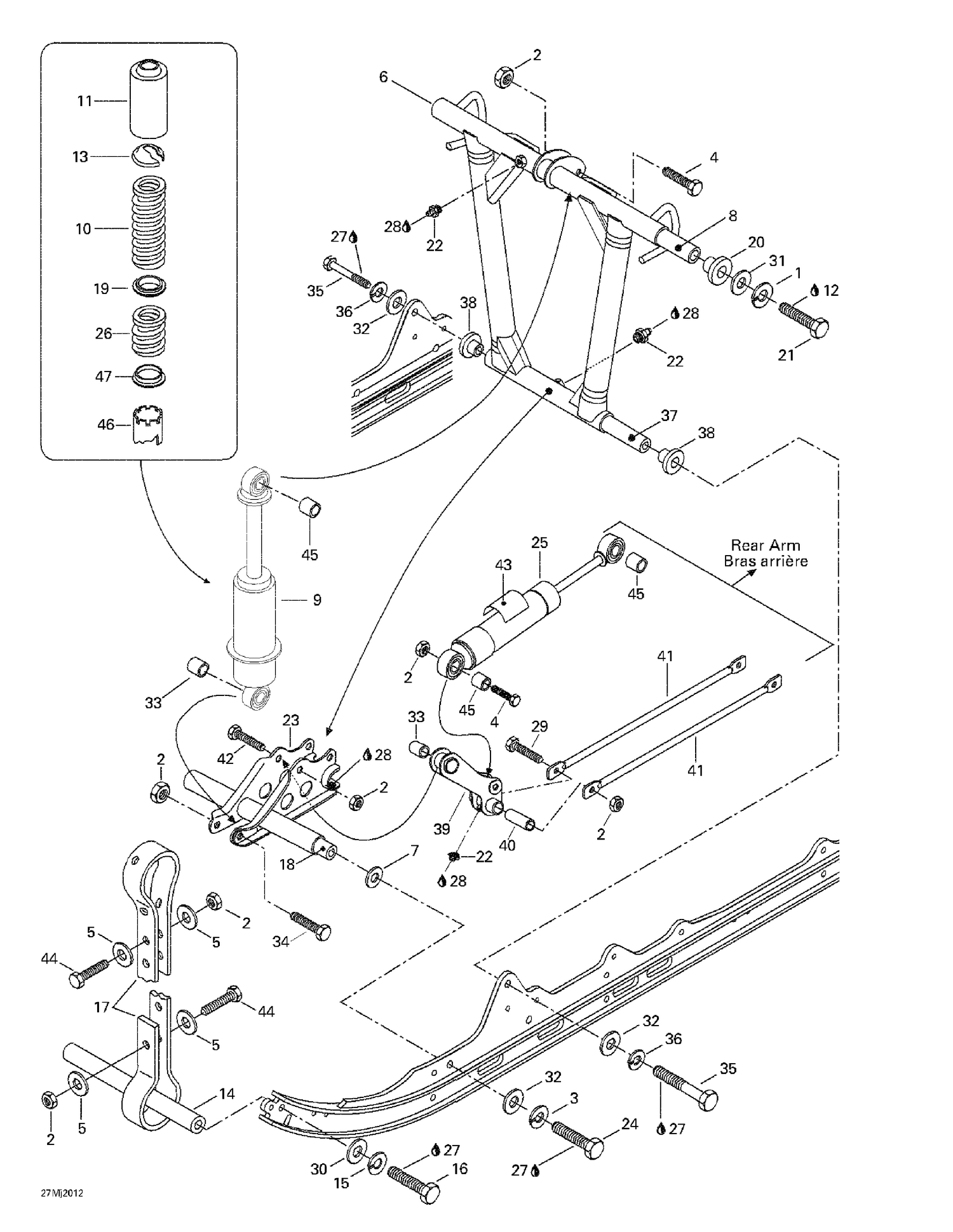

08- Front Arm, Rear Suspension

08- Front Arm, Rear Suspension

Parts (46)

RefPart NumberDescription
1 234101601 Helicoidal Lock Washer M10
2 232581414 Hex. Elastic Stop Nut M8
3 234120602 Lock Washer 12 mm
4 207084044 Hex. Screw M8 X 40
5 517078700 WASHER - Call your local BRP dealership
6 503171100 Welded Front Arm
7 503175400 Hardened Washer
8 503190387 SHAFT - Call your local BRP dealership This part replaces 503188938.
9 503188913 Shock
10 415090600 Spring
11 503193663 Protector This part replaces 503188930.
12 293800060 Loctite 243, 10 ml
13 706200881 Spring Stopper This part replaces 503140600.
14 503151600 Axle
15 234181401 Lock Washer 8 mm
16 207183044 Hex. Screw M8 X 30
17 503190782 STOPPER STRAP - Call your local BRP dealership This part replaces 503189362.
18 503174900 Lower Axle
19 503182200 Spring Spacer
20 503189324 Bushing
21 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership
22 408200700 Grease Fitting
23 503188976 Welded Shock Support
24 207124044 Hex. Screw M12 x 40
25 503188912 Rear Shock
26 415090500 Spring
27 293800005 Loctite 271, 10 ml This part replaces 413707400.
28 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
29 207087544 HEX. SCREW M8 X 75 - Call your local BRP dealership
30 234081410 Flat Washer 8 mm
31 234001410 Flat Washer 10 mm
32 234021410 Flat Washer 12 mm
33 414917900 Cushion
34 207085544 Hex. Screw M8 X 55
35 207026044 HEX. SCREW M12 X 60 - Call your local BRP dealership
36 234120602 Lock Washer 12 mm
37 503189313 SHAFT - Call your local BRP dealership
38 503189323 CUSHION - Call your local BRP dealership
39 503158500 Lever
40 503158600 Tie Rod Shaft
41 503187100 Tie Rod
42 207085044 Hex. Screw M8 X 50
43 516000182 HPG Decal (Europe)
44 207182544 Hex. Screw M8 X 25
45 414936000 Bushing
46 505073625 Adjustment Cam This part replaces 414762600.
