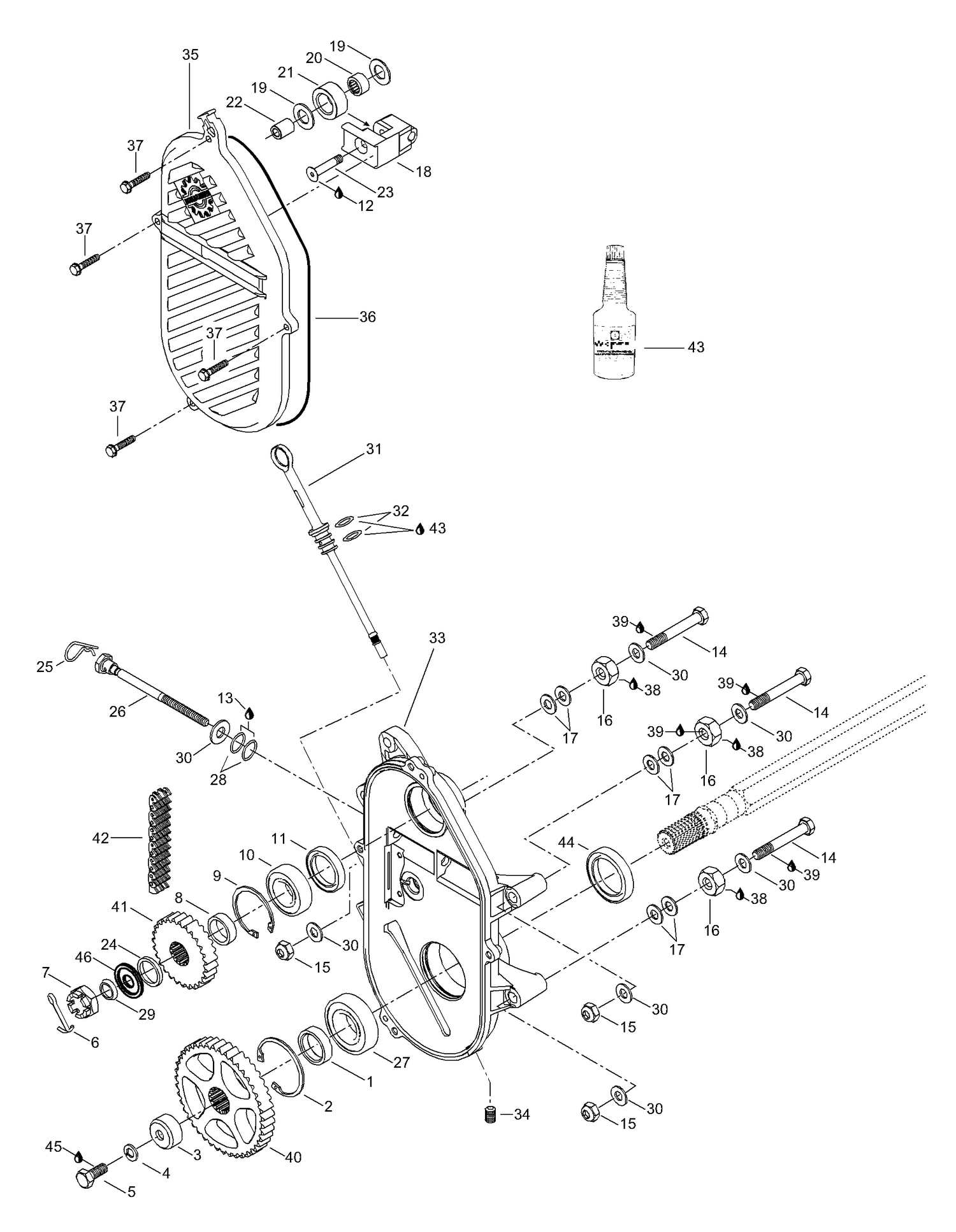

| Ref | Part Number | Description |
|---|
| 1 |
501021800 |
Spacer |
| 2 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 3 |
501022400 |
Spacer |
| 4 |
20068 |
Washer |
| 5 |
40040 |
Screw M10 x 25 |
| 6 |
41003 |
Cotter pin |
| 7 |
232210414 |
HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 8 |
504147200 |
SHIM - Call your local BRP dealership |
| 9 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 10 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 11 |
504151927 |
SEAL - Call your local BRP dealership |
| 12 |
293800005 |
Loctite 271/10 ml |
| 13 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 14 |
40190 |
Screw M10 x 80 |
| 15 |
33082 |
Nut elastic M10 |
| 16 |
504083800 |
Spacer |
| 17 |
504073700 |
WASHER - Call your local BRP dealership |
| 18 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 19 |
504080300 |
WASHER - Call your local BRP dealership |
| 20 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 21 |
414531300 |
ROLLER - Call your local BRP dealership |
| 22 |
504080200 |
SPACER - Call your local BRP dealership |
| 23 |
732601144 |
SCREW - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Spacer - DOES NOT APPLY TO THIS MODEL |
| 25 |
414575600 |
Hair Pin |
| 26 |
732601314 |
ADJUSTMENT SCREW - Call your local BRP dealership |
| 27 |
504152005 |
Bearing |
| 28 |
414484400 |
O-ring |
| 29 |
417000900 |
Spring washer |
| 30 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 31 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 32 |
414969400 |
O-RING - Call your local BRP dealership |
| 33 |
504153562 |
CHAINCASE - Call your local BRP dealership This part replaces 504152064. |
| 34 |
504151921 |
Plug |
| 35 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership This part replaces 504152027. |
| 36 |
415046400 |
O-ring |
| 37 |
40340 |
Self tapp. screw M6 x 30 |
| 38 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 39 |
293800060 |
Loctite 243\10 ml |
| 41 |
486070600 |
Sprocket Z=19 |
| 42 |
504151830 |
DRIVE CHAIN, 72 LINKS - Call your local BRP dealership |
| 43 |
320007) |
Synthetic chaincase oil |
| 44 |
504151918 |
Seal |
| 45 |
293800005 |
Loctite 271, 10 ml |
