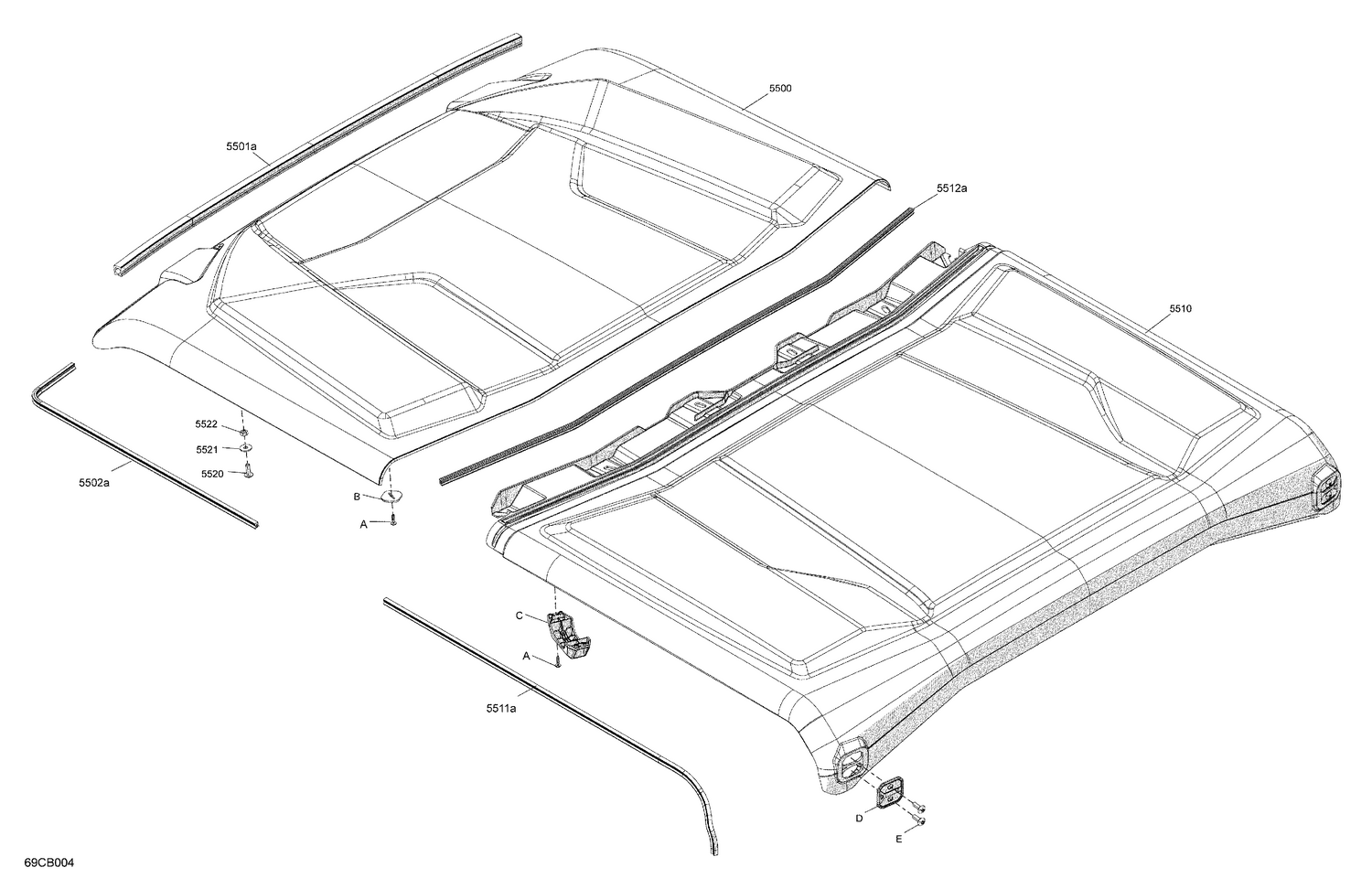

07- Body - Roof
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| A | 250000760 | Torx Screw Truss Head K50X20 T20 |
| B | 705003841 | Support Plate |
| C | 705800131 | Roof Anchor |
| D | 250000874 | Torx Truss M8 X 25 |
| 5500 | 705800066 | Front Roof |
| 5501a | 219704379 | Was 293250361 Gasket |
| 5502a | 705800054 | Outer Seal This part replaces 219704384. |
| 5510 | 705800067 | Rear Roof |
| 5511a | 705800054 | Outer Seal This part replaces 219704384. |
| 5512a | 705800054 | Outer Seal This part replaces 219704384. |
| 5520 | 250000874 | Torx Truss M8 X 25 |
| 5521 | 234082410 | Flat Washer 8 mm |
| 5522 | 232081414 | Hex. Nut M8 |
