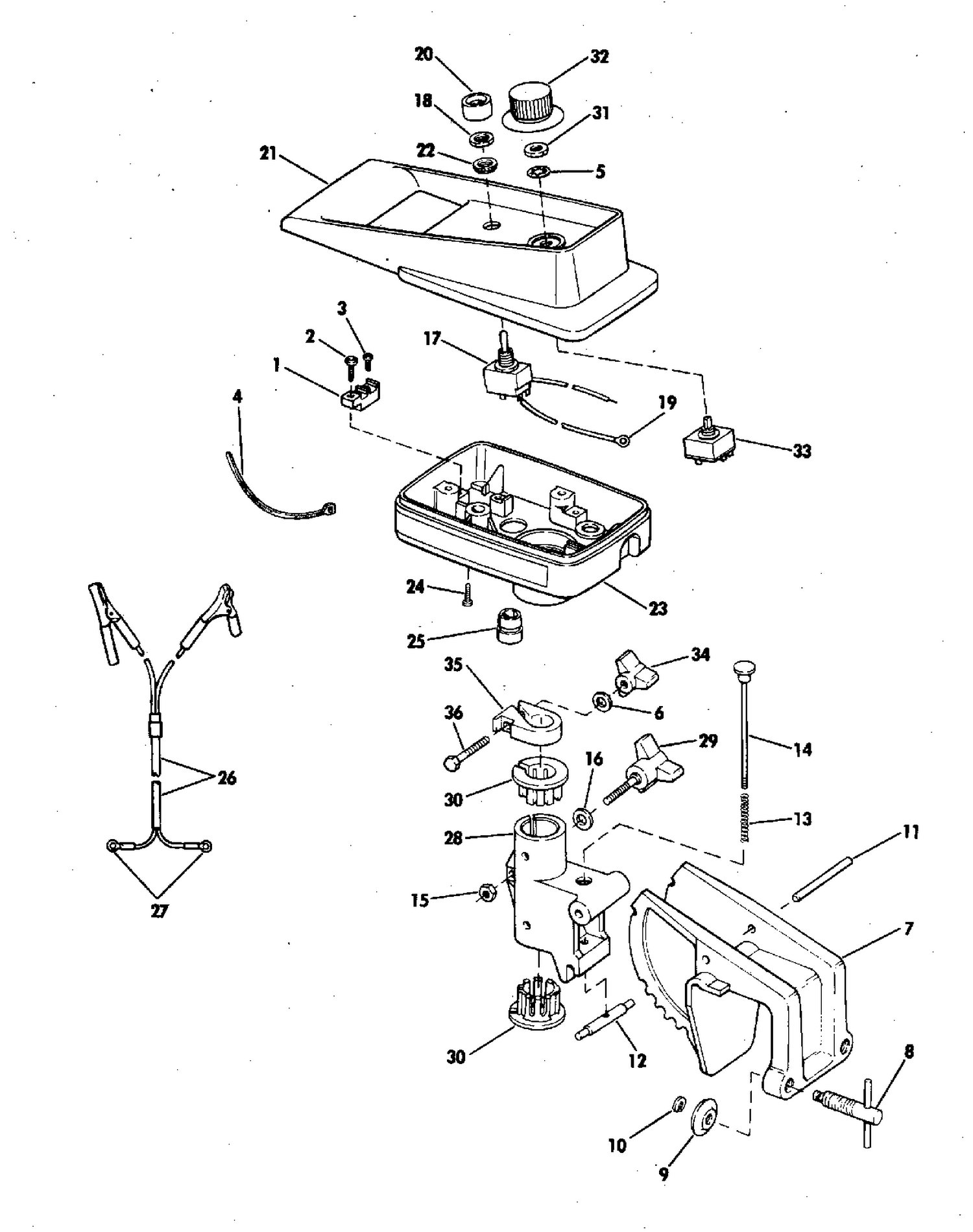

| Ref | Part Number | Description |
|---|
| 1 |
0319650 |
TERMINAL BOARD |
| 2 |
0319605 |
GROMMET, Cable lwr mot cov. |
| 3 |
0329182 |
VIS, borne This part replaces 0327785. |
| 5 |
0320688 |
L WASHER, Potentiometer, 12v |
| 6 |
0303886 |
LOCKWASHER |
| 7 |
0394750 |
STERN BRACKET ASSY This part replaces 0386954. |
| 8 |
0394749 |
CLAMP SCREW & HANDLE ASSY. This part replaces 0387191. |
| 11 |
0330500 |
PIN Swivel brkt. to stern brkt. This part replaces 0320375. |
| 12 |
0320363 |
LATCH BAR |
| 13 |
0320376 |
SPRING, Rod assy, |
| 14 |
0386888 |
KNOB & ROD, Latch |
| 17 |
0582384 |
REVERSE SWITCH & LEAD ASSY. |
| 21 |
0325613 |
COVER ASSEMBLY |
| 23 |
0328082 |
HOUSING |
| 25 |
0320414 |
BUSHING, Strain relief |
| 26 |
0393005 |
CABLE ASSY.,Battery |
| 28 |
0116424 |
SWIVEL BRACKET This part replaces 0328085. |
| 29 |
0398862 |
ADJUSTMENT KNOB ASSY. This part replaces 0386974. |
| 30 |
0320364 |
BUSHING |
| 32 |
0325611 |
KNOB, Rotary switch assy. |
| 33 |
0390644 |
ROTARY SWITCH |
| 34 |
0398863 |
ADJUSTMENT KNOB, Tube to bracket This part replaces 0320399. |
| 35 |
0325617 |
CLAMP, Motor tube height adj. This part replaces 0320423. |
| 36 |
0908511 |
SCREW This part replaces 0553114. |
| 0209665 |
0209665 |
OWNER'S MANUAL,Evinrude |
