Home / BRP / STERN DRIVE / 1968 / 200 / TU-16C 1968 / CRANKCASE GROUP

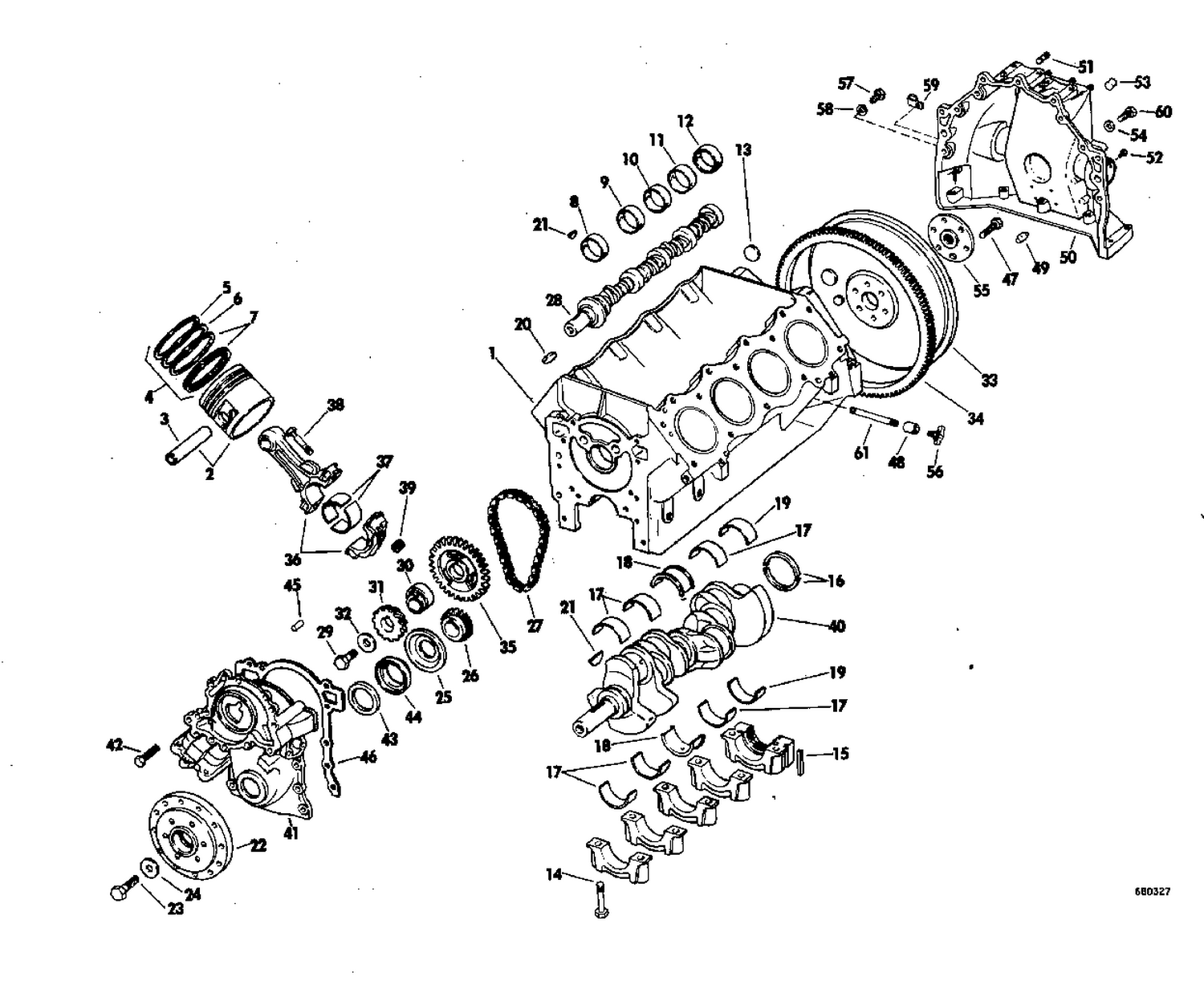

CRANKCASE GROUP

CRANKCASE GROUP

Parts (80)

RefPart NumberDescription
1 CRANKCASE ASSEMBLY
2 1396479 PISTON & PIN,.005 o.s
2 1396480 PISTON & PIN, .010 O.S.
2 1396481 PISTON & PIN, .020 O.S.
2 1396482 PISTON & PIN, .030 O.S.
2 1399524 PISTON & PIN, Std
3 1365034 PIN, Piston
4 1396773 RING SET,Standard
5 1376934 RING #1,Standard
6 1376935 RING #2,Standard
7 1396506 RING #3,Standard
8 1375469 BEARING,Camshaft,front
9 1349783 BEARING, Camshaft front
10 1172022 BEARING, Camshaft, front, center
11 1172023 BEARING, Camshaft, rear, center
12 1172024 BEARING, Camshaft, rear
13 1172025 PLUG, Camshaft bearing cap
14 1185649 BOLT, Crankshaft bearing cap
15 1193151 OIL SEAL,Bearing cap
16 1193133 SEAL, Rear main bearing (packing)
17 5466028 BEARING #1, #3, std.
17 5466031 BEARING #1, #3, .001 U.S.
17 5466034 BEARING #1, #3, .002 U.S.
17 5466037 BEARING #1, #3, .010 U.S.
18 5466029 BARING #2,Std
18 5466032 BEARING #2, .001 U.S.
18 5466035 BEARING #2, .002 U.S.
18 5466038 BEARING #2 .010 U.S.
19 5466030 BEARING #4, Std.
19 5466033 BEARING #4, .001 u.s.
19 5466036 BEARING #4, .002 u.s.
19 5466039 BEARING #4, .010 u.s.
20 0311208 FREEZE PLUG
21 1352537 KEY, Woodruff
22 1379555 BALANCER,Harmonic
23 0271582 BOLT,Balancer to crankshaft (5/8-18x1-3/8
24 1190368 WASHER, Balancer to crankshaft
25 1193967 SLINGER, Crankcase oil
26 1192916 SPROCKET, Crankshaft
27 1359707 CHAIN, Timing
28 1370740 CAMSHAFT
29 0125606 BOLT,Camshaft sprocket
30 1361789 ECCENTRIC, Fuel pump
31 1361749 GEAR, Distributor drive
32 1285607 WASHER
33 1359636 FLYWHEEL & RING GEAR
34 1359081 RING, Flywheel
35 1195077 SPROCKET, Camshaft
36 1377248 CONNECTING ROD, Less bearing
37 5458592 BEARING ASSEMBLY,Standard
37 5458595 BEARING ASSEMBLY,.001" u.s.
37 5458598 BEARING ASSEMBLY,.002" u.s.
37 5458686 BEARING ASSEMBLY,.010" u.s.
38 1396399 BOLT & NUT, Connecting rod
39 1193342 NUT,Connecting rod bolt
40 1357899 CRANKSHAFT
41 0381880 TIMING CHAIN COVER ASSEMBLY
42 0312449 SCREW, Cover to block
43 0312157 PACKING, Oil shedder
44 0312158 SHEDDER, Crankcase oil
45 0312160 PIN, Cover to block
46 0312162 GASKET, Cover
47 0306872 BOLT, Flywheel
48 0311852 PIPE
49 0310969 DOWEL
50 0980382 ADAPTER HOUSING This part replaces 0382815.
51 0307546 STUD
51 0310872 STUD
52 0160280 DRIVE SCREW
53 0309614 DOWEL
55 0314683 COUPLING This part replaces 0310884.
56 0379757 DRAIN COCK
57 0312861 SCREW, Cable ground
58 0307001 L'WASHER, Stud c'case
59 0330151 CLAMP, Harness to oil tank boss This part replaces 0310440.
60 0310896 SCREW
1196497 1196497 MAIN BEARING SET,Standard
1396499 1396499 MAIN BEARING SET,.001" u.s.
1396501 1396501 MAIN BEARING SET,.002" u.s.
1396503 1396503 MAIN BEARING SET,.010" u.s.
