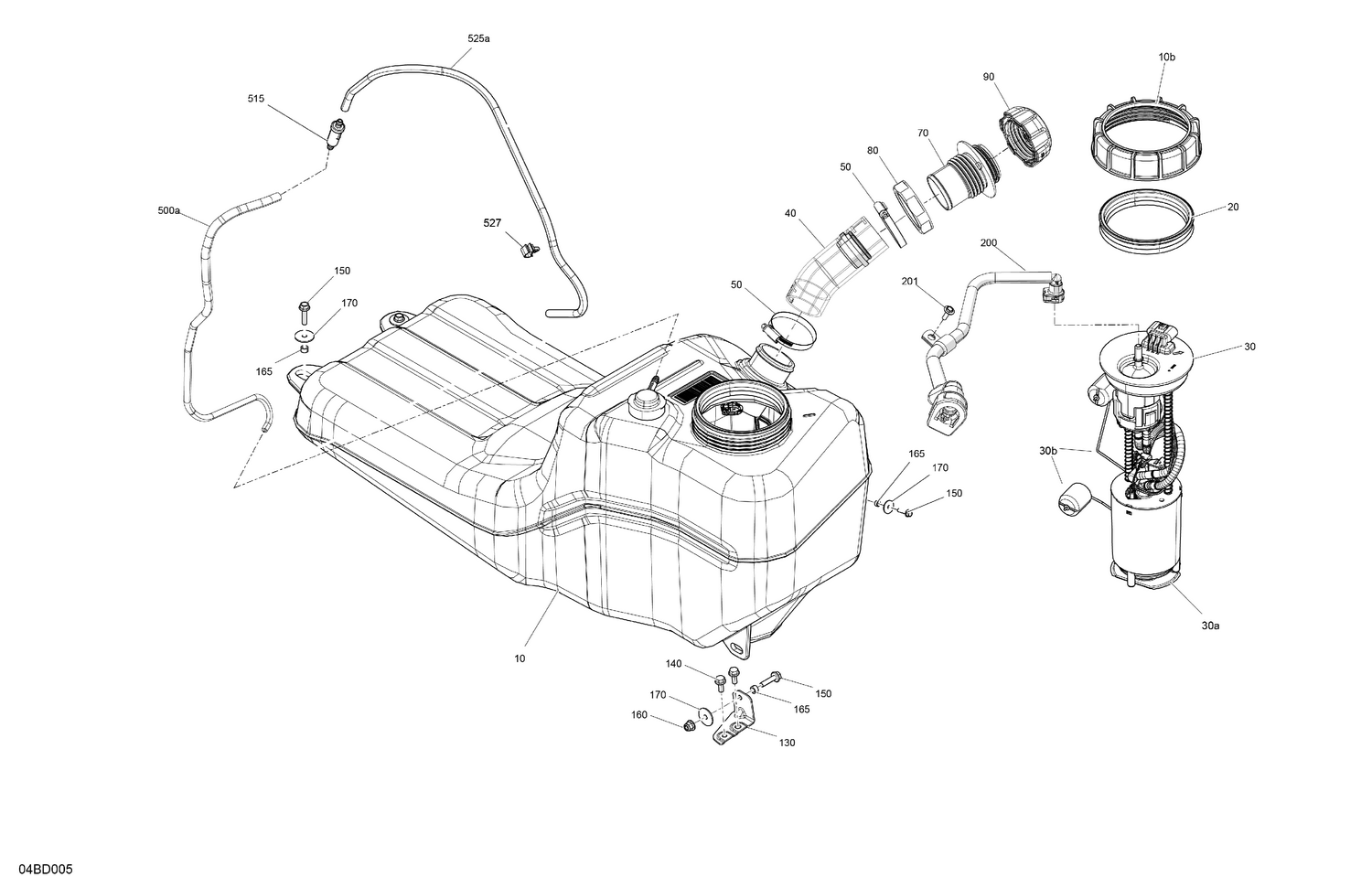

02- Engine - Fuel
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709001206 | Hose Fuel Tank Ass'y |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 130 | 709001453 | Fuel Tank Support |
| 140 | 207661644 | Hex. Flange Screw M6 X 16 |
| 150 | 207662554 | Hex. Flange Screw M6 X 25 |
| 160 | 233261466 | Hex. Flange Elastic Nut M6 |
| 165 | 293900135 | Spacer |
| 170 | 250200029 | Washer M6 |
| 200 | 709001359 | Formed Hose |
| 201 | 250000959 | Screw PT Type K-50 X 16 |
| 500a | 219704389 | Polyurethane Hose 4000MM Long |
| 515 | 709001120 | Filter |
| 525a | 219704389 | Polyurethane Hose 4000MM Long |
