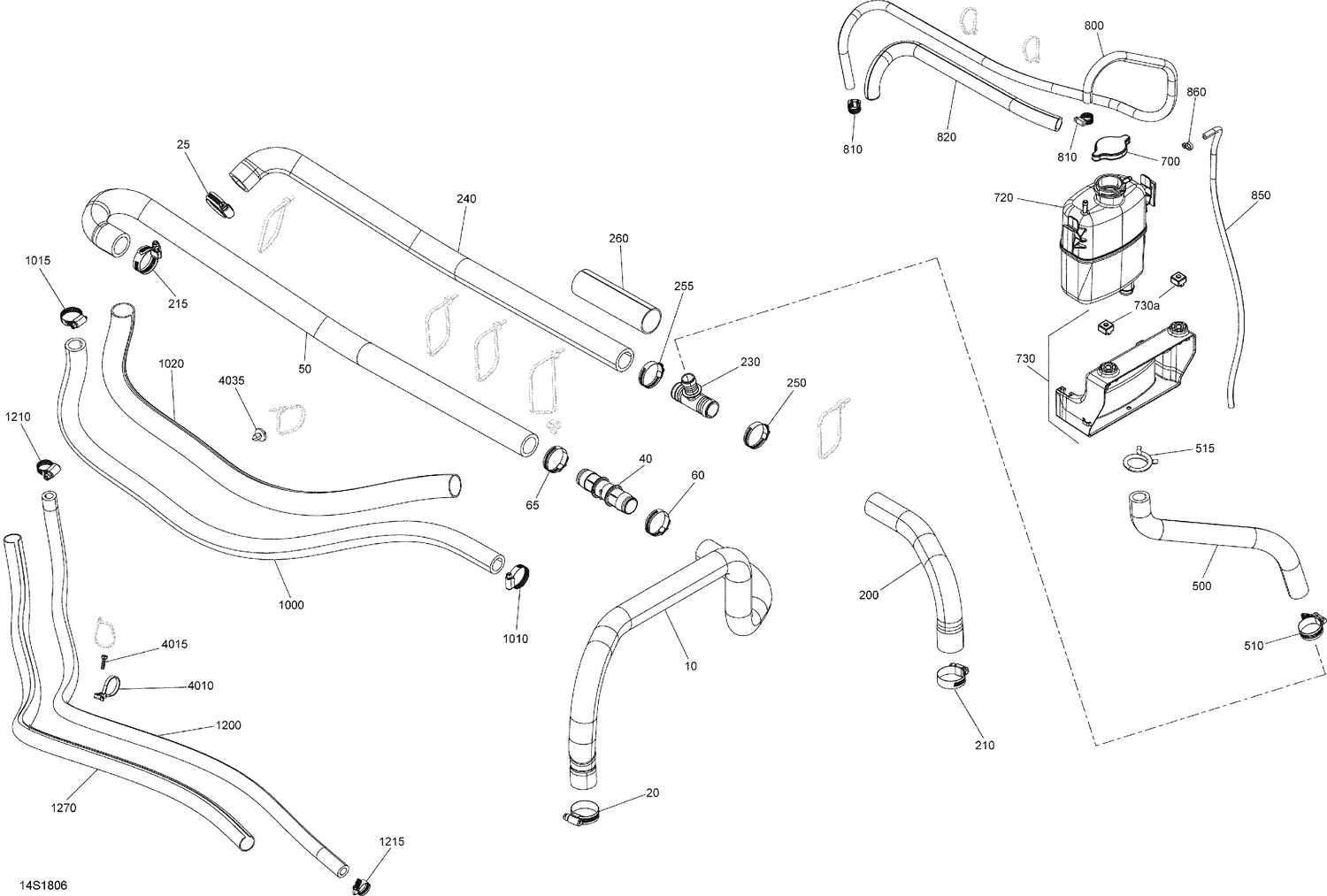

01- Cooling 900 HO ACE
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000414 | Radiator Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 40 | 509000914 | Fitting |
| 50 | 276000403 | Formed Hose |
| 60 | 293650185 | Tridon Gear Clamp |
| 65 | 293650185 | Tridon Gear Clamp |
| 200 | 276000404 | Formed Hose |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 230 | 509000372 | T-Fitting |
| 240 | 276000452 | Formed Hose This part replaces 276000401. |
| 250 | 293650185 | Tridon Gear Clamp |
| 255 | 293650185 | Tridon Gear Clamp |
| 260 | 219704428 | Tubing 35 MM 1000MM Long |
| 500 | 276000402 | Formed Hose |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 700 | 276000086 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 730a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 800 | 219704362 | Was 276000394 Hose 6.4 mm |
| 810 | 293650170 | Tridon Gear Clamp |
| 815 | 293650170 | Tridon Gear Clamp |
| 820 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1010 | 293650051 | Tridon Gear Clamp |
| 1015 | 293650051 | Tridon Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650172 | Tridon Gear Clamp |
| 1215 | 293650172 | Tridon Gear Clamp |
| 1220 | 219704423 | Was 515175319 Tubing 22 mm |
| 1270 | 219704423 | Was 515175319 Tubing 22 mm |
| 4035 | 293730040 | Mount Dart |
