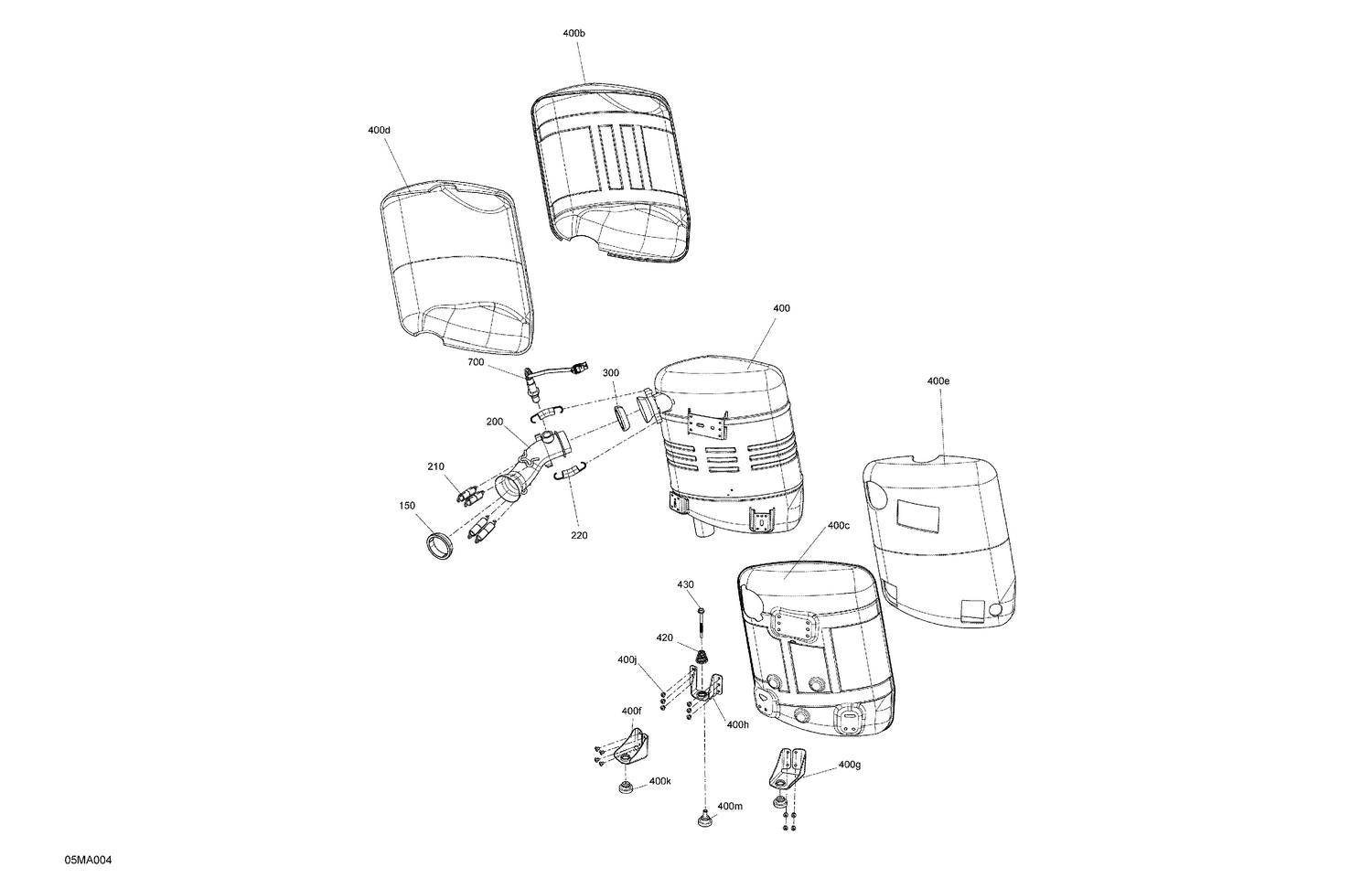

02- Engine - Exhaust
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514054174 | Exhaust Gasket |
| 200 | 514055466 | Pipe |
| 210 | 707601834 | Spring |
| 220 | 514055198 | Spring |
| 300 | 514054174 | Exhaust Gasket |
| 400b | 514055981 | RH Deflector |
| 400c | 514056061 | LH Deflector |
| 400d | 514055711 | RH Wool |
| 400e | 514056021 | LH Wool |
| 400f | 514056022 | Front Muffler Support |
| 400g | 514056038 | Rear Muffler Support |
| 400h | 514056055 | Support |
| 400j | 390402200 | Pop Rivet 3/16" |
| 400k | 514055203 | Stopper |
| 400m | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
