Home / BRP / EVINRUDE / 1999 / 40 / 10- Electrical Harness, Front Section XT

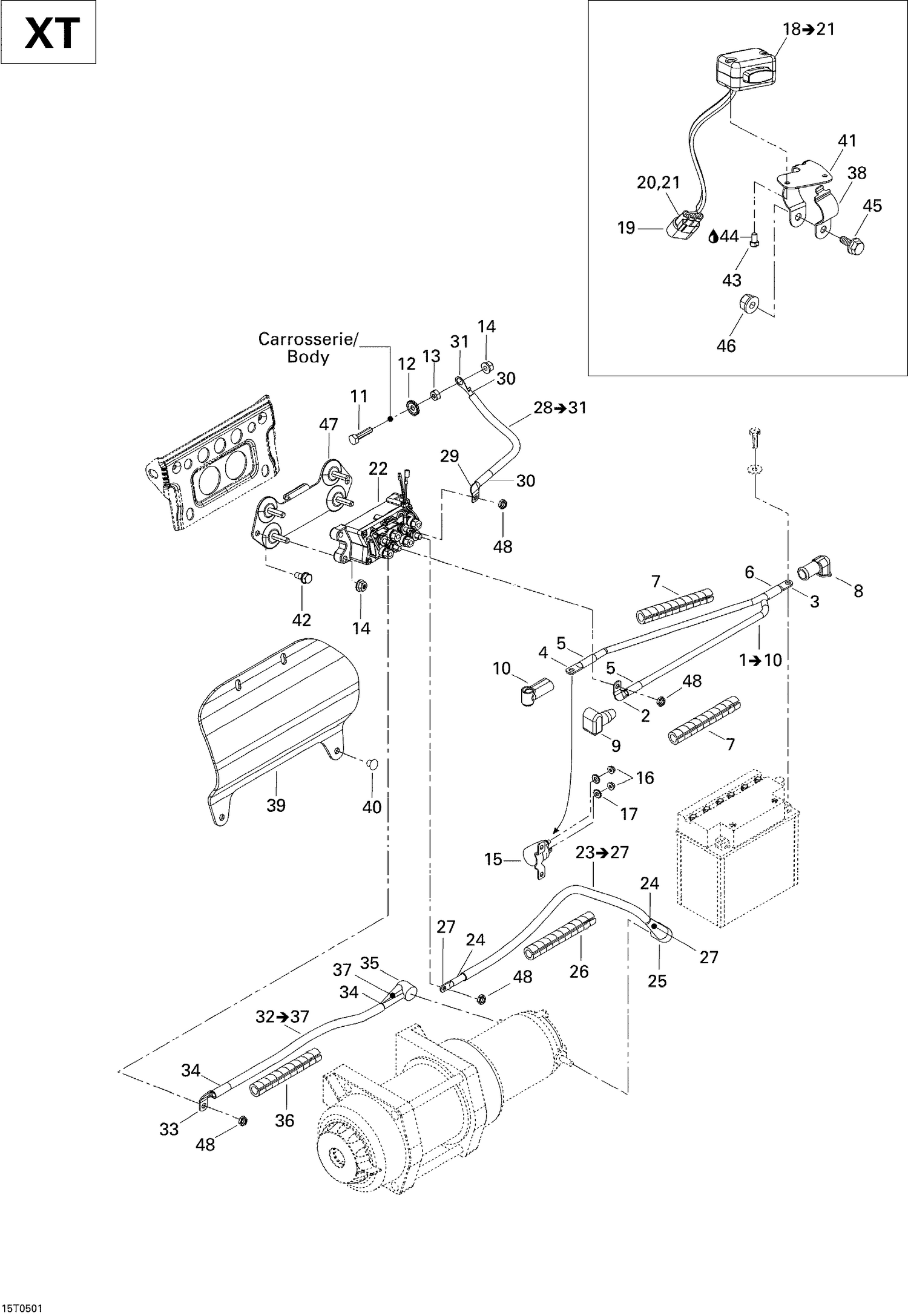

10- Electrical Harness, Front Section XT

10- Electrical Harness, Front Section XT

Parts (42)

RefPart NumberDescription
2 710000475 TERMINAL_FEMALE - Call your local BRP dealership
3 710000478 FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership
4 710000479 Flat Open Barel 6.6 mm
5 219704447 Was 710000483 Heat Shrink Tubing
6 275500578 Shrink Tubing
7 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
8 710001829 Protector Cap This part replaces 710000516.
9 710000523 Protector Cap
10 710000527 Protector Cap
11 207162044 Hex. Screw M6 X 20
12 234461608 External Serrated Lock Washer 6 mm
13 232061414 Hex. Nut M6
14 233261414 Hex. Flange Elastic Nut M6 x 1.0
15 515176011 Starter Relay
16 232061414 Hex. Nut M6
17 234161601 Lock Washer Helical M6
19 278000281 Female Terminal Housing, 3 Circuits
20 278000222 Male Terminal
21 278001065 Wire Seal
22 710001000 Winch Solenoid This part replaces 710000826.
24 219704447 Was 710000483 Heat Shrink Tubing
25 710000494 Protector Cap
26 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
27 710000530 Open Barrel
29 710000475 TERMINAL_FEMALE - Call your local BRP dealership
30 219704447 Was 710000483 Heat Shrink Tubing
31 710000530 Open Barrel
33 710000476 OPEN BARREL, 6.6 MM - Call your local BRP dealership
34 219704447 Was 710000483 Heat Shrink Tubing
35 710000494 Protector Cap
36 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
37 710000530 Open Barrel
38 710000566 Collar
39 710000511 Protector Pad
40 293730011 Black, Dart
41 710000564 Support, Black
42 210261050 Hex. Forming Screw M6 X 10 This part replaces 210261080.
43 250000153 Hex. Cap Screw 6-32 X 1/4"
44 293800060 Loctite 243, 10 ml
45 207661654 Hex. Flange Screw M6 X 16 This part replaces 207661684.
46 233261494 Hex. Flange Elastic Nut M6
47 710000535 SOLENOID SUPPORT, BLACK - Call your local BRP dealership
