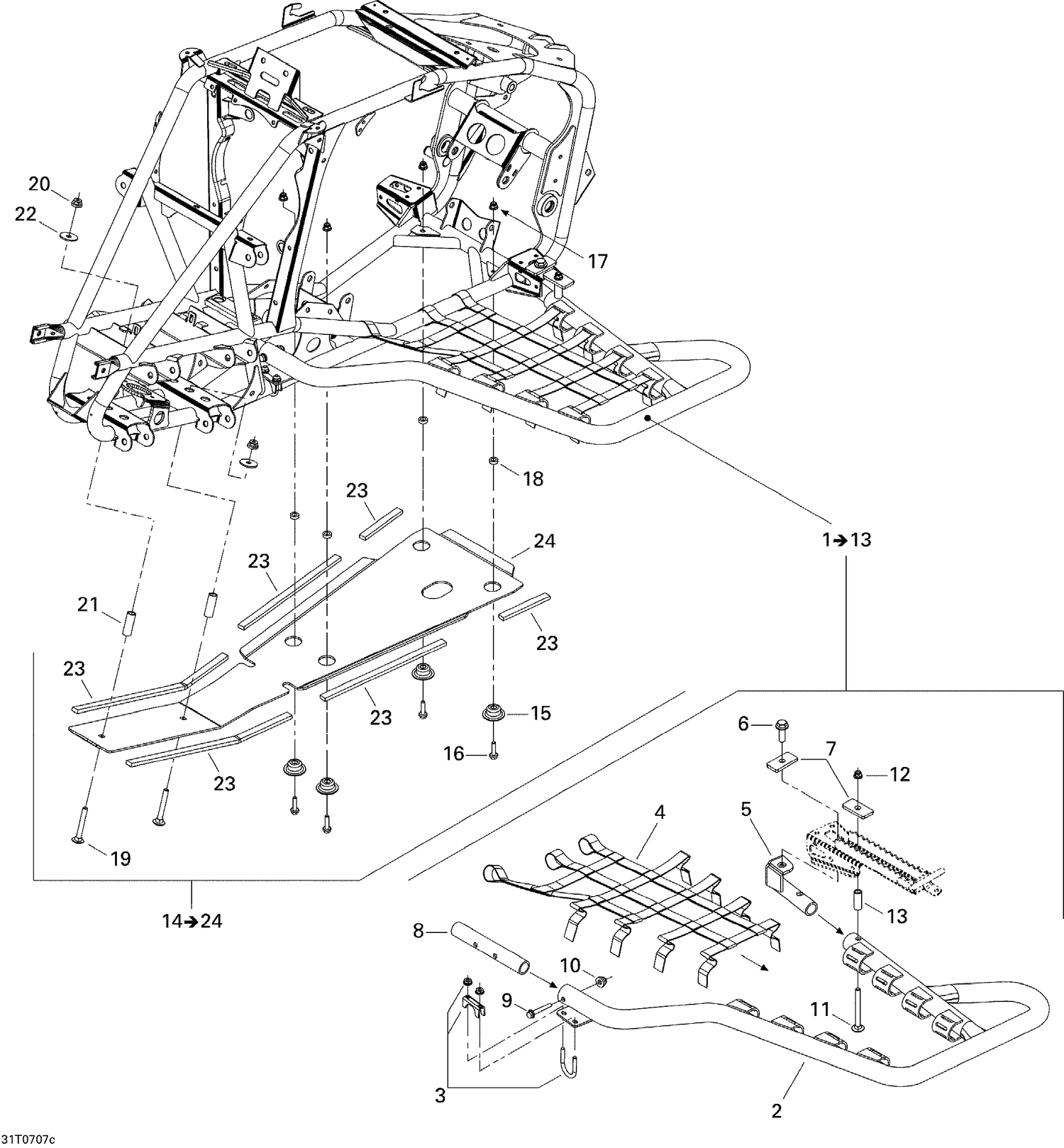

09- Body And Accessories
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705001134 | RH NERF BAR - Call your local BRP dealership |
| 2 | 705001135 | LH Nerf Bar |
| 3 | 705001136 | U-bolt Ass'y |
| 4 | 705001137 | RH NET - Call your local BRP dealership |
| 4 | 705001138 | LH NET - Call your local BRP dealership |
| 5 | 705001139 | RH Support |
| 5 | 705001140 | LH SUPPORT - Call your local BRP dealership |
| 6 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 7 | 705001141 | PLATE - Call your local BRP dealership |
| 8 | 705001142 | SUPPORT - Call your local BRP dealership |
| 9 | 207664544 | Hex. Flange Screw M6 X 45 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 207788044 | M8 X 80 CARRIAGE BOLT - Call your local BRP dealership |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 503189064 | BUSHING - Call your local BRP dealership |
| 15 | 705200533 | CUP - Call your local BRP dealership |
| 16 | 207662544 | Hex. Flange Screw M6 X 25 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 293900028 | Bushing |
| 19 | 207786044 | Carriage Bolt M8 X 60 |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 293900051 | Bushing |
| 22 | 224081301 | Flat Washer |
| 23 | 219704364 | Neoprene Seal (1PAC=3M) |
