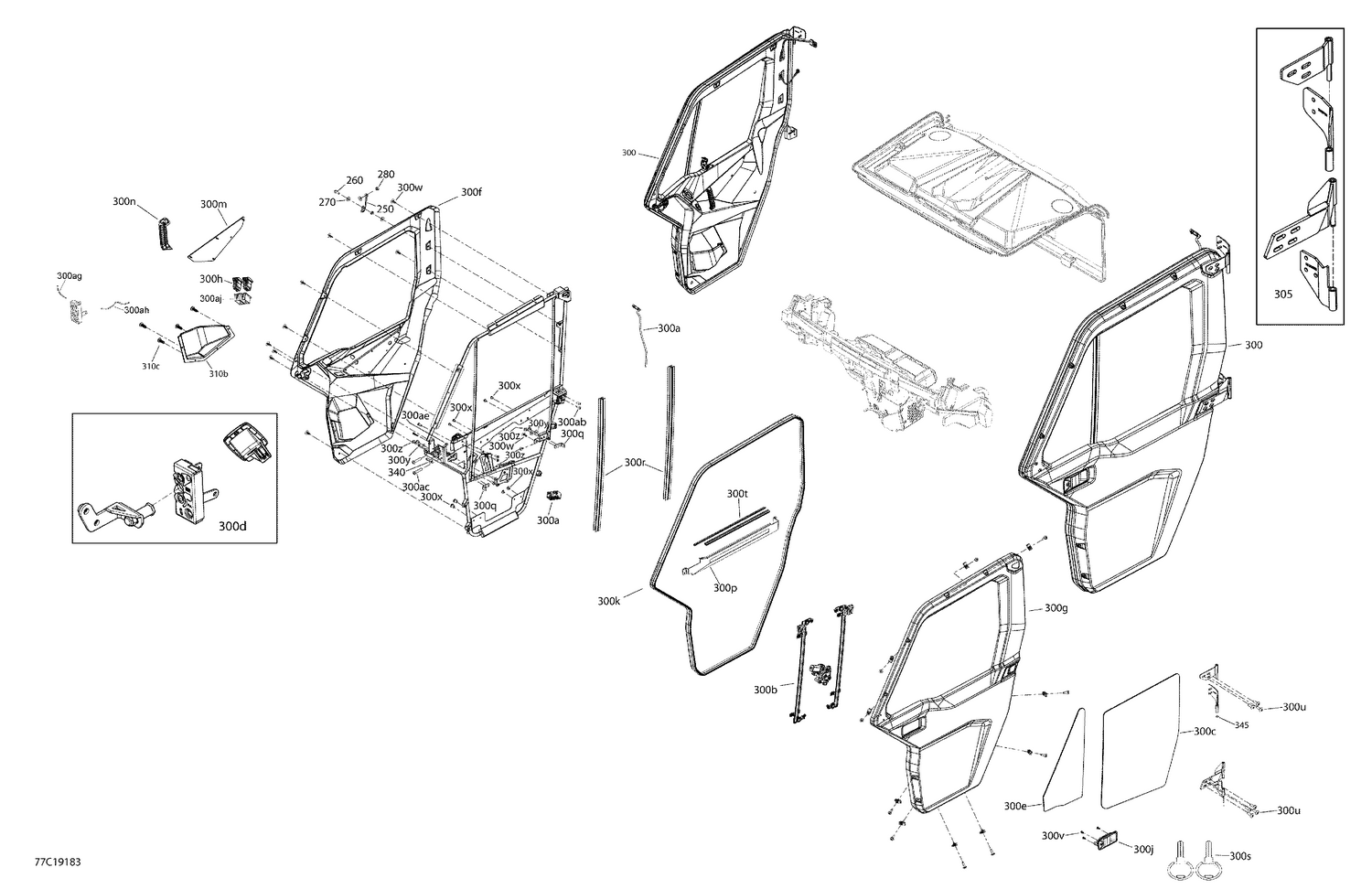

09- Enclosure Cab - HD10 - XT CAB - North America - Front Doors Section
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 250 | 703500982 | Door Limit Device Kit |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 270 | 234062670 | Stainless Steel Flat Washer |
| 280 | 708300737 | Bushing |
| 300a | 705800047 | Driver Door Harness |
| 300a | 705800050 | Passenger Door Harness |
| 300ab | 250000616 | Black, Socket Screw, M6 X 16 S.Grip |
| 300ac | 205484060 | Socket Head Screw M8 X 40 |
| 300ae | 233281466 | Elastic Flange Nut M8 |
| 300ag | 715900493 | LH Latch Cable 2.4'' |
| 300ag | 715900494 | RH Latch Cable 2.9'' |
| 300ah | 715900504 | Interior Latch Cable 28'' |
| 300aj | 715900526 | LH Power Window Switch Housing |
| 300aj | 715900527 | RH Power Window Switch Housing |
| 300b | 705800046 | LH Window Actuator |
| 300b | 705800051 | RH Window Actuator |
| 300c | 705800016 | LH Roll-Down Glass |
| 300c | 705800025 | RH Roll-Down Glass |
| 300d | 703500915 | LH Interior Latch Kit |
| 300d | 703500916 | RH Interior Latch Kit |
| 300e | 705800044 | A-Pillar Glass LH |
| 300e | 705800052 | A-Pillar Glass RH |
| 300f | 705800322 | LH Routed Inner Door |
| 300f | 705800323 | RH Routed Inner Door |
| 300g | 705800407 | Lh Door Outer Panel This part replaces 705800320. |
| 300g | 705800408 | Rh Door Outer Panel This part replaces 705800321. |
| 300h | 710004979 | Window Switch This part replaces 705800048. |
| 300j | 705800015 | Exterior Paddle Latch |
| 300k | 705800289 | Seal 705800290 - 5000 MM |
| 300m | 715003568 | Door Panel Kit RH |
| 300m | 715006687 | LH Door Panel Kit This part replaces 715003567. |
| 300n | 705800324 | LH Interior Handle |
| 300n | 705800325 | RH Interior Handle |
| 300p | 705800411 | Door Frame Bracket Lh This part replaces 705800148. |
| 300p | 705800412 | Door Frame Bracket Rh This part replaces 705800149. |
| 300q | 705800150 | Window Guide Bracket |
| 300r | 705800590 | Window Guide Extrusion This part replaces 705800151. |
| 300s | 705800184 | Key Set |
| 300t | 705800293 | Flocked Beltline Trim 705800294 - 600 MM |
| 300u | 250000874 | Torx Truss M8 X 25 |
| 300v | 205951046 | Socket Head Screw M5 X 10 |
| 300w | 293730011 | Black, Dart |
| 300x | 205460860 | Socket Screw M6 X 8 |
| 300y | 234062670 | Stainless Steel Flat Washer |
| 300z | 250000995 | Torx-truss M/s M6 X 10 This part replaces 250000747. |
| 305 | 703500917 | LH Hinge Kit |
| 310b | 705800604 | LH Door Pocket This part replaces 705800145. |
| 310c | 705009405 | Plastic Dart |
| 340 | 250000874 | Torx Truss M8 X 25 |
| 345 | 293370125 | Retaining Ring |
| 405 | 703500918 | RH Hinge Kit |
| 410b | 705800605 | RH Door Pocket This part replaces 705800146. |
| 410c | 705009405 | Plastic Dart |
