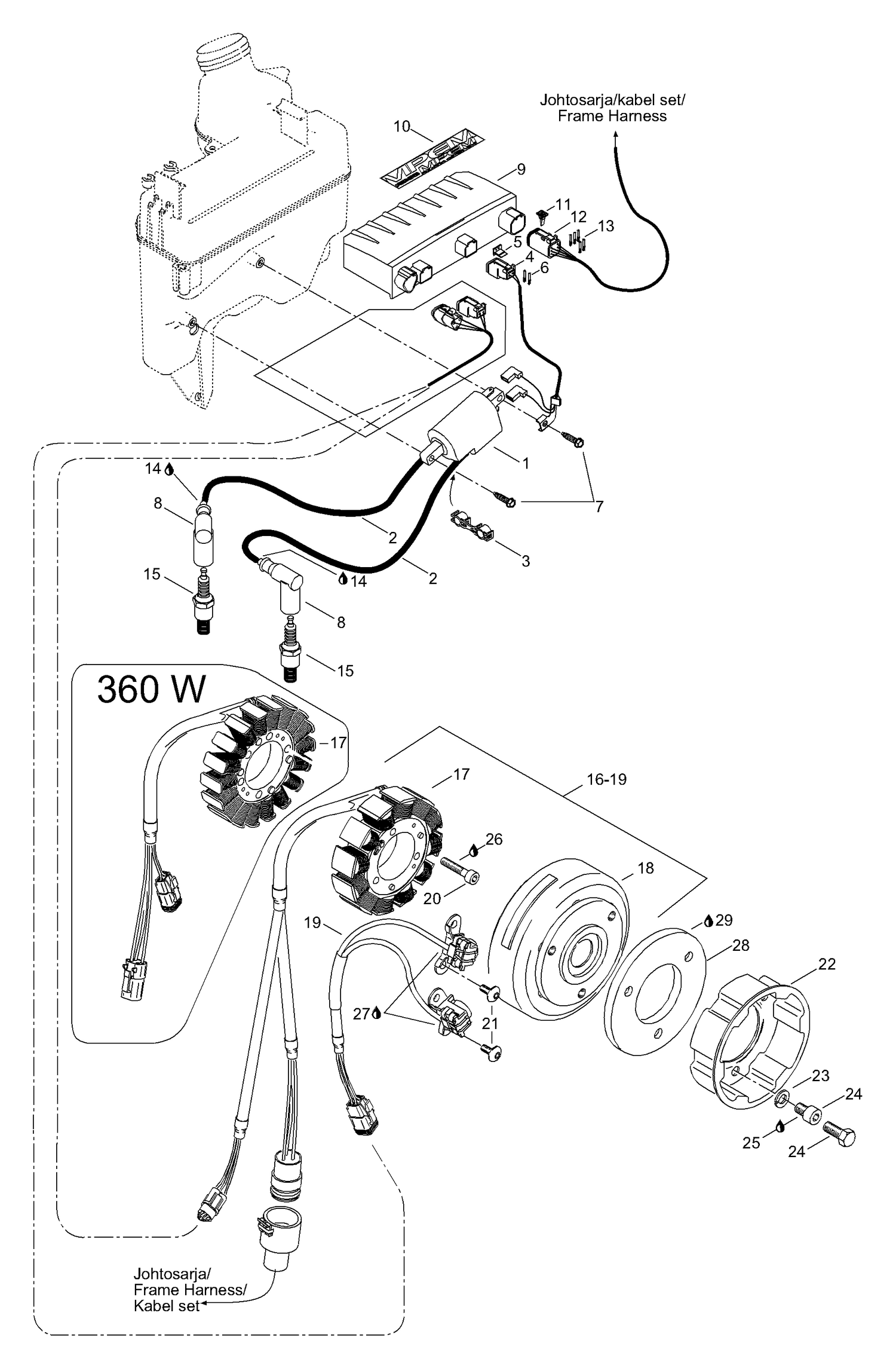

03- Magneto
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059512 | Ignition coil assy |
| 2 | 512059486 | CABLE ASSY, 455 MM - Call your local BRP dealership |
| 2 | 512059696 | Spark plug wire 375 mm This part replaces 512059485. |
| 3 | 410914600 | Plastic clip |
| 4 | 409207300 | Female terminal housing |
| 5 | 409207100 | FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 6 | 278000632 | Female terminal |
| 7 | 40375 | Screw |
| 8 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 9 | 512059644 | Calibration module |
| 10 | 516000245 | Label, MPEM |
| 11 | 515175705 | Female lock (6 circuits) |
| 12 | 515175673 | Female terminal housing |
| 13 | 278000632 | Female terminal |
| 14 | 293550004 | Dielectric grease, 140g |
| 15 | 512059533 | Spark Plug NGK BR9ECS-5 |
| 17 | 420888617 | Stator assy |
| 18 | 420888628 | Magneto flywheel |
| 19 | 410922948 | Pickup Ass'y This part replaces 420966803. |
| 20 | 205063044 | Allen screw M6x30 |
| 21 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 22 | 420852533 | Starting Pulley This part replaces 420852532. |
| 23 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 24 | 207182044 | Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 25 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 26 | 293800060 | Loctite 243, 10 ml This part replaces 420897651. |
| 27 | 420297710 | PU-glue, sikaflex 255 |
| 28 | 420866756 | Flywheel |
