| Ref | Part Number | Description |
|---|
| BN1 |
278001392 |
Open Barrel Terminal |
| BN1 |
515177246 |
Shrink Tubing, 6 mm |
| BP1 |
278001392 |
Open Barrel Terminal |
| BP1 |
515177246 |
Shrink Tubing, 6 mm |
| BP2 |
710007033 |
Cap Battery Cable |
| CL |
278002860 |
Sealing Cap |
| CL |
515178349 |
Female Terminal 22 AWG |
| CL |
515179227 |
Female Molex Connector 20 Cavities |
| CONSOLE |
IC |
F 710001226 Housing 710001226 |
| D2 |
409012700 |
Diode |
| DC1 |
710005373 |
Housing |
| DC1 |
710005518 |
Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| FP |
710001873 |
Terminal This part replaces 710001765. |
| FP |
710003153 |
Seal |
| FP |
710006214 |
Lock |
| FRONT |
FW |
IC FAN F 278002185 Male Housing, 4 Circuits 278002185 |
| IMU |
710001118 |
Wire Seal |
| IMU |
710003730 |
Housing |
| IMU |
710003862 |
Female Terminal |
| PF1 |
278000216 |
Wire Seal |
| PF1 |
278000218 |
Wire Seal |
| PF1 |
278001065 |
Wire Seal |
| PF1 |
278002578 |
Female Terminal |
| PF1 |
278003448 |
Fuse Base Ass'y |
| PF1 |
278003553 |
Fuse Cover |
| PF1 |
293300198 |
Seal |
| PF1 |
515177177 |
Female Terminal |
| PF1 |
710000048 |
Wire Seal |
| PF1 |
710000918 |
Female Terminal |
| PF1 |
710008308 |
Fuses Decal |
| PF2 |
2 |
SP1 278002389 Little Fuse, 25 Ampere 278002389 |
| PF2 |
278000218 |
Wire Seal |
| PF2 |
278001065 |
Wire Seal |
| PF2 |
278002578 |
Female Terminal |
| PF2 |
293300198 |
Seal |
| PF2 |
710000890 |
Female Terminal |
| PF2 |
710000918 |
Female Terminal |
| PF2 |
710005623 |
Fusebox Ass'y |
| PF2 |
710007491 |
Cover This part replaces 710004120. |
| PF2 |
710008309 |
Fuses Decal |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| POST |
CUP |
ACC+ 710008805 Terminal Eyelet 710008805 |
| POST |
DASH |
RING- 515177246 Shrink Tubing, 6 mm 515177246 |
| PPS |
IC |
F 710001951 Housing 710001951 |
| REAR |
FW |
IC GND F 278001007 Insulated Sheath 278001007 |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001152 |
Lock |
| SS |
710001163 |
Wire Seal |
| SS |
710001164 |
Female Terminal |
| TO |
BN |
BODY 515177246 Shrink Tubing, 6 mm 515177246 |
| 4X4 |
ACT |
SENSR F 278003442 Female Terminal Housing, 3 Circuits 278003442 |
| 300 |
710007487 |

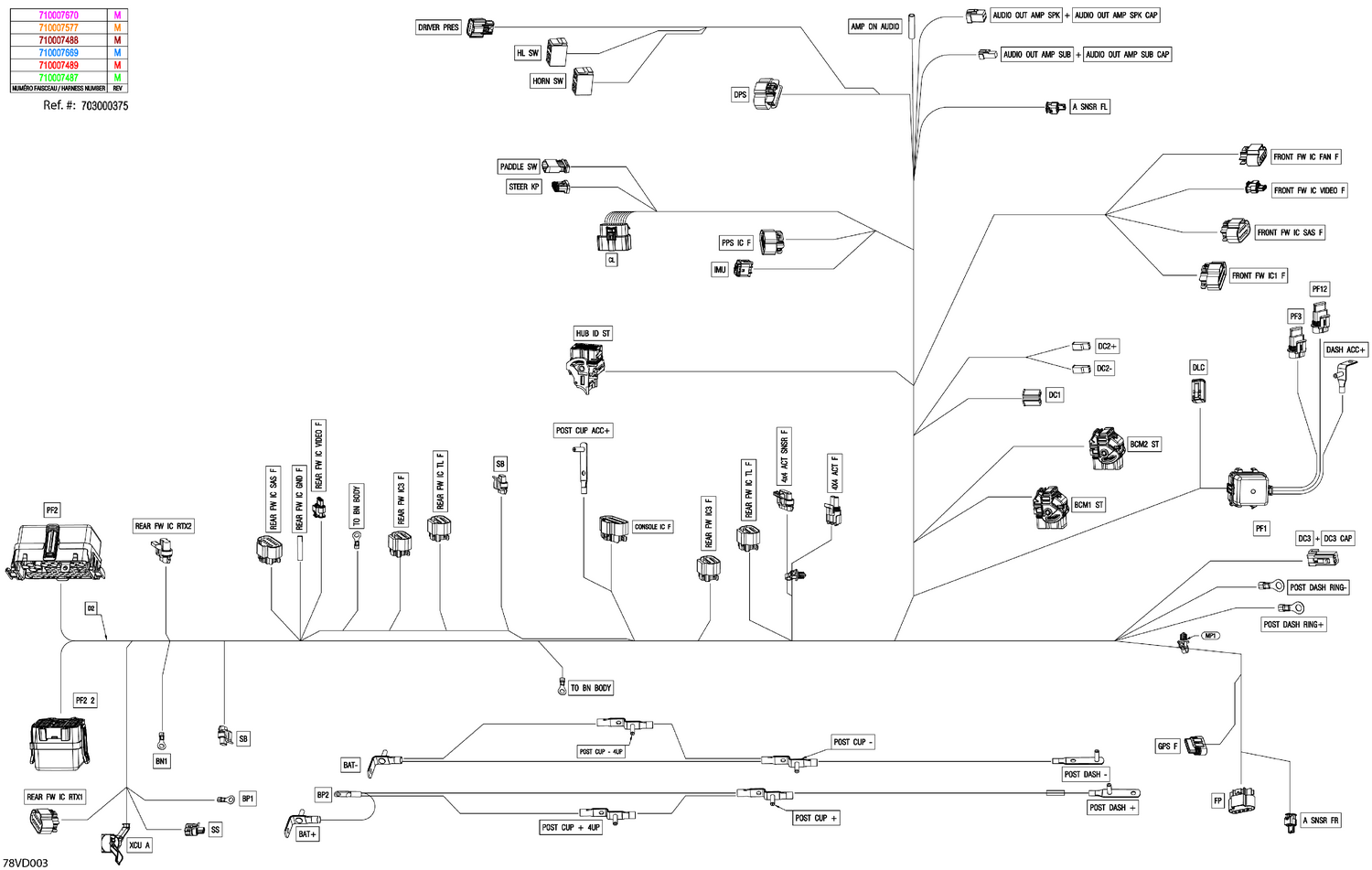

Main Wiring Harness |
