Home / BRP / Can-Am ATV / 2008 / Outlander / Outlander 500 STD, 2008 0002T8A00 0002T8C00 0002T8D00 0002T8E00 0002T8F00 / 10- Electrical System STD

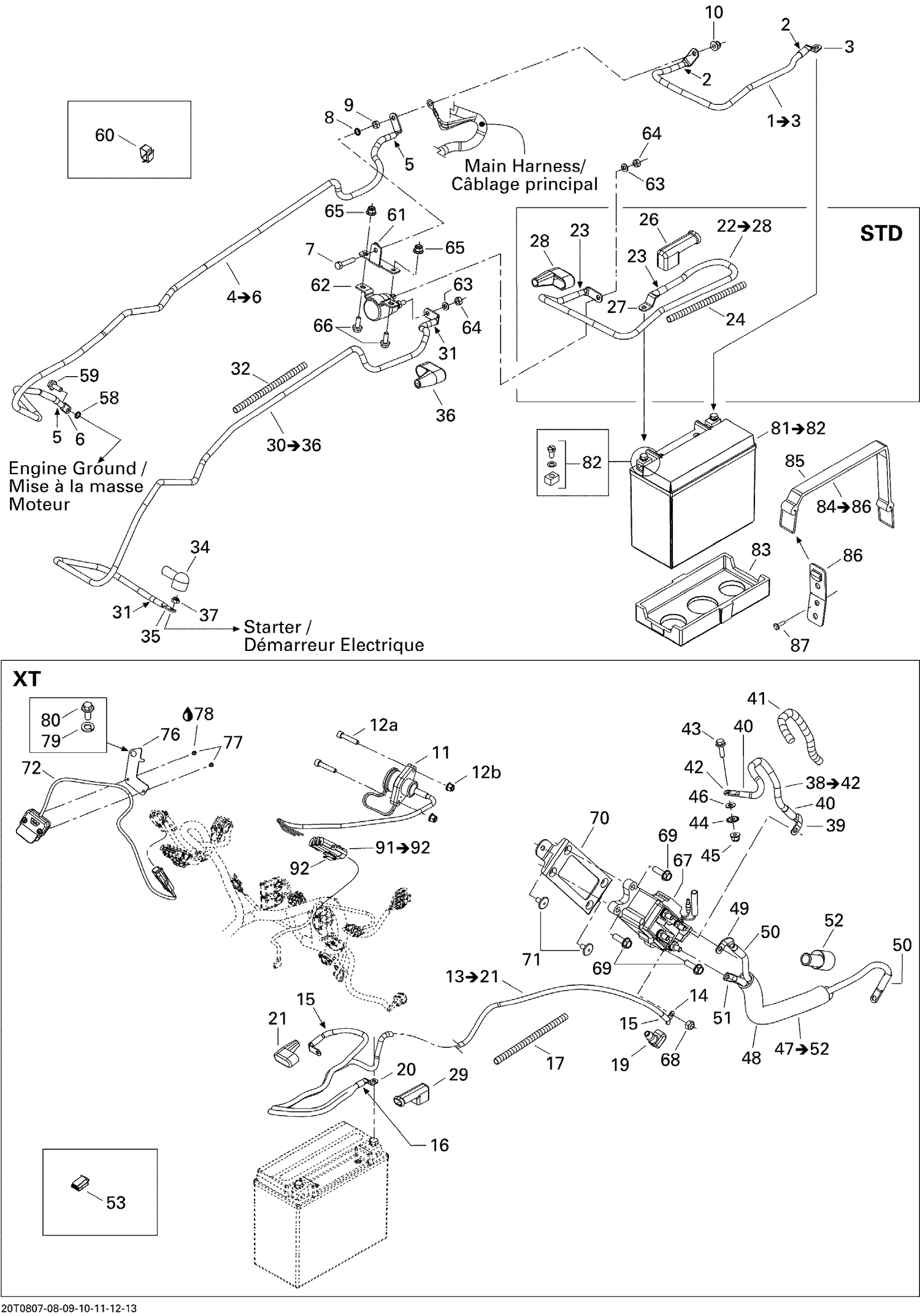

10- Electrical System STD

10- Electrical System STD

Parts (68)

RefPart NumberDescription
2 219704447 Was 710000483 Heat Shrink Tubing
3 710000518 Open Barrel
5 219704447 Was 710000483 Heat Shrink Tubing
6 710000530 Open Barrel
7 207162544 Hex. Screw M6 X 25
8 234461608 External Serrated Lock Washer 6 mm
9 232061414 Hex. Nut M6
10 233061414 Hex. Flange Nut M6
11 XXX Not Available As Spare Parts
12a XXX Not Available As Spare Parts
12b XXX Not Available As Spare Parts
13 XXX Not Available As Spare Parts
14 XXX Not Available As Spare Parts
15 XXX Not Available As Spare Parts
16 XXX Not Available As Spare Parts
17 XXX Not Available As Spare Parts
19 XXX Not Available As Spare Parts
20 XXX Not Available As Spare Parts
21 XXX Not Available As Spare Parts
29 XXX Not Available As Spare Parts
31 219704447 Was 710000483 Heat Shrink Tubing
32 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
34 710000526 Protector Cap
35 710000530 Open Barrel
36 710001817 Protector Cap This part replaces 710000902.
37 232561414 Elastic Stop Nut M6
38 XXX Not Available As Spare Parts
39 XXX Not Available As Spare Parts
40 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 XXX Not Available As Spare Parts
43 XXX Not Available As Spare Parts
44 XXX Not Available As Spare Parts
45 XXX Not Available As Spare Parts
46 XXX Not Available As Spare Parts
47 XXX Not Available As Spare Parts
48 XXX Not Available As Spare Parts
49 XXX Not Available As Spare Parts
50 XXX Not Available As Spare Parts
51 XXX Not Available As Spare Parts
52 XXX Not Available As Spare Parts
53 XXX Not Available As Spare Parts
58 234461608 External Serrated Lock Washer 6 mm
59 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
60 414227300 Clip
61 710001260 SOLENOID SUPPORT - Call your local BRP dealership
62 710007777 Starter Relay This part replaces 710001364.
63 234161601 Lock Washer Helical M6
64 232061600 Hex. Nut M6
65 233061414 Hex. Flange Nut M6
66 207661244 Hex. Flange Screw M6 X 12
67 XXX Not Available As Spare Parts
68 XXX Not Available As Spare Parts
69 XXX Not Available As Spare Parts
70 XXX Not Available As Spare Parts
71 XXX Not Available As Spare Parts
72 XXX Not Available As Spare Parts
76 XXX Not Available As Spare Parts
77 XXX Not Available As Spare Parts
78 XXX Not Available As Spare Parts
79 XXX Not Available As Spare Parts
80 XXX Not Available As Spare Parts
82 250000282 Battery Bolt Kit This part replaces 295500849.
83 710000279 INSULATOR PAD - Call your local BRP dealership
85 293850097 Retainer Strap
86 293850030 Strap Clip
87 390402400 Pop Rivet 3/16"
91 XXX Not Available As Spare Parts
