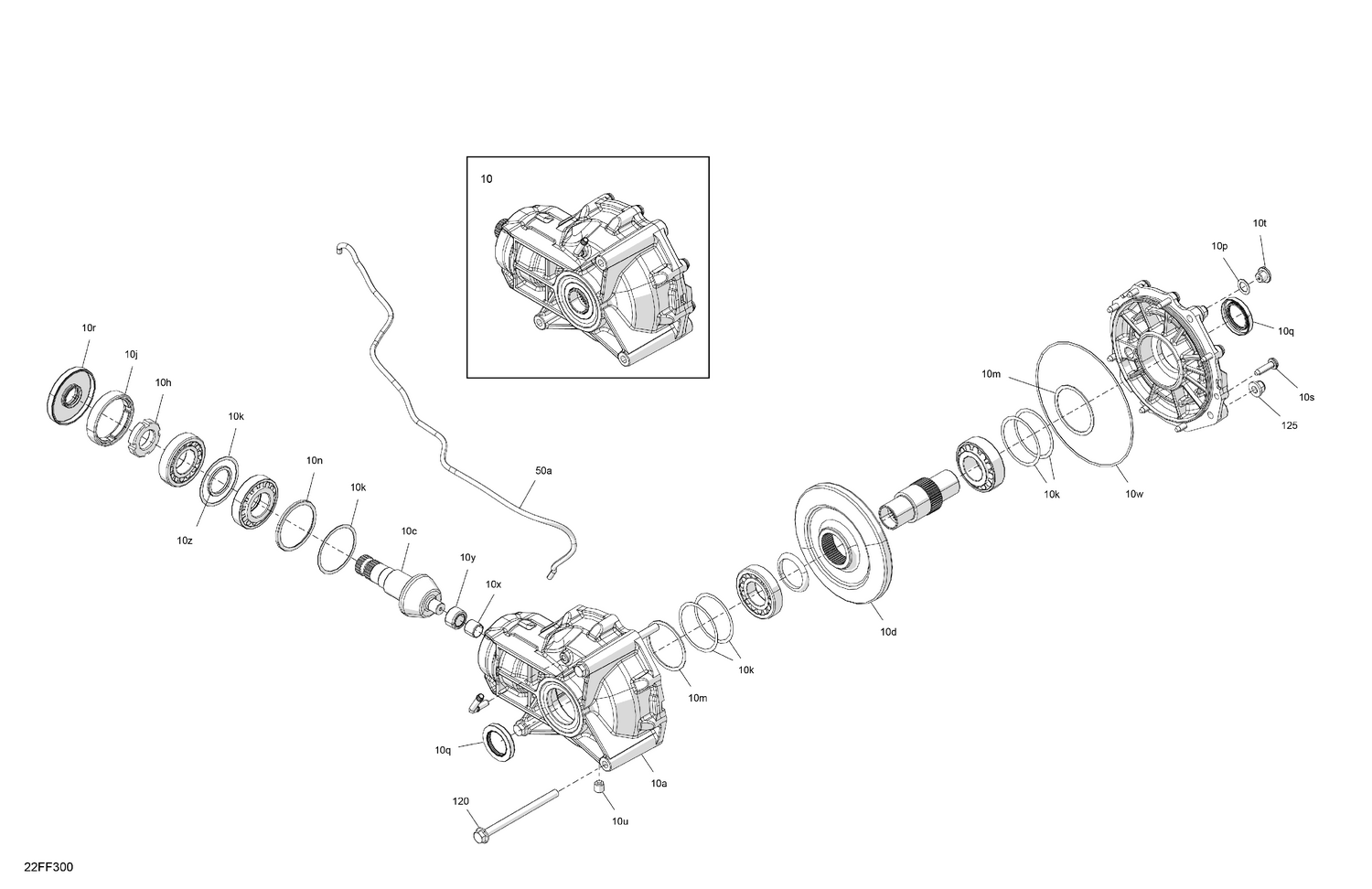

04- Drive - Final Drive Unit
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715500479 | Final Drive Cover |
| 10c | 715500481 | Final Drive Pinion |
| 10d | 715500482 | Helical Gear |
| 10f | 715500547 | Roller Bearing |
| 10g | 715500548 | Roller Bearing |
| 10h | 705501550 | Nut |
| 10j | 705501549 | Nut |
| 10k | 705501725 | Differential Shim |
| 10m | 705501555 | Differential Shim |
| 10n | 705501586 | Differential Shim |
| 10p | 715500485 | Washer |
| 10q | 715500486 | Gasket |
| 10r | 715500520 | Final Drive Gasket |
| 10s | 705502063 | Screw |
| 10t | 715500488 | Housing Fill Plug |
| 10u | 715500489 | Magnetic Drain Plug |
| 10w | 705503886 | O-Ring Seal |
| 10x | 705502181 | Inner Ring |
| 10y | 705501760 | Needle Bearing |
| 10z | 715500521 | Shim |
| 50a | 219704534 | Hose 6.35MM ID |
| 120 | 250001041 | Hex. Flange Screw M10 X 135 |
