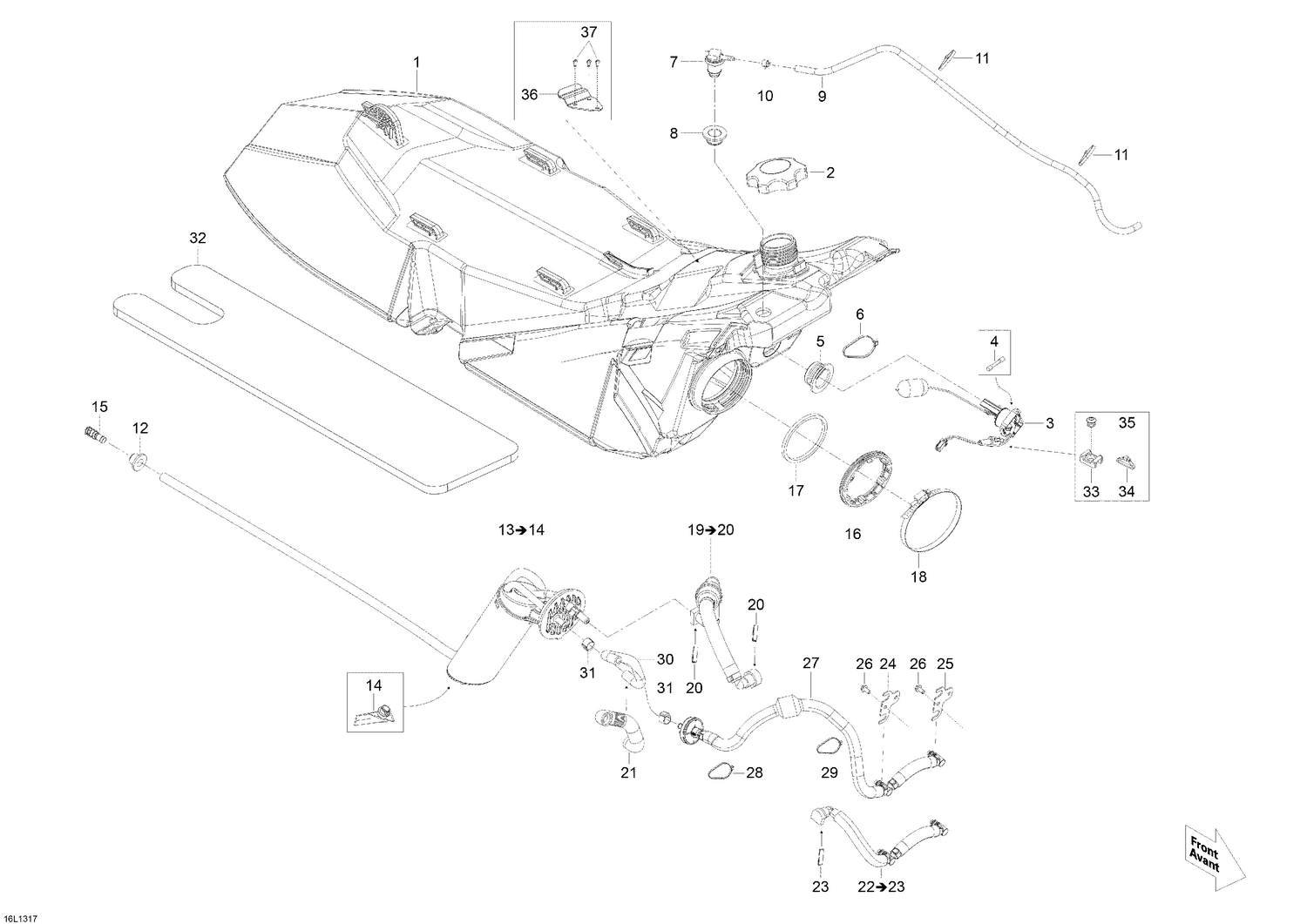

02- Fuel System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033700 | FUEL TANK 2012 - Call your local BRP dealership |
| 2 | 513033025 | Cap |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033642. |
| 4 | 710001995 | Fuse 0.5A |
| 5 | 513033606 | Grommet |
| 6 | 293750008 | Tie-Rap 368 mm |
| 7 | 513033842 | Check Valve This part replaces 513033188. |
| 8 | 513033596 | Grommet |
| 9 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 10 | 414554800 | Spring Clamp |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 280000674 | Grommet This part replaces 28037. |
| 14 | 415129451 | Fuel Filter, Pump |
| 15 | 414872100 | Fuel Filter, Hose |
| 16 | 513033180 | Ring |
| 17 | 513033334 | Gasket |
| 18 | 270000892 | Clamp |
| 20 | 513033135 | Locking Clip |
| 21 | 415080000 | Tubing 16mm |
| 23 | 513033135 | Locking Clip |
| 24 | 513033542 | Bracket RH |
| 25 | 513033593 | Bracket LH |
| 26 | 207551044 | Hex. Flange Screw M5 X 10 |
| 27 | 513033595 | HOSE ASS'Y - Call your local BRP dealership |
| 28 | 414115200 | Tie-Rap 180 mm |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 31 | 293650047 | Crimp Clamp, 15.3-706R |
| 32 | 513033588 | Insulating Foam |
| 33 | 515176795 | Tie Rap Mount (Screwable) |
| 34 | 293750002 | Tie-Rap 142 mm |
| 35 | 390402000 | Pop Rivet 3/16 |
| 36 | 510005129 | Seat Front Fastening Plate |
