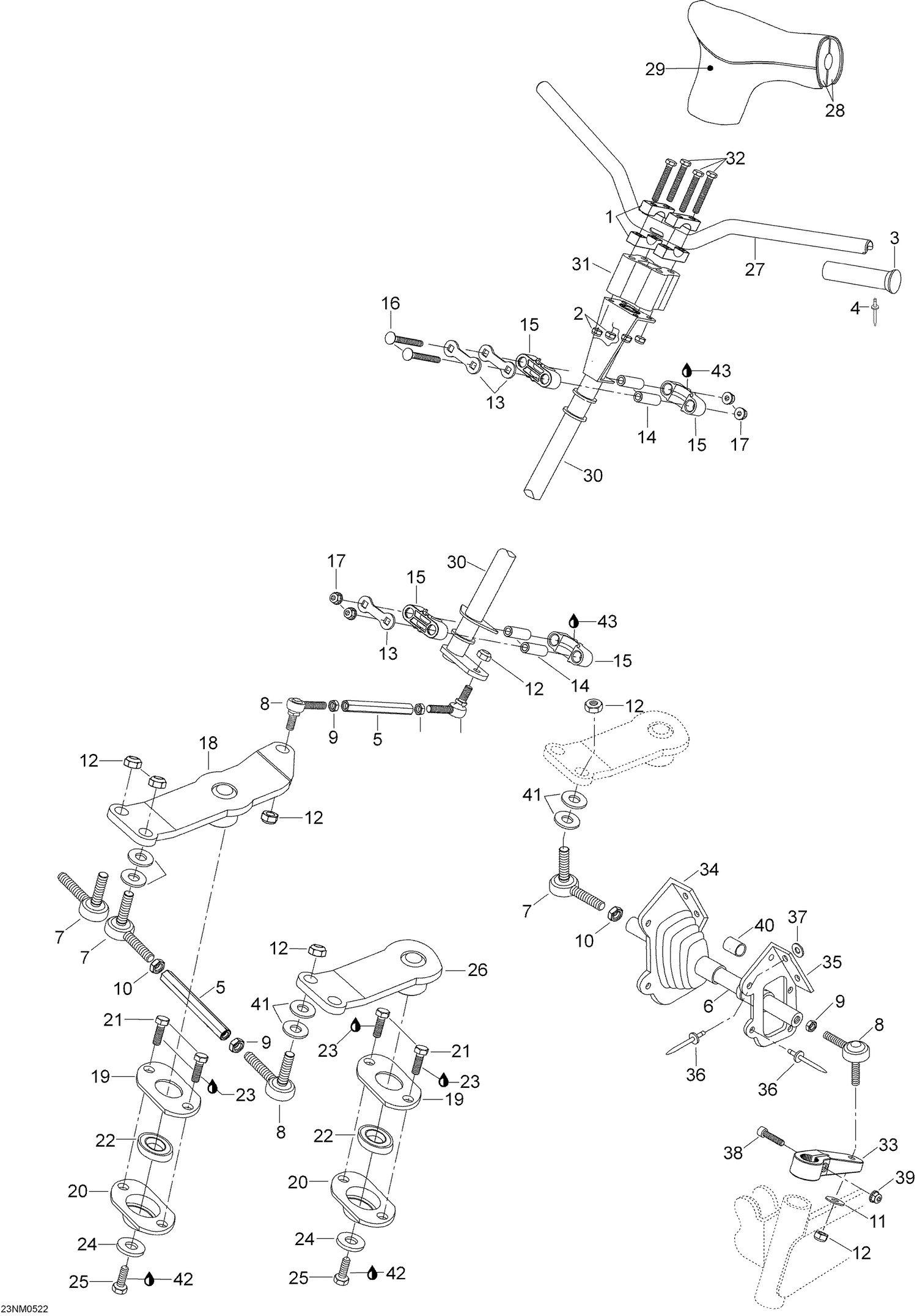

| Ref | Part Number | Description |
|---|
| 1 |
548448 |
Support of Bar - Call your local BRP dealership |
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 3 |
5340464 |
Grip |
| 4 |
36005 |
Rivet |
| 5 |
605448308 |
SHORT TIE ROD - Call your local BRP dealership |
| 7 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 8 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 9 |
33019 |
Nut M10 R.H. |
| 10 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 11 |
20105 |
Washer, hardened M10 |
| 12 |
33023 |
Nut elastic M10 |
| 13 |
506150600 |
Plate stopper |
| 14 |
506150500 |
Bushing-housing |
| 15 |
506150400 |
Half-housing |
| 16 |
207787044 |
Screw M8 x 70 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 18 |
605348402 |
RH WELDED LEVER - Call your local BRP dealership |
| 19 |
5345380 |
COVER PLATE - Call your local BRP dealership |
| 20 |
605350644 |
Bearing Support |
| 21 |
40337 |
Hex. screw M8 x 16 |
| 22 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 23 |
293800005 |
Loctite 271, 10ml |
| 24 |
5446279 |
Washer |
| 25 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 26 |
605348403 |
LH WELDED LEVER - Call your local BRP dealership |
| 27 |
605249033 |
HANDLE BAR - Call your local BRP dealership |
| 28 |
605250305 |
Foam, front part |
| 28 |
605250306 |
REAR PADDING STEERING - Call your local BRP dealership |
| 29 |
605248761 |
Cover |
| 30 |
605250189 |
MAIN TUBE - Call your local BRP dealership |
| 31 |
605349584 |
EXTENSION - Call your local BRP dealership |
| 32 |
40124 |
Socket head screw M8 x 100 |
| 33 |
5348261 |
Steering arm - Call your local BRP dealership |
| 34 |
570024800 |
R.H. Cap rod tie |
| 34 |
570024900 |
LH TIE ROD CAP - Call your local BRP dealership |
| 35 |
517241200 |
R.H. plate-cap |
| 35 |
517241300 |
LH CAP PLATE - Call your local BRP dealership |
| 36 |
36036 |
Rivet |
| 37 |
20008 |
Washer A5,3 |
| 38 |
40828 |
Socket head screw M8 x 35 |
| 39 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 40 |
572036500 |
BUSHING - Call your local BRP dealership |
| 42 |
293800060 |
Loctite 243, 10ml |
