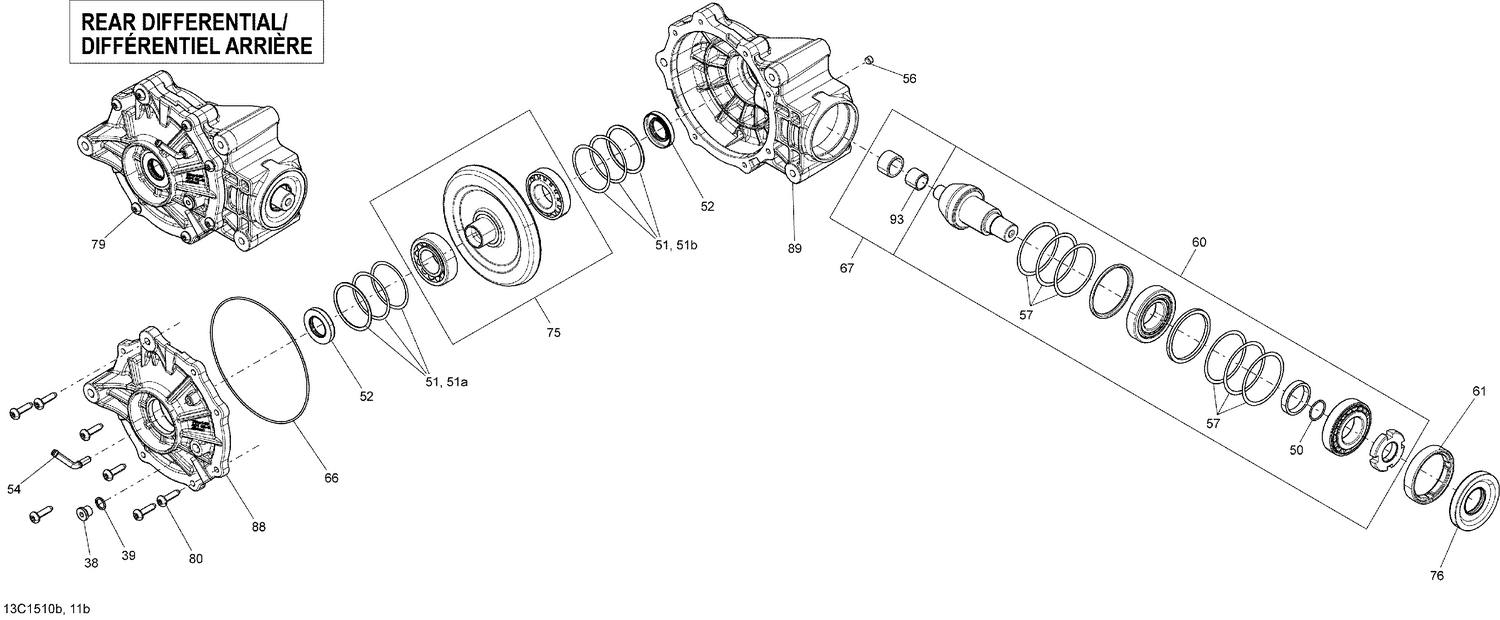

08- Drive System, Rear _Differential_13C1510b
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 38 | 705500504 | Fill Level Plug |
| 39 | 705500506 | Copper Washer |
| 50 | 705501554 | O-Ring |
| 51 | 703500839 | Differential Shim Kit |
| 51a | 703500839 | Differential Shim Kit |
| 51b | 703500839 | Differential Shim Kit |
| 52 | 705501556 | Oil Seal |
| 54 | 705501584 | Breather Tube |
| 56 | 705501724 | Plug Drain |
| 57 | 703500839 | Differential Shim Kit |
| 60 | 703500867 | Pinion Kit |
| 61 | 705501740 | NUT - Call your local BRP dealership |
| 66 | 705501749 | Oil Seal |
| 67 | 703500840 | Needle Bearing This part replaces 703500869. |
| 75 | 703500868 | Gear Kit |
| 76 | 705502276 | Oil Seal This part replaces 705501933. |
| 79 | 705502275 | Final Drive Unit This part replaces 705501958. |
| 80 | 705502063 | Screw |
| 88 | 705502171 | REAR COVER - Call your local BRP dealership |
| 89 | 705502172 | PINION COVER - Call your local BRP dealership |
