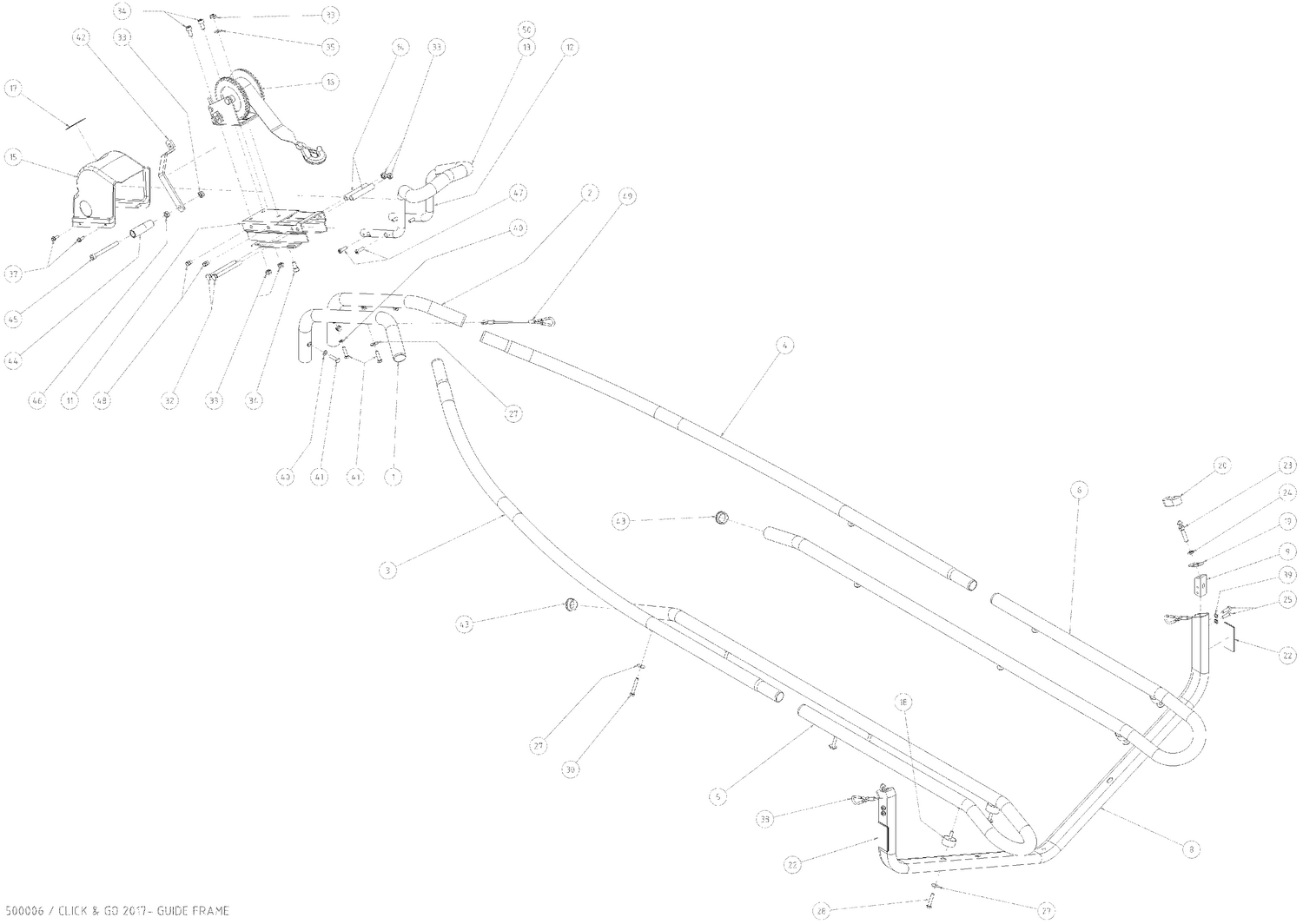

Guide Frame — Parts Catalog

Ref	Part Number	Description
1	619590457	Outer Tube [front left]
2	619590458	Outer Tube [front right]
3	619590455	Outer Tube [left]
4	619590456	Outer Tube [right]
6	619590454	Inner Tube [right]
8	619590433	Crossbeam looking FZV
9	619590441	Mounting Bracket
11	619590439	Winsch plate
12	619590435	Front guard
13	619590475	Softdock Front Guard
14	619590366	Spacer
15	619590367	Winsch Cover
16	619590368	Winch
17	516008739	BRP Logo 68mm This part replaces 516006888.
18	619590472	Rubber Buffer
19	619590442	Washer
20	619590468	Soft Washer
23	619590478	Locking Stud
24	619590517	Nut low M10
25	619590499	Torx Screw M8 x 25
27	619590503	Washer Ø8,4 / 16 / 1,6
28	619590487	Hex. Cap Screw M8 x 40
30	619590488	Hex. Cap Screw M8 x 50
32	619590372	Hex. Cap Screw M10 x 110
34	619590524	Allen screw M10 x 20 FZB
35	619590375	Washer Ø11 / 22 / 2
37	619590428	Drill screw 6,3 x 19 FZB
38	619590469	Safety Cable
39	619590507	Lockingwasher Ø8,4
41	619590486	Hex. Cap Screw M8 x 30
42	619590562	Winch Handle
43	619590483	Cap Ø 38
44	619590377	Handle
45	619590525	Allen screw M10 x 100 FZB
46	619590526	Nut M10 FZB
47	619590499	Torx Screw M8 x 25
48	619590529	Threaded Inserts Steel Open Hex. M8
49	619590527	Saftey Cable
