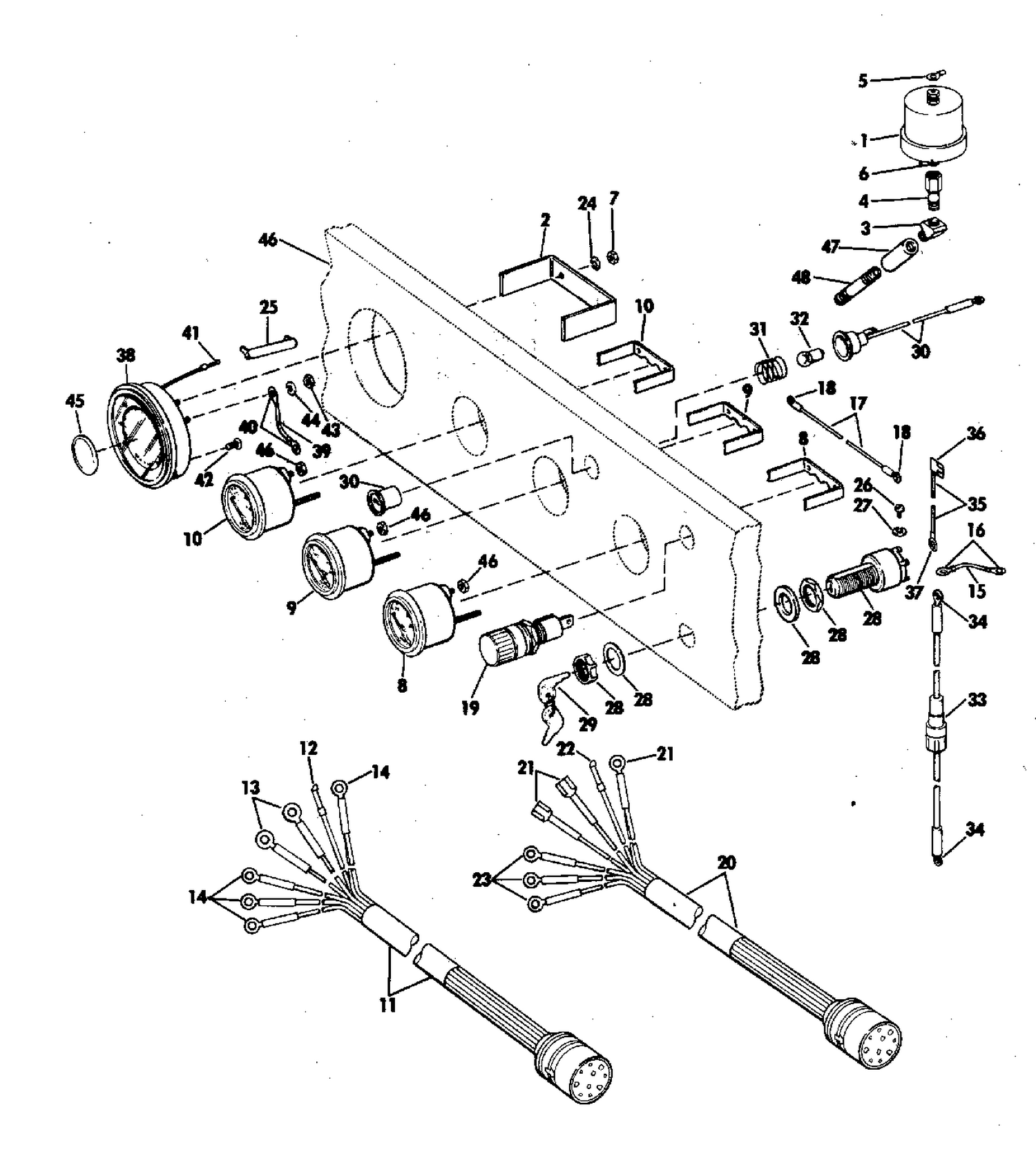

INSTRUMENT KIT ASSEMBLY RING BEZEL OPTIONAL ITEM-ALL MODELS
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3853800 | OIL PRESSURE SENDER This part replaces 0172127. |
| 2 | 0121350 | BRACKET |
| 3 | 0121687 | FITTING |
| 4 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
| 6 | 0121891 | ELBOW |
| 8 | 0172731 | GAUGE, Oil pressure |
| 9 | 0172735 | GAUGE, Water temperature |
| 10 | 0980550 | AMMETER |
| 11 | 0172433 | CABLE ASSEMBLY, On models w/oil pressure gaug e |
| 15 | 0172148 | LEAD ASSEMBLY |
| 17 | 0172149 | LEAD ASSEMBLY |
| 19 | 0172410 | FUSE HOLDE ASSEMBLY |
| 20 | 0979924 | CABLE ASSEMBLY |
| 24 | 0304642 | LOCKWASHER |
| 28 | 0386545 | IGNITION SWITCH & KEY ASSY |
| 30 | 0379852 | INDICATING LIGHT ASSY., Oil |
| 32 | 0908726 | BULB, #53R |
| 33 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 35 | 0279177 | LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 38 | 0172051 | TACHOMETER ASSEMBLY |
| 39 | 0172140 | GROUND WIRE ASSEMBLY |
| 42 | 0121354 | MOUNTING SCREW, Instrument |
| 44 | 0304642 | LOCKWASHER |
| 45 | 0121720 | BITTON,Trim |
| 47 | 0311086 | CONNECTOR, Pipe |
| 0171759 | 0171759 | CASE ASSEMBLY |
