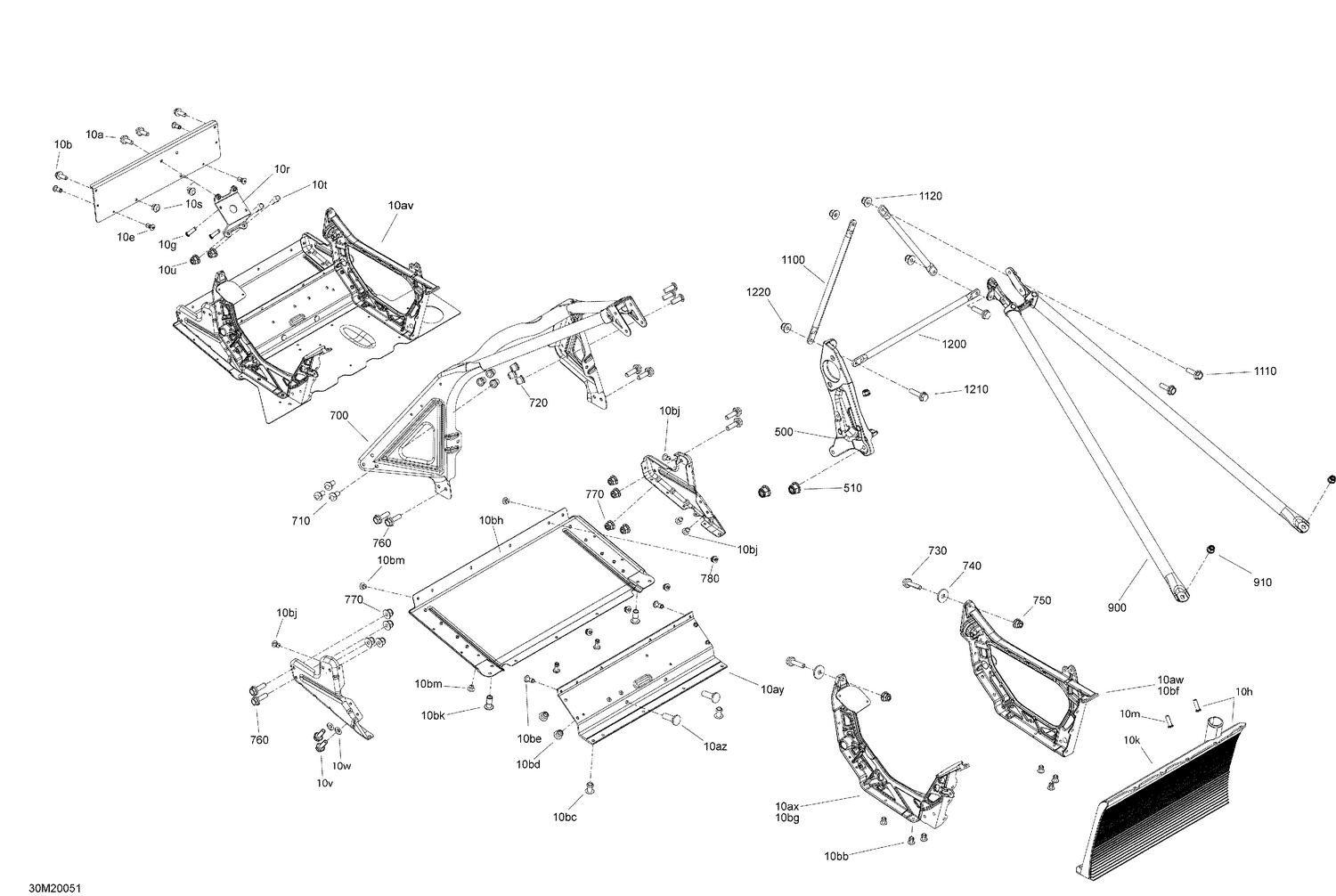

09- Frame - Front Section

Parts (44)

Ref	Part Number	Description
10a	207661644	Hex. Flange Screw M6 X 16
10aw	518326795	RH Member
10ax	518326796	LH Member
10ay	518326198	Front Member
10az	250300038	Clinch Stud
10b	210261650	Hex. Flange Screw M6 X 16
10bb	293150144	Stavex Rivet
10bc	293150120	Hemlock Rivet 6.5 mm
10bd	293150119	Hemlock Rivet, 6.5 mm
10be	293150191	Monobolt Rivet, 4.8 mm
10bf	518325949	RH Front Member
10bg	518325950	LH Front Member
10bh	518325951	Front Bottom Plate
10bj	390909100	Avex Rivet
10bk	293150182	Monobolt Rivet 6.4
10bm	390909200	Avex Rivet
10e	293150191	Monobolt Rivet, 4.8 mm
10g	250300027	Clinch Stud M6 X 20
10k	518326485	Front Radiator This part replaces 518326486.
10m	250300027	Clinch Stud M6 X 20
10r	518325943	MAG Engine Support
10s	293150096	Hemlock Rivet, 6.5 mm
10t	250000512	Socket Screw Head 1/4-20 X 5/8''
10u	250100140	Elastic Hex. Flange Nut 1/4-20
10v	210261040	Hex. Flange Screw M6 X 10
10w	234061410	Flat Washer 6 mm
500	518327460	Driven Pulley Support This part replaces 518327133.
510	233281414	Hex. Flange Elastic Nut M8
700	518328306	Front Member, S Module
710	293150148	Rivet Magna-Grip 6,4 X 50,8
720	293150149	Collar Huck Magna-Grip 6.4
730	207662544	Hex. Flange Screw M6 X 25
740	224061201	Flat Washer
750	233261414	Hex. Flange Elastic Nut M6 x 1.0
760	207662044	Hex. Flange Screw M6 X 20
770	233261414	Hex. Flange Elastic Nut M6 x 1.0
780	390402200	Pop Rivet 3/16"
900	518326559	Rear Member
910	233281414	Hex. Flange Elastic Nut M8
1100	518325114	Upper Lateral Column Support
1110	207662044	Hex. Flange Screw M6 X 20
1120	233261416	Elastic Flange Nut M6 X 1.0
1200	518325115	Center Column Support
1210	207662544	Hex. Flange Screw M6 X 25
