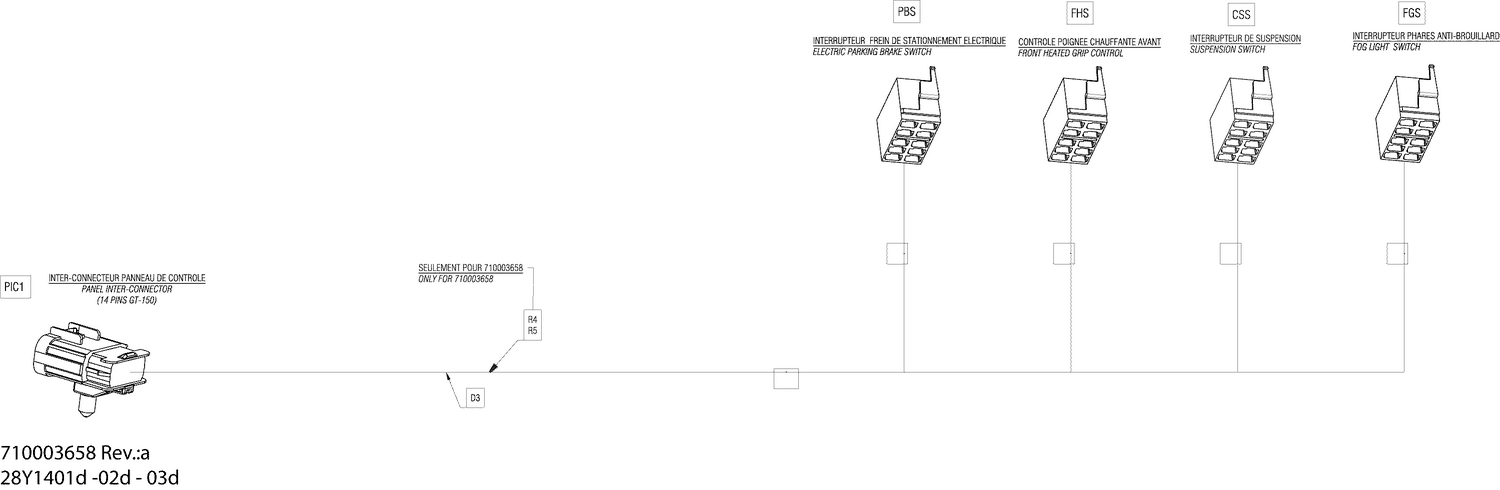

10- Electrical Harness Switch_28Y1403d
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| CSS | 710002000 | Housing |
| CSS | 710003047 | Terminal |
| D3 | 710002209 | Diode |
| FGS | 710002000 | Housing |
| FGS | 710003047 | Terminal |
| FGS | 710003048 | Terminal |
| FHS | 710002000 | Housing |
| FHS | 710003047 | Terminal |
| PBS | 710002000 | Housing |
| PBS | 710003047 | Terminal |
| PIC1 | 710001223 | Terminal |
| PIC1 | 710001224 | Terminal |
| PIC1 | 710001225 | Cap |
| PIC1 | 710001233 | Seal |
| PIC1 | 710001332 | Seal Wire |
| PIC1 | 710001944 | Housing |
| PIC1 | 710002006 | Holder |
| R4 | 710001587 | Resistor |
| 1 | 710004763 | WIRING HARNESS_SWITCH - Call your local BRP dealership This part replaces 710003658. |
