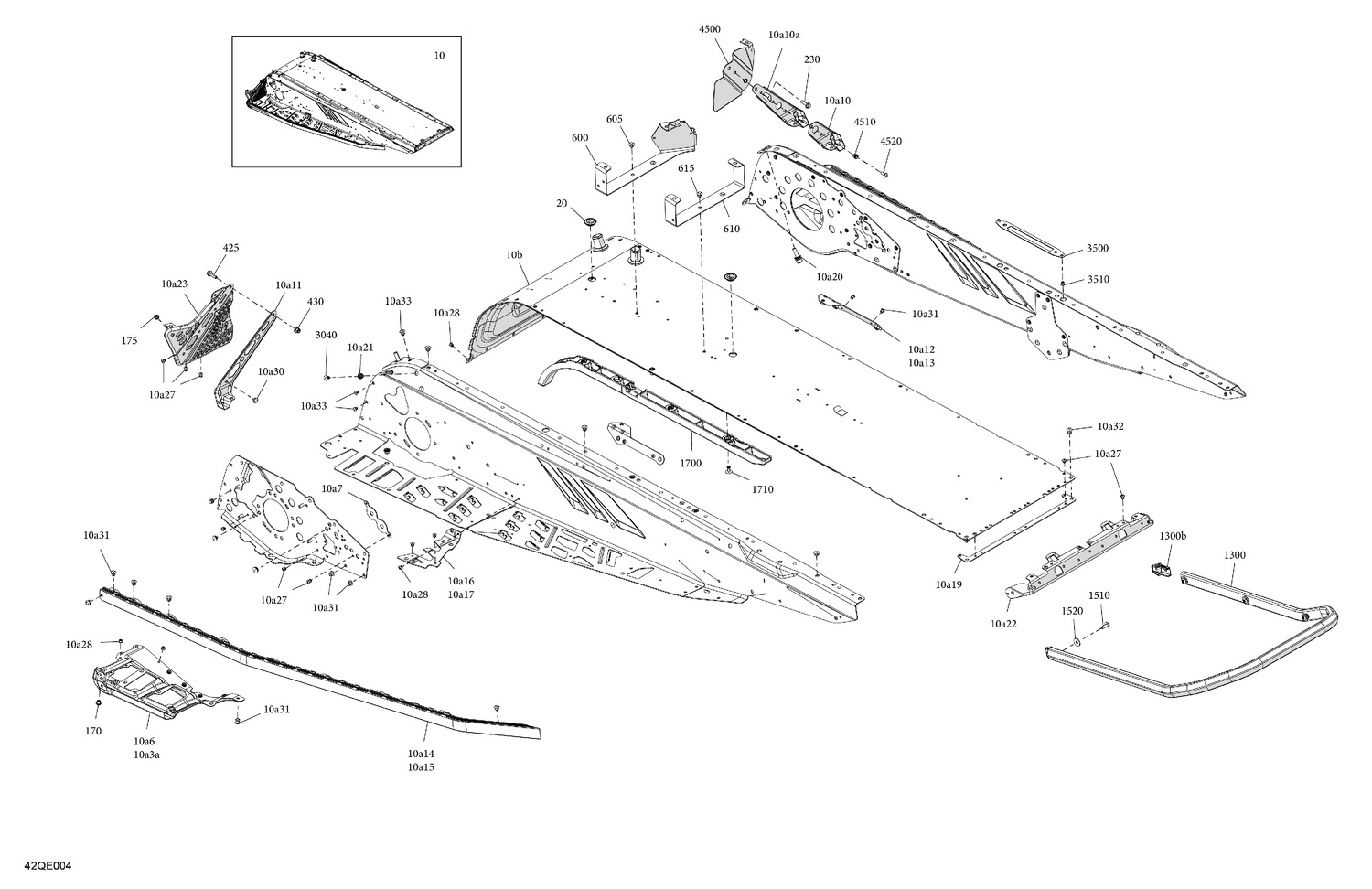

| Ref | Part Number | Description |
|---|
| 10a10 |
518335978 |
RH Stirrup Reinforcement |
| 10a11 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a12 |
518330299 |
LH Member Fixation Plate |
| 10a13 |
518331745 |
RH Under Chassis Reinforcement |
| 10a14 |
518328451 |
RH Roller |
| 10a15 |
518328452 |
LH Roller |
| 10a16 |
518332296 |
LH Footrest Reinforcement |
| 10a17 |
518332297 |
RH Footrest Reinforcement |
| 10a19 |
518331532 |
Spacer |
| 10a20 |
250300652 |
Protruding Stud M8 x 22 |
| 10a21 |
605636003 |
Clinch Nut M6 Hexsert |
| 10a22 |
518328990 |
Rear Cap |
| 10a23 |
518333858 |
LH Footrest |
| 10a27 |
390909100 |
Avex Rivet |
| 10a28 |
390909200 |
Avex Rivet |
| 10a30 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a31 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a32 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a33 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a3a |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10a6 |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10a7 |
518327233 |
Front Suspension Arm Reinforcement |
| 10b |
518335615 |
Radiator Tunnel 129 Ass'y |
| 20 |
293730052 |
Black, Plug |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 175 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 600 |
518334262 |
Front Battery Charger Support |
| 605 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 610 |
518334779 |
Rear Battery Charger Support |
| 615 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 1300b |
520001612 |
Cap |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3040 |
293730079 |
Dart |
| 3500 |
518334925 |
Seat Anchorage |
| 3510 |
293150203 |
Rivet Avibulb 3/16 |
| 4500 |
518335989 |
Bright White, RH Footrest |
| 4510 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
