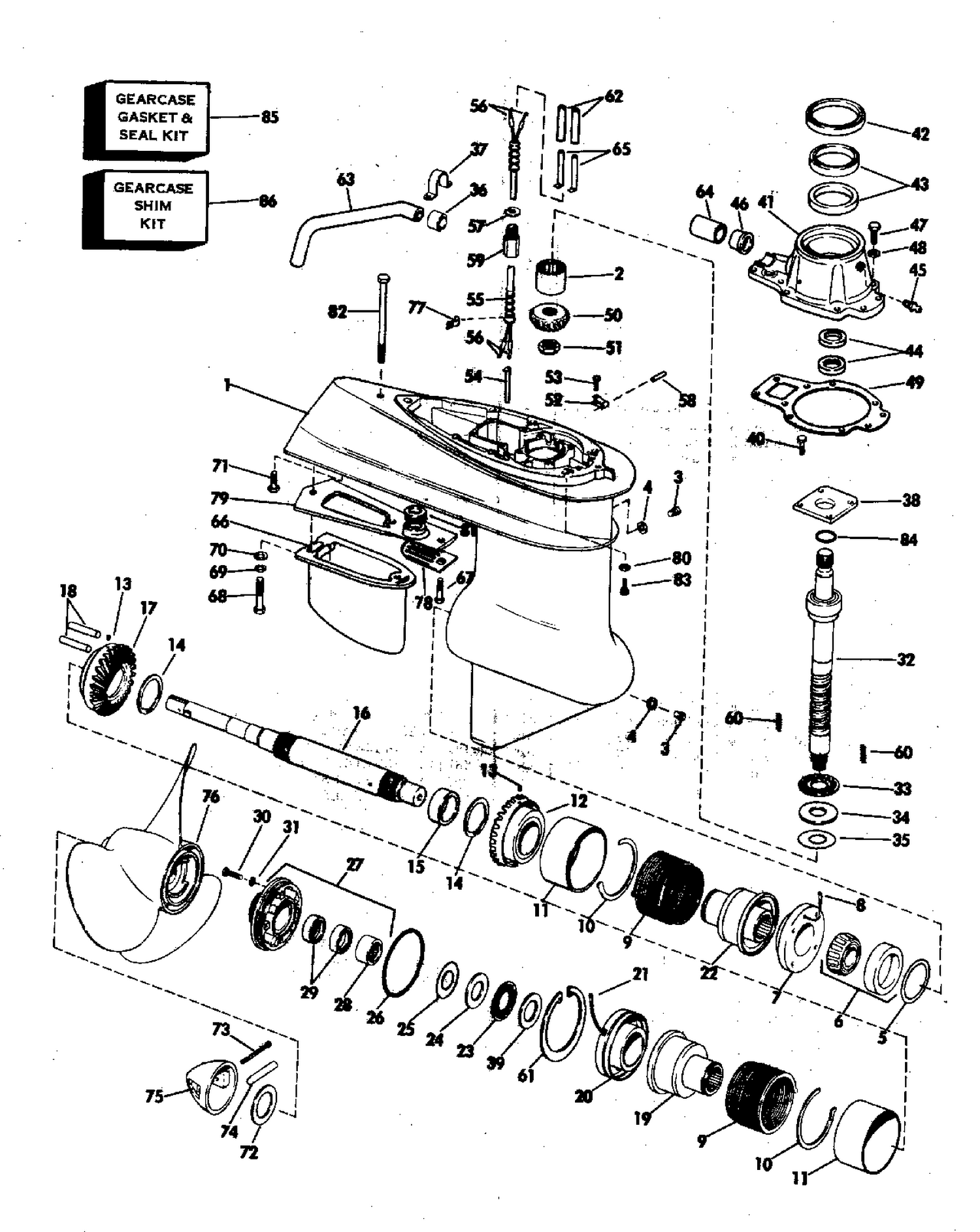

| Ref | Part Number | Description |
|---|
| 1 |
0382383 |
GEARCASE & BEARING ASSEMBLY |
| 2 |
0380439 |
ROLLER BEARING, Drive shaft |
| 5 |
0313292 |
SHIM, Bearing to gearcase, .002" |
| 5 |
0313293 |
SHIM, Bearing to gearcase, .003" |
| 5 |
0313294 |
SHIM, Bearing to gearcase, .004" |
| 5 |
0313295 |
SHIM, Bearing to gearcase, .005" |
| 5 |
0313296 |
SHIM, Bearing to gearcase, .006" |
| 5 |
0313297 |
SHIM, Bearing to gearcase, .007" |
| 6 |
0379503 |
BEARING ASSY, Prop shaft |
| 7 |
0382366 |
COIL & LEAD, Front |
| 9 |
0313455 |
SPRING, Clutch hub |
| 10 |
0310428 |
SPACER |
| 11 |
0315034 |
SLEEVE, Spring |
| 12 |
0382270 |
GEAR & BUSHING, Forward |
| 13 |
0311944 |
SET SCREW |
| 14 |
0312007 |
RETAINING RING |
| 15 |
0313310 |
SPACER, Propeller shaft |
| 16 |
0382337 |
PROPELLER SHAFT |
| 17 |
0313311 |
GEAR, Reverse |
| 18 |
0381025 |
NEEDLE BEARING SET |
| 19 |
0382336 |
CLUTCH HUB & RETAINER, Reverse |
| 20 |
0382367 |
COIL & LEAD, Rear |
| 22 |
0382334 |
CLUTCH HUB ADDY.,Forward |
| 23 |
0378262 |
BEARING, Thrust, pinion |
| 24 |
0307836 |
THRUST WASHER |
| 25 |
0313192 |
SHI,Thrust washer,.002" |
| 25 |
0313193 |
SHIM BRG.TO PINION,.003" |
| 25 |
0313194 |
PINION,.005" |
| 25 |
0313195 |
SHIM, Bearing to pinion , .005" |
| 25 |
0313196 |
SHIM, Bearing to pinion .006" |
| 25 |
0313197 |
SHIM, Bearing to pinion 0.007 inch |
| 25 |
0313198 |
SHIM, Bearing to pinion 0.008 inch |
| 25 |
0313199 |
SHIM, Bearing to pinion 0.009 inch |
| 25 |
0313200 |
SHIM, Bearing to pinion 0.010 inch |
| 26 |
0310414 |
O-RING, Gearcase head |
| 27 |
0381849 |
GEARCASE HEAD ASSY |
| 30 |
0310412 |
SCREW, Gearcase head |
| 31 |
0307853 |
O RING |
| 32 |
0980097 |
DRIVESHAFT ASSY |
| 33 |
0386719 |
THRUST BEARING, Rev gear This part replaces 0382257. |
| 34 |
0313259 |
THRUST WASHER |
| 35 |
0313192 |
SHI,Thrust washer,.002" |
| 35 |
0313193 |
SHIM BRG.TO PINION,.003" |
| 35 |
0313194 |
PINION,.005" |
| 35 |
0313195 |
SHIM, Bearing to pinion , .005" |
| 35 |
0313196 |
SHIM, Bearing to pinion .006" |
| 35 |
0313197 |
SHIM, Bearing to pinion 0.007 inch |
| 35 |
0313198 |
SHIM, Bearing to pinion 0.008 inch |
| 35 |
0313199 |
SHIM, Bearing to pinion 0.009 inch |
| 36 |
0310488 |
BISHING,Water tube |
| 37 |
0313729 |
CLAMP, Bushing |
| 38 |
0313309 |
PLATE, Bearing |
| 39 |
0310413 |
THRUST WASHER |
| 40 |
0553556 |
SCREW, Housing to cylinder |
| 41 |
0980014 |
SWIVEL BEARING ASSY |
| 46 |
0908594 |
GROMMET, Swivel brg retainer |
| 47 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 49 |
0313368 |
GASKET |
| 50 |
0313258 |
PINION GEAR |
| 51 |
0907866 |
LOCKNUT |
| 52 |
0510267 |
CLAMP, Coil lead to gearcase |
| 55 |
0379628 |
CABLE, Shift |
| 57 |
0310645 |
RETAINER, Cable |
| 58 |
0313929 |
SLEEVE, Coil lead, forward |
| 59 |
0310644 |
TUBE, Shift cable |
| 61 |
0310416 |
RETAINING RING |
| 62 |
0908967 |
TUBING |
| 63 |
0908228 |
WATER TUBE, Intake |
| 64 |
0908889 |
SPACER, Water tube |
| 66 |
0908226 |
RUDDER |
| 67 |
0310477 |
SCREW, Plate |
| 68 |
0552898 |
SCR,Grc to hsg,short |
| 69 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 72 |
0310594 |
THRUST WASHER |
| 73 |
0310595 |
COTTER PIN |
| 74 |
0310956 |
DRIVE PIN |
| 75 |
0379798 |
PROPELLER NUT |
| 76 |
0172490 |
PROPELLER, 14 x 13 - SST |
| 76 |
0172491 |
PEOPELLER, 14 x 15 - sst |
| 76 |
0172492 |
PROPELLER, 14 x 17 - SST |
| 76 |
0172493 |
PROPELLER 14 X 19 - SST |
| 76 |
0381185 |
PROPELLER, 14 x 14 |
| 76 |
0381186 |
PROPELLER, 14 x 16 |
| 76 |
0381187 |
PROPELLER, 14 x 18 |
| 76 |
0381296 |
PROPELLER, 14-1/4 x 10 |
| 76 |
0382017 |
PROPELLER, 14 x 12 |
| 76 |
0382676 |
P{ROPELLER, 14 x 11 |
| 76 |
0383287 |
PROPELLER, 14 x 20 |
| 77 |
0302647 |
CLAMP |
| 78 |
0909018 |
SCREEN,Water Intake |
| 79 |
0909016 |
PLATE,Rudder to gearcase |
| 81 |
0909019 |
GROMMET,Water tube |
| 82 |
0908702 |
SCREW, Rudder pivot |
| 83 |
0306503 |
SCREW, Short |
| 84 |
0314491 |
O RING |
| 85 |
0981797 |
GEARCASE GASKET & SEAL KIT |
| 0980668 |
0980668 |
GEARCASE ASSY, Complete |
