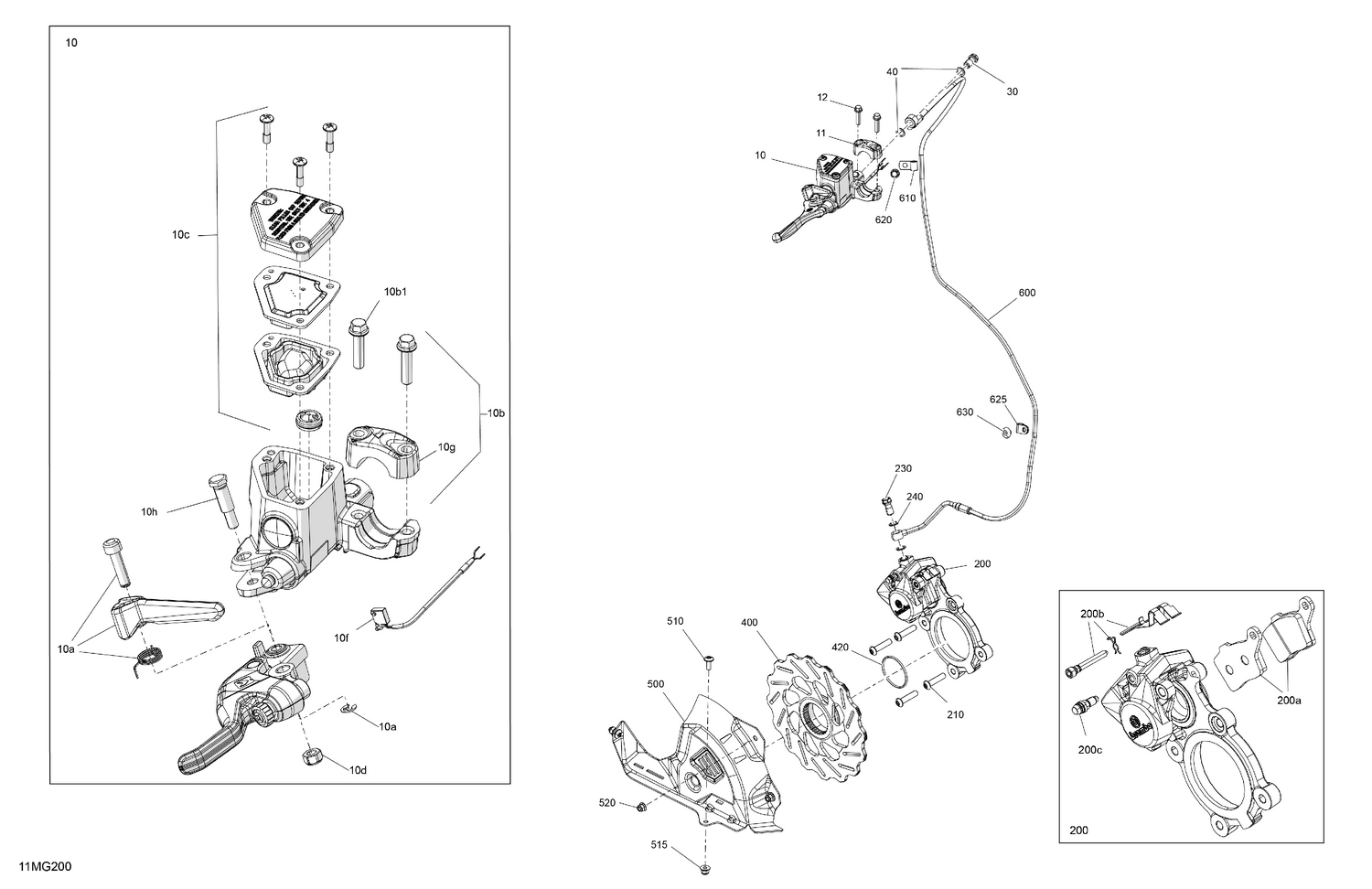

03- Mechanic - Brakes
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032745 | Hand Brake Lever Ass'y |
| 10b1 | 229000652 | Hex Flange Screw M6 X 25 |
| 10c | 507032737 | Reservoir Cover Kit |
| 10d | 507032743 | Nut |
| 10f | 507032738 | Micro Switch |
| 10g | 507032761 | Mounting Clamp |
| 10h | 415030000 | Pin Ass'y |
| 11 | 507032761 | Mounting Clamp |
| 12 | 229000932 | Hex Flanged Screw M6 X 30 |
| 30 | 507032783 | Bolt |
| 40 | 414920600 | Washer |
| 200a | 507032473 | Brake Pads Kit |
| 200b | 507032722 | Brake Spring Kit |
| 200c | 507032475 | Bleeder |
| 210 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 230 | 507032783 | Bolt |
| 240 | 414920600 | Washer |
| 400 | 507032554 | Disk |
| 420 | 293300221 | O Ring |
| 500 | 507032771 | Deep Black, Brake Disc Guard |
| 510 | 250000717 | Torx Head Screw M6 X 16 |
| 515 | 233261466 | Hex. Flange Elastic Nut M6 |
| 520 | 233261466 | Hex. Flange Elastic Nut M6 |
| 600 | 507032655 | Brake Hose |
| 610 | 414108400 | Open Clamp |
| 620 | 210261040 | Hex. Flange Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
