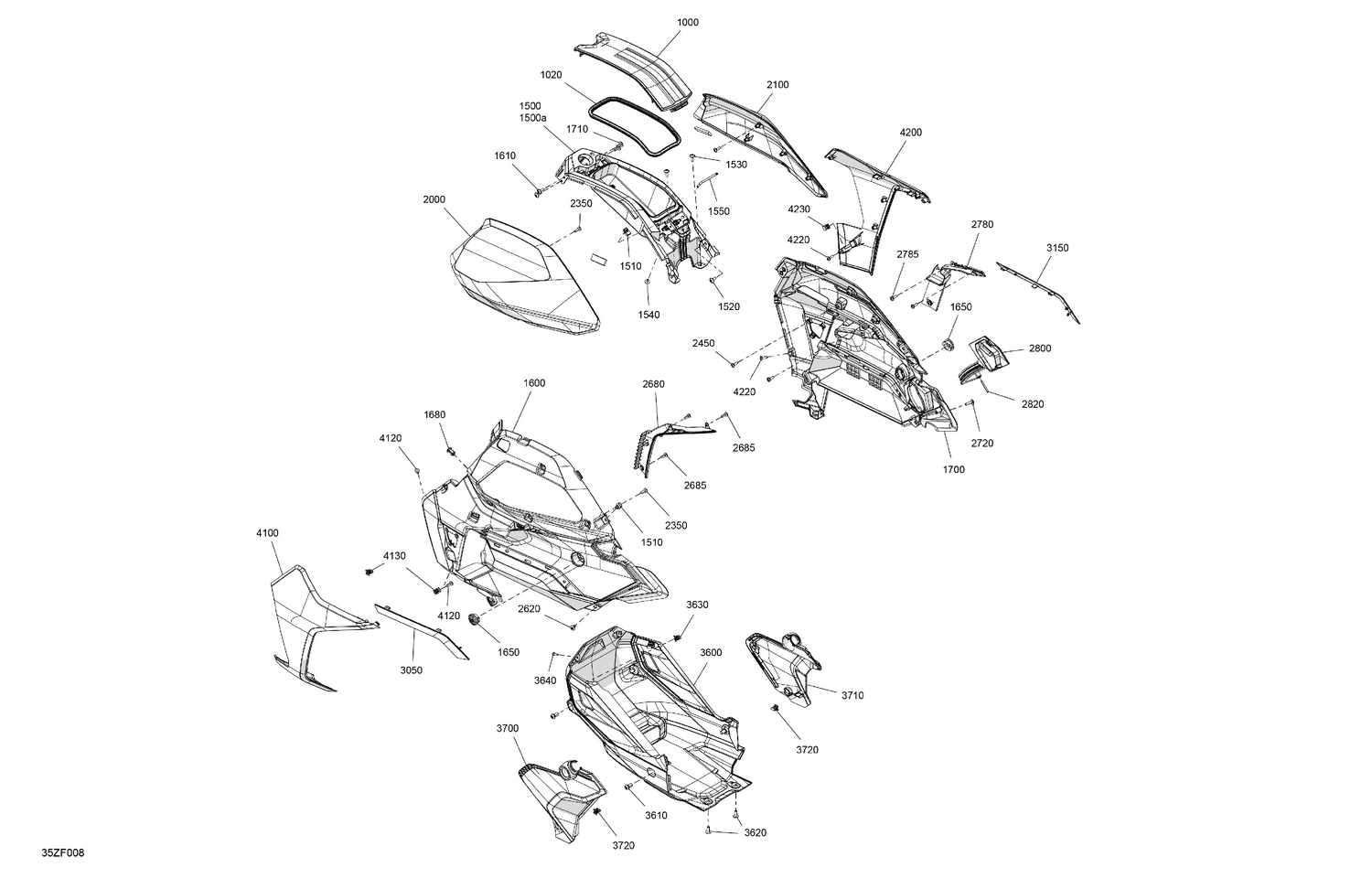

07- Body - System
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 705015875 | Box Cover |
| 1020 | 708200794 | Neoprene Seal Joint |
| 1500a | 705017438 | Central Fairing |
| 1510 | 250100209 | Spring Nut U M5 X 0.8 |
| 1520 | 250001357 | Truss Torx Screw M5 X 16 |
| 1530 | 250001357 | Truss Torx Screw M5 X 16 |
| 1540 | 250000805 | Plastite Screw M4 X 10 |
| 1550 | 705018710 | Wrench |
| 1600 | 705018386 | LH Central Fairing |
| 1610 | 250001357 | Truss Torx Screw M5 X 16 |
| 1650 | 705018450 | Quarter Turn Fastener |
| 1680 | 293150230 | Tuflok Plastic Rivet |
| 1700 | 705018387 | RH Central Fairing |
| 1710 | 250001357 | Truss Torx Screw M5 X 16 |
| 2000 | 705018308 | Sterling Silver Satin, LH Fairing |
| 2100 | 705018309 | Sterling Silver Satin, RH Fairing |
| 2350 | 250000720 | Torx Screw K50 X 16 |
| 2450 | 250000720 | Torx Screw K50 X 16 |
| 2620 | 250000947 | Torx-Truss M/S Nylon Patch M5X12 |
| 2680 | 705017898 | LH Air Deflector |
| 2685 | 250000720 | Torx Screw K50 X 16 |
| 2720 | 250001357 | Truss Torx Screw M5 X 16 |
| 2780 | 705017899 | RH Air Deflector |
| 2785 | 250000720 | Torx Screw K50 X 16 |
| 2800 | 705017701 | Charging Hatch |
| 2820 | 705003750 | Pin |
| 3050 | 705017896 | Deep Black, LH Lower Panel Trim |
| 3150 | 705017897 | Deep Black, RH Lower Panel Trim |
| 3600 | 705017986 | Skid Plate |
| 3610 | 250013011 | Shoulder Screw M8 X 16 |
| 3620 | 250000534 | Tork Screw M6 X 16 |
| 3630 | 517302785 | Edge Clip |
| 3640 | 250000759 | Torx Truss Pt K40 X 16 |
| 3700 | 705017680 | LH Lower Panel |
| 3710 | 705017686 | RH Lower Panel |
| 3720 | 517302785 | Edge Clip |
| 4100 | 705018336 | Deep Black, LH Radiator Trim |
| 4120 | 250000720 | Torx Screw K50 X 16 |
| 4130 | 517302785 | Edge Clip |
| 4200 | 705018337 | Deep Black, RH Radiator Trim |
| 4220 | 250000720 | Torx Screw K50 X 16 |
