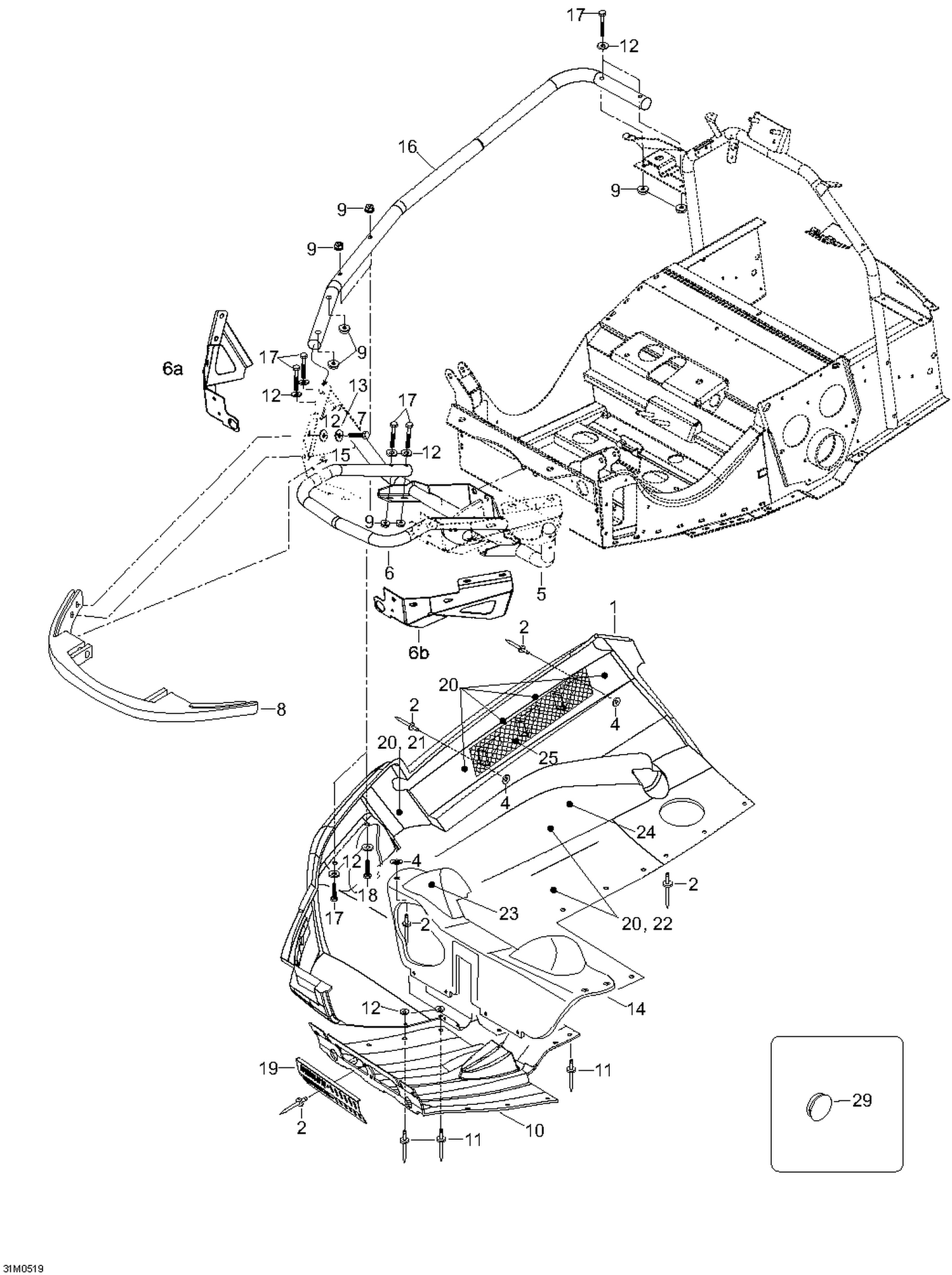

| Ref | Part Number | Description |
|---|
| 1 |
605149805 |
LH Boyyom Pan |
| 1 |
605152528 |
RH BOTTOM PAN - Call your local BRP dealership |
| 2 |
36037 |
Black Rivet This part replaces M36037. |
| 3 |
36108 |
Rivet This part replaces M36083. |
| 4 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 5 |
605350850 |
Bumper Support |
| 6 |
605351509 |
BUMPER FRONT - Call your local BRP dealership |
| 6a |
605250848 |
RH Bumper Support |
| 6b |
605250847 |
LH Bumper Support |
| 7 |
207161644 |
Hex. Screw M6 X 16 |
| 8 |
502006719 |
Bumper, Black |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 10 |
605152620 |
BOTTOM PAN, MIDDLE - Call your local BRP dealership |
| 11 |
M36072 |
RIVET - Call your local BRP dealership |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 13 |
234161471 |
Lock Washer M6, Black |
| 14 |
605252529 |
Cover |
| 15 |
232561414 |
Elastic Stop Nut M6 |
| 16 |
605152371 |
SIDE BUMPER - Call your local BRP dealership |
| 17 |
207064044 |
Hex. Screw M6 X 40 |
| 18 |
M40084 |
SCREW M6 X 45 - Call your local BRP dealership |
| 19 |
605252655 |
Plate |
| 20 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001. |
| 21 |
605351212 |
Heat Protection Tap |
| 22 |
605351213 |
Heat Protection Tap |
| 23 |
605351214 |
Heat Protection Tap |
| 24 |
605351367 |
L.h Acoustic Foam |
| 25 |
605352541 |
GRILL - Call your local BRP dealership |
| 26 |
605451560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 27 |
605451561 |
HEAT PROTECTOR - Call your local BRP dealership |
| 28 |
605451562 |
Heat Protector |
