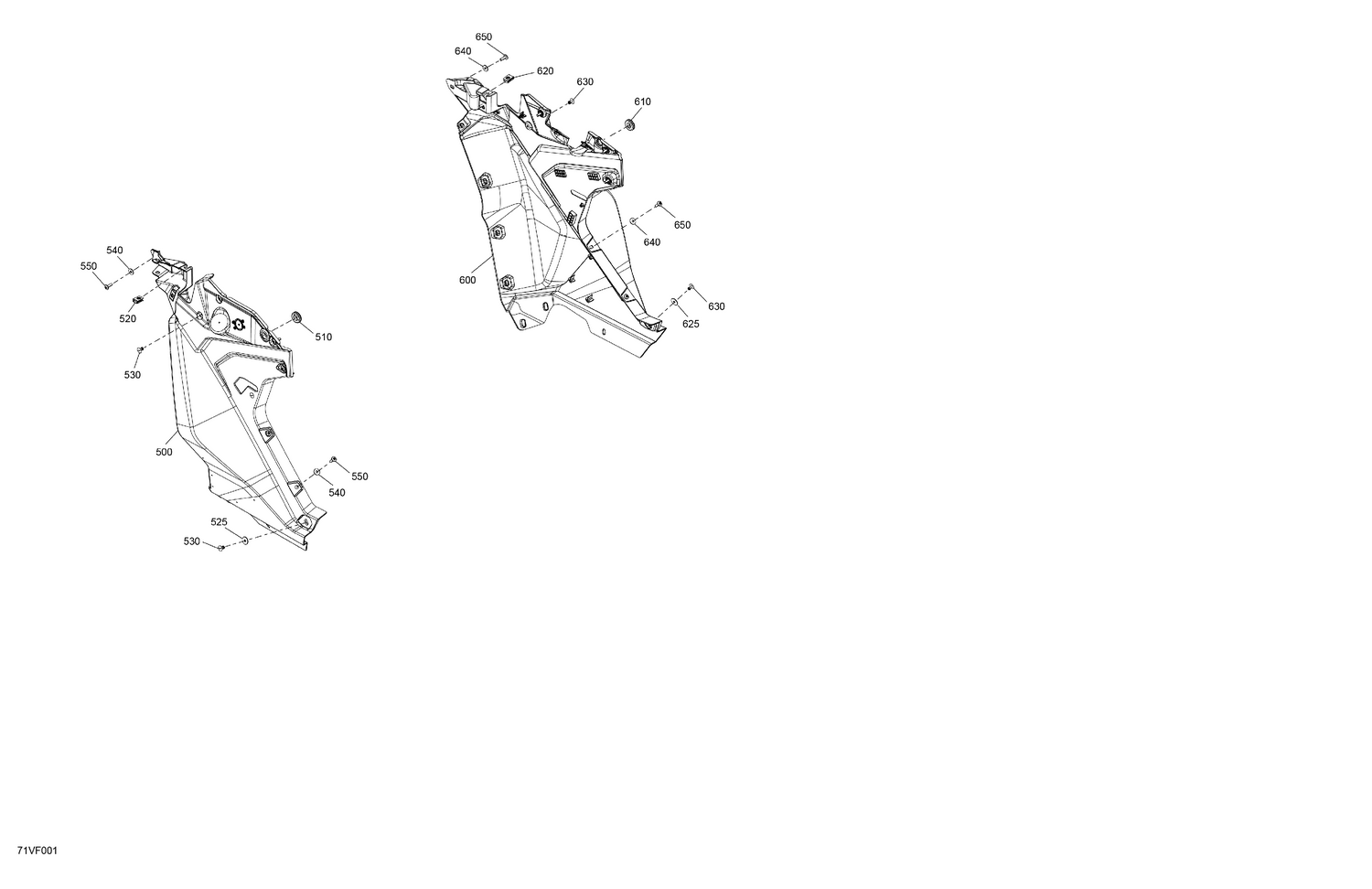

07- Body - Front Section
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 705015962 | LH Front Mud Guard |
| 510 | 517309511 | Insulating Washer |
| 520 | 250100208 | Panel Nut M6 X 1.0 |
| 525 | 250200162 | Flat Washer M6.6 X 22 |
| 530 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250000722 | Torx Screw M6 X 20 |
| 600 | 705015963 | RH Front Mud Guard |
| 600 | 715010024 | RH Mud Guard Ass'y |
| 610 | 517309511 | Insulating Washer |
| 620 | 250100208 | Panel Nut M6 X 1.0 |
| 625 | 250200162 | Flat Washer M6.6 X 22 |
| 630 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 640 | 234062670 | Stainless Steel Flat Washer |
