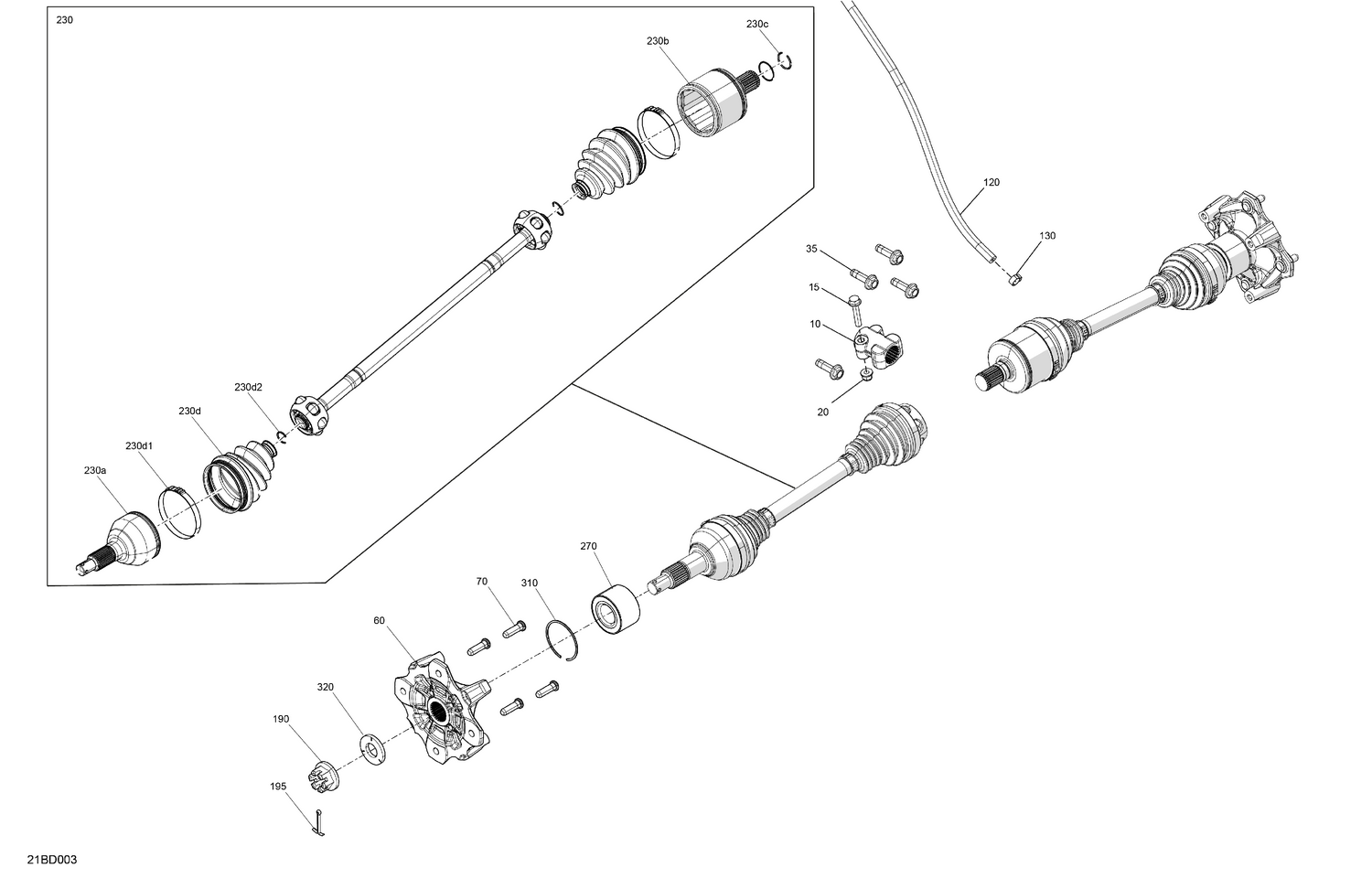

04- Drive - Rear - Common Parts
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 250001050 | Hex. Flange Screw M8 X 42 |
| 20 | 233281416 | Hex. Elastic Flange Nut M8 |
| 35 | 250001080 | Screw-Hex.Flange M10 X 35 S.Grip |
| 70 | 250300055 | Wheel Stud M10 X 1.25 |
| 130 | 293650042 | Oetiker Clamp |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 230a | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 230b | 715900444 | Plunging Joint |
| 230c | 705501781 | Circlip |
| 230d1 | 715900241 | Oetiker Clamp, 82.1 mm |
| 230d2 | 715900242 | Oetiker Clamp, 27.3 mm |
| 270 | 293350150 | Ball Bearing |
| 310 | 293370019 | Circlip |
